WiFi Controlled Desk Lamp

This is remix of Twisted WiFi Controlled Desk Lamp.

Source files and PCB design can be found here: https://github.com/stanoba/wifi-desk-lamp

PCB in this project could be used in two ways:

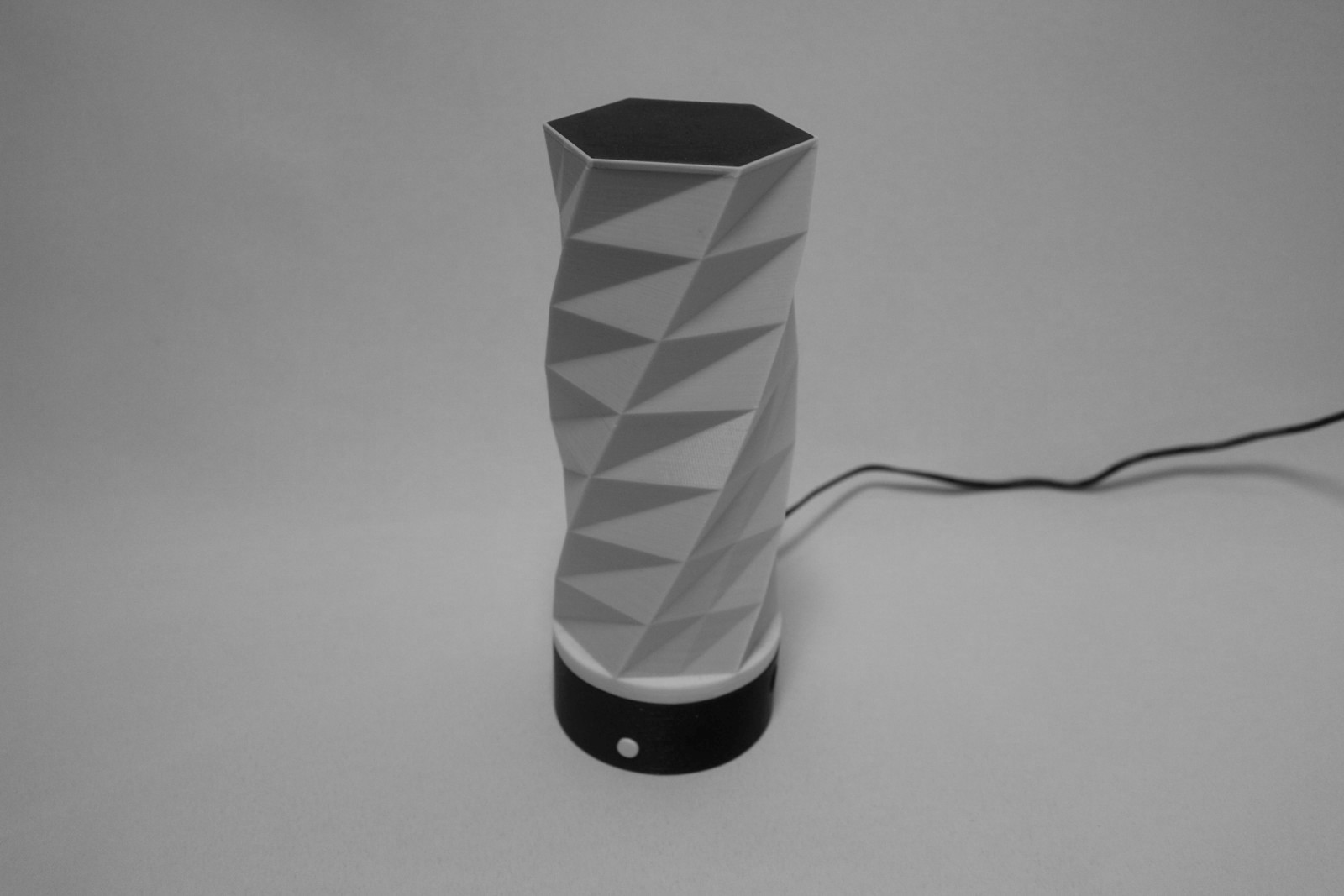

1. WiFi Controlled Desk Lamp


BoM:

• 1x WiFi_Controlled_Desk_Lamp_Base.stl
• 1x WiFi_Controlled_Desk_Lamp_Button.stl
• 1x WiFi_Controlled_Desk_Lamp_Core.stl
• 1x WiFi_Controlled_Desk_Lamp_Twisted_Hull.stl
• 1x WiFi_Controlled_Desk_Lamp_Twisted_Top.stl
• 1x Completed PCB info
• 1x Wemos D1 mini
• 8x 170 mm LED strip WS2812B (80 LEDs total)
• 1x 5V power adapter
• 4x screws 3 x 5 mm
• 4x screws 3 x 13 mm

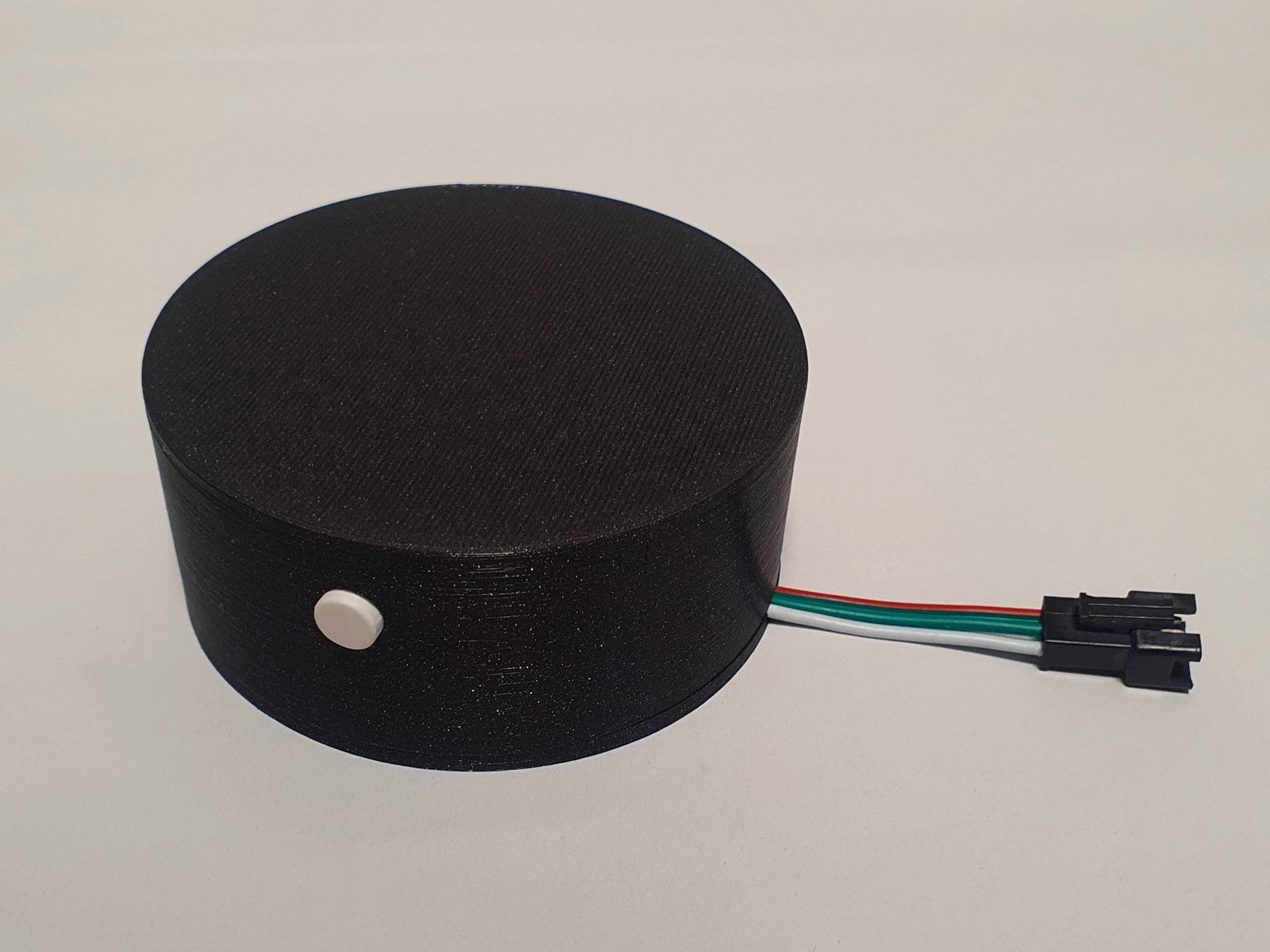

2. LED stripe WiFi Controller (Puck)


BoM:

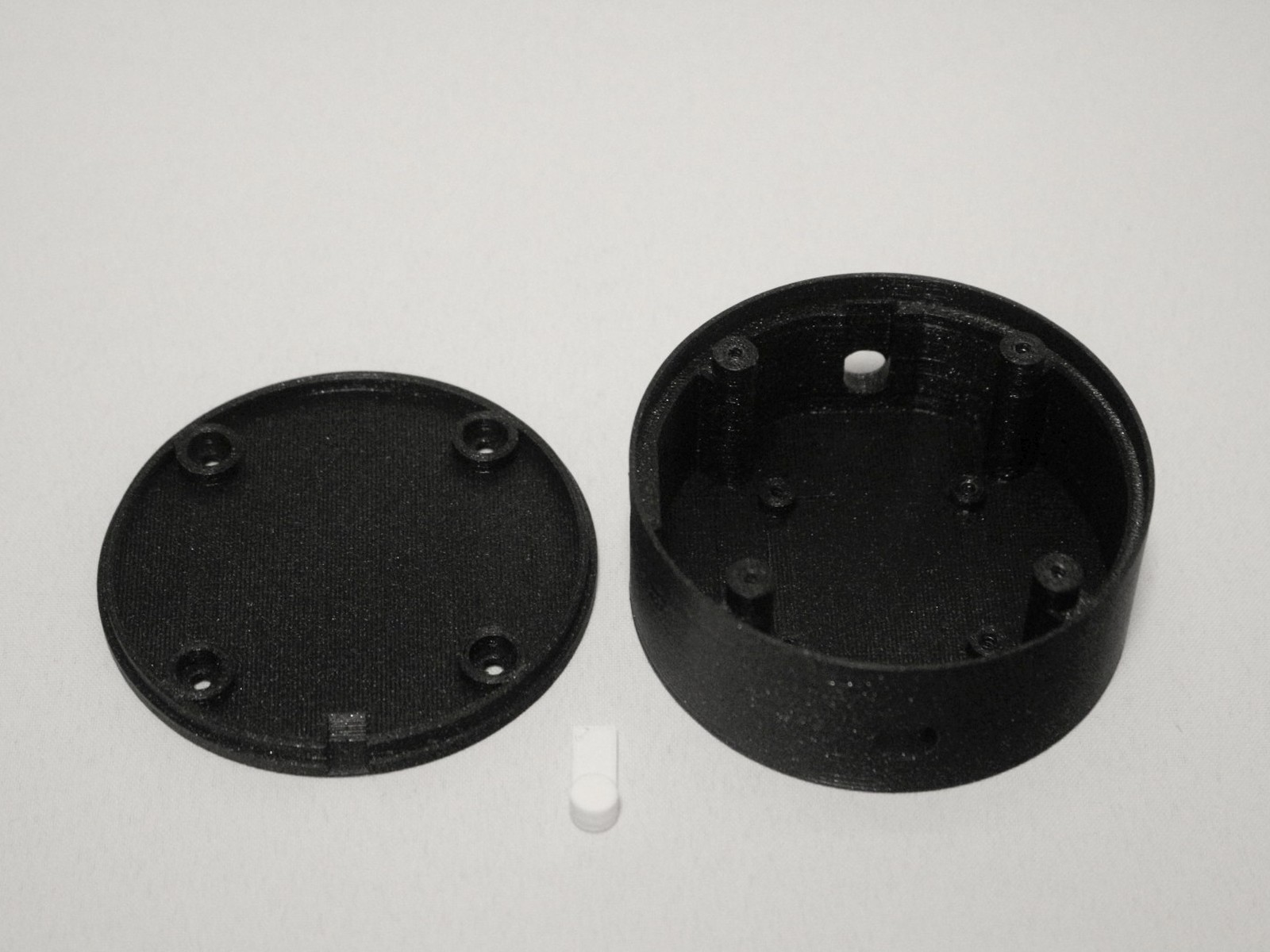

• 1x WiFi_Controlled_Desk_Lamp_Base.stl
• 1x WiFi_Controlled_Desk_Lamp_Button.stl
• 1x WiFi_Controlled_Desk_Lamp_Top_Cover.stl
• 1x Completed PCB info
• 1x Wemos D1 mini
• 1x LED strip WS2812B (based on your needs)
• 1x 5V power adapter
• 4x screws 3 x 5 mm
• 4x screws 3 x 13 mm

Print instructions

Rafts: No
Supports: No
Resolution: 0.2
Infill: 100%
Filament: Prusament PLA
