MGN9 MGN12 block/carriage disassembly helpers with stop

MGN9 MGN12 block/carriage disassembly helpers with a feature at one end to prevent the carriage from falling off.
61
415
8
1117
updated June 4, 2023

Description

PDF

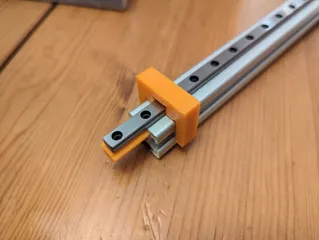

A remix that adds a stop to one end of the rail. So the carriage can only be removed from one end, and will not fall off the other.

Print on their side, as per the original.

I found the MGN9 rail was slightly too loose, and the MGN12 was slightly too tight, so you may want to scale them as appropriate for your printer and carriages. For me, they worked “as is” on my no-name carriages (but if I were printing them again I'd probably scale the mgn9 to something like 101%-102% as I prefer the tighter fit).
