Tape holder for 3M tape – fully parametric

This is a tape holder/container for a roll of 3M double-sided tape (1 inch wide, 15.4 feet long). The dimensions provided here are only what works for me for a specific roll of tape (this one).

Do not assume these values will work for any roll of tape! They work for this one specific roll I have, but the model is parametric for a reason, you need to take at least some basic measurements and adjust the user parameters in the .f3d file before exporting it for a print.

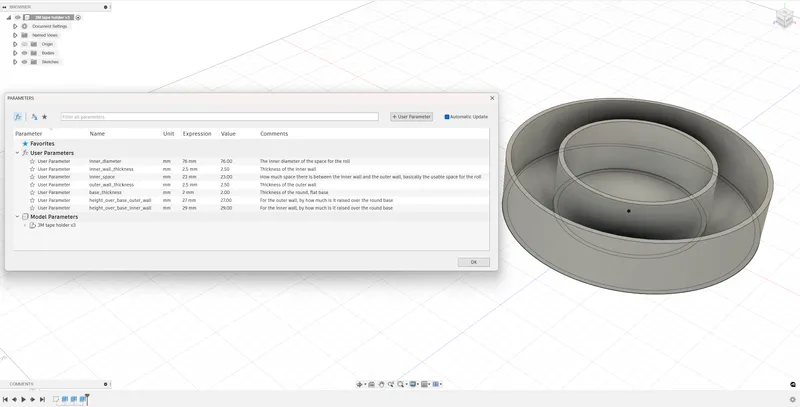

You can customize the values of every single dimension of this object using Fusion 360, by editing the User Parameters for the model:

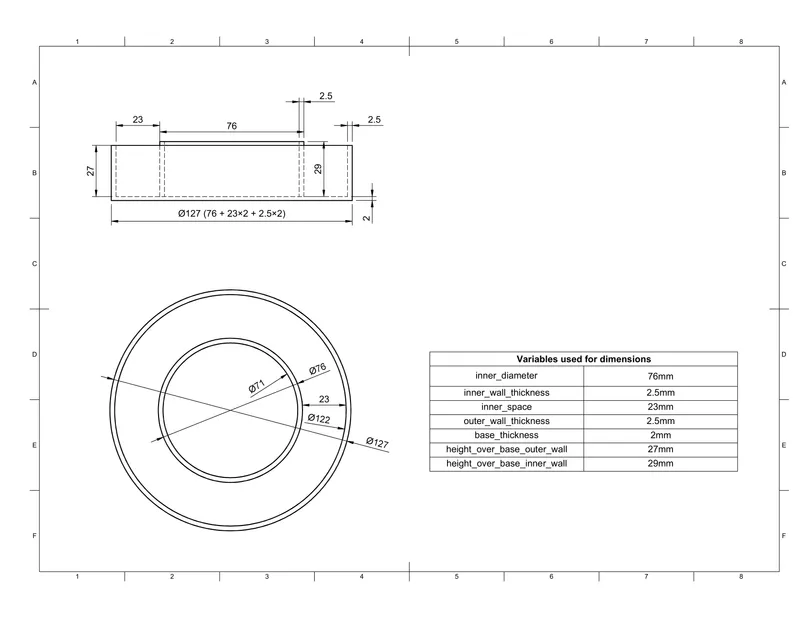

Here is a “schematic” view showing the dimensions:
