3D Printed Cable Shroud

3D Printed Cable Shroud

This thing is a simple two-part cable shroud that allows the user to hide their cables within the cover and thus make the wires look neater. The shroud is about 200mm long and has 15mm spacings so can fit the majority of wires. The cover clips on with minimal pressure and holds on without slipping off or extra bolts. This design is used for my standing desk so that all the cables are kept neatly attached to the underside of my desk.

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Resolution:

0.4mm

Infill:

15%

Filament:

Prima Value PLA Green

Notes:

For best results, it's best to print with supports entirely on so that the overhangs print perfectly for the cover.

Technical Drawing

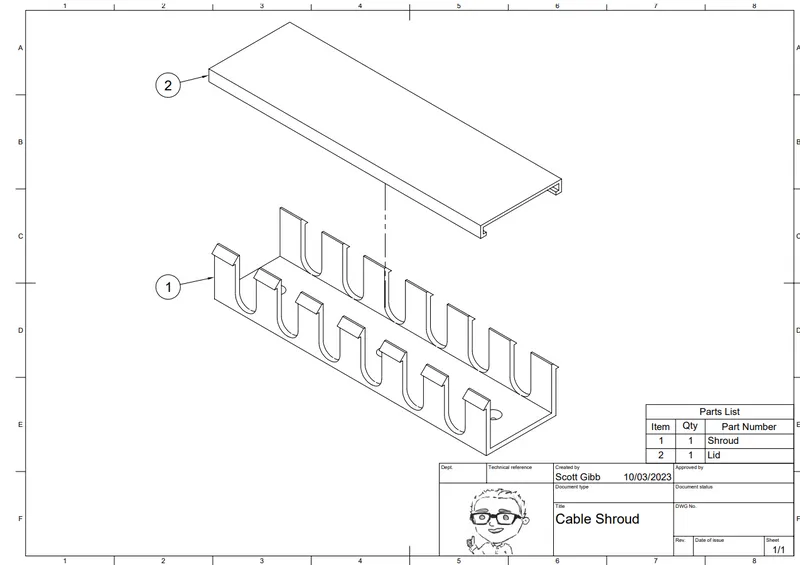

Exploded View
