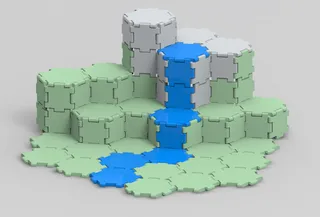

clip tile with spring design

Based on my original model of the cip tile...
This design should work with any type of material and extrusion factors.

Is it overdesigned?

   For sure…

Is the spring design necessary on both conector sides?

   No, but i like the symmetry of the pattern and it ensures the function with stiff material

Enjoy and share your feedback.

Update 28.05

light and heavy fit designs added (thickness of the spring arm)

2nd Update 28.05

medium fit design added (thickness of the spring arm)

Update 03.06

My apologies to everybody who got confused. I somehow messed up the file upload all previous file have been the medium fit only.

Square and hex in all fits uploaded and a step file to be able to modify anything from your side with ease.

light fit 1mm arm

medium fit 1.6mm arm

tight fit 2mm arm
