Gopro Chinmount for Nolan N53 Helmet

Description

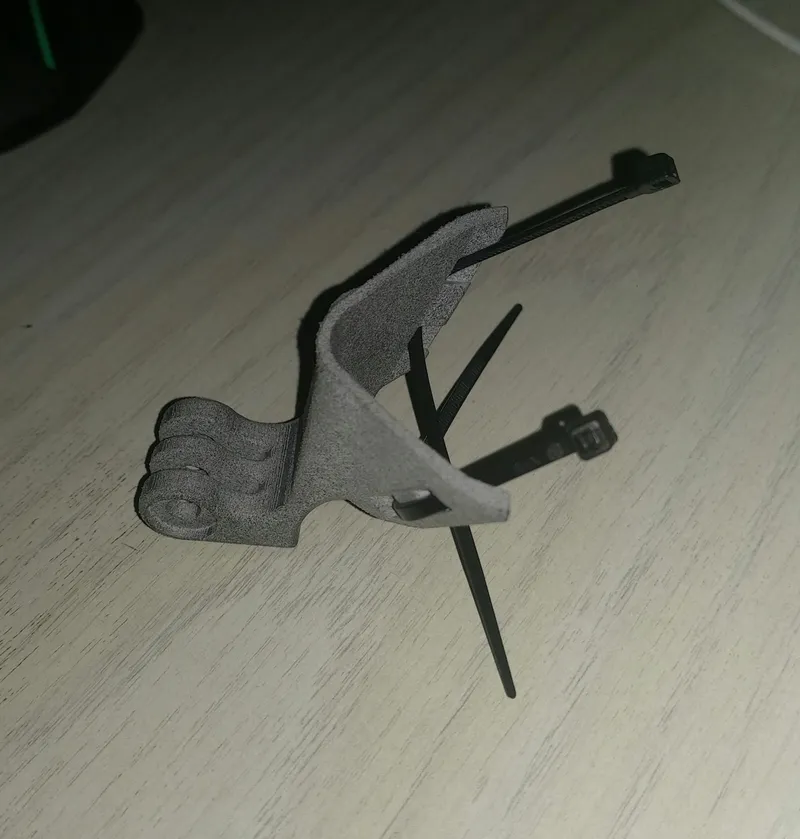

This mount allows you to attach your GoPro securely to your Nolan N53 helmet using zip ties.

Printing

I used 3 wall perimeters and an gyroid infill of 25%

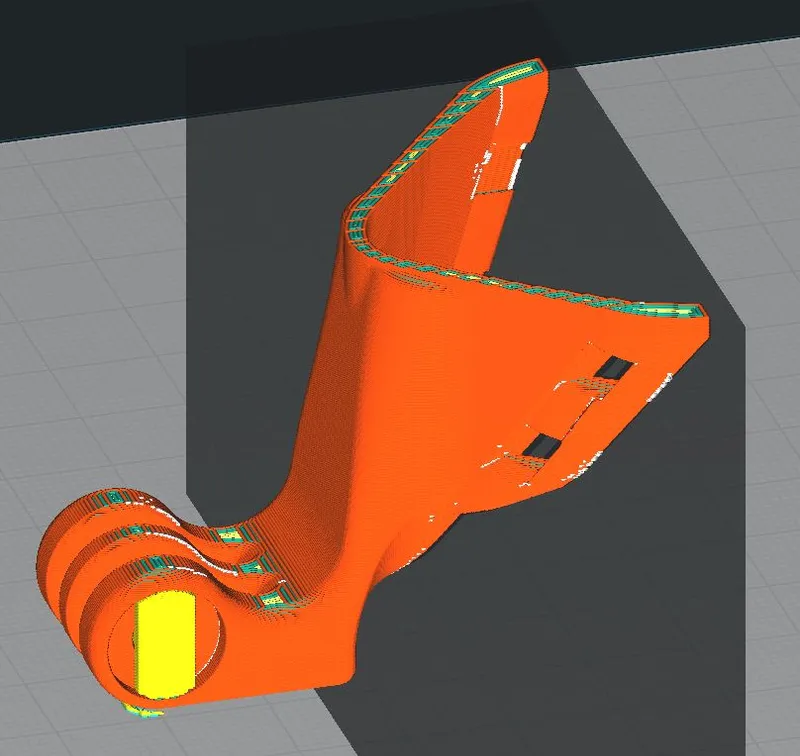

Can be printed standing up like this:

On my Printer you dont need support in the back only for the holes in the front.

Instaliation

1. Print the part
2. Remove the “sponge” in the front (should go easily in and out)

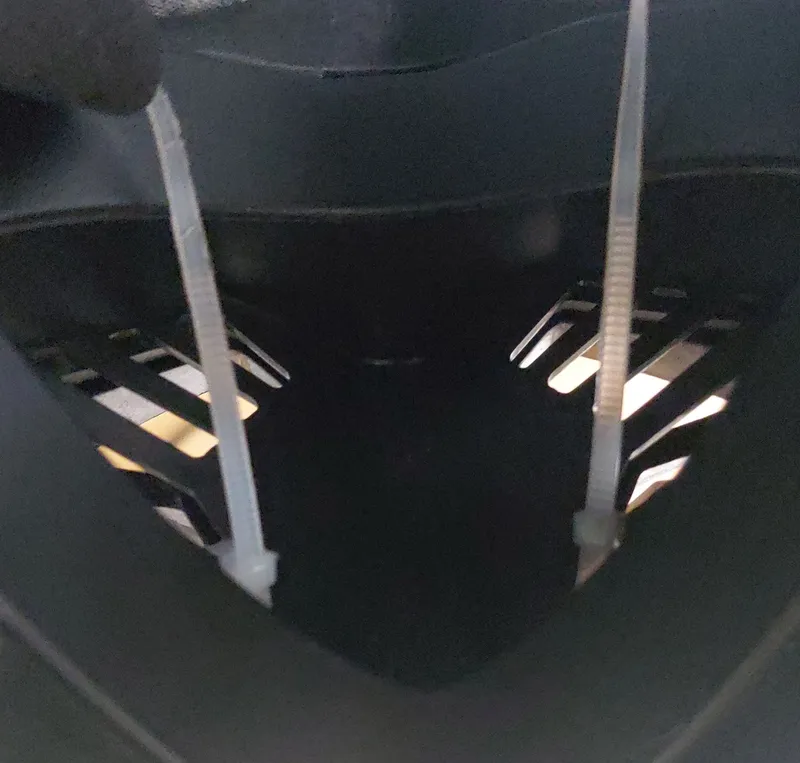

3. Insert the zip ties(2.3mm x 98mm) as shown

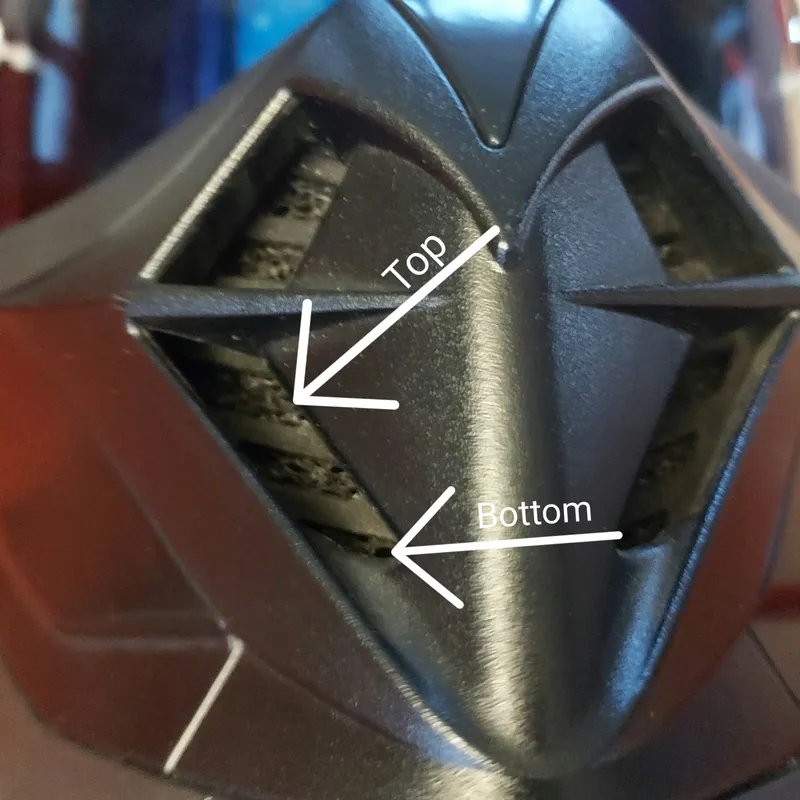

4. Feed the zip ties through the holes as marked
5. Connect the zip ties in the back and tighten cpmpletly
6. Cut the ends off and reinsert the “sponge”
7. Go out and have some fun with your new gopromount
