FYSETC Portable Input Shaper mount for Bear Extruder and Bed. ADXL345 + RP2040

Mount for a FYSETC Portable Input Shaper on a Prusa MK3s Bear extruder (BearExxa) and bed.

It should fit an MK2 or MK3 just fine, the extruder mount is very simple.

You will need to pause the print a dozen or so layers in to add the magnets into the holes that will encase them.

On the extruder, it replaces the fan duct/shroud.

On the bed, the mount has 2 magnets that secure it to the bed.

Requirements:

Two 10x2mm round magnets

Two M3*8 screws

One M3*10 screw to secure to extruder (you can use the fan shroud screw temporarily for this.)

EXTRA:

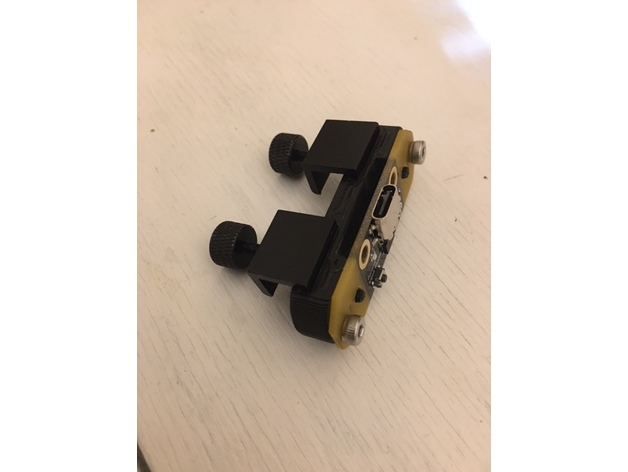

I added an older version too, which requires clamps instead of magnets.

Requirements:

Two adjustable glass bed clamps, instead of magnets.
