MiMA Blocks - building kit set

MiMA Blocks

a building kit set with 71 blocks and 9 sizes of base plates. Thanks to the design of the blocks, they fit together from all sides. Just select the required block types, print any quantity in any colors and you can build. Then just let your imagination run wild :)

update #1  (14.05.23) - Slight adjustment of the dimensions. Cutting the bottoms of the side pins → smaller remnants of the supports should not be a problem after removing the supports. Changing the shape of the bottom holes on cubes - for a better connection.

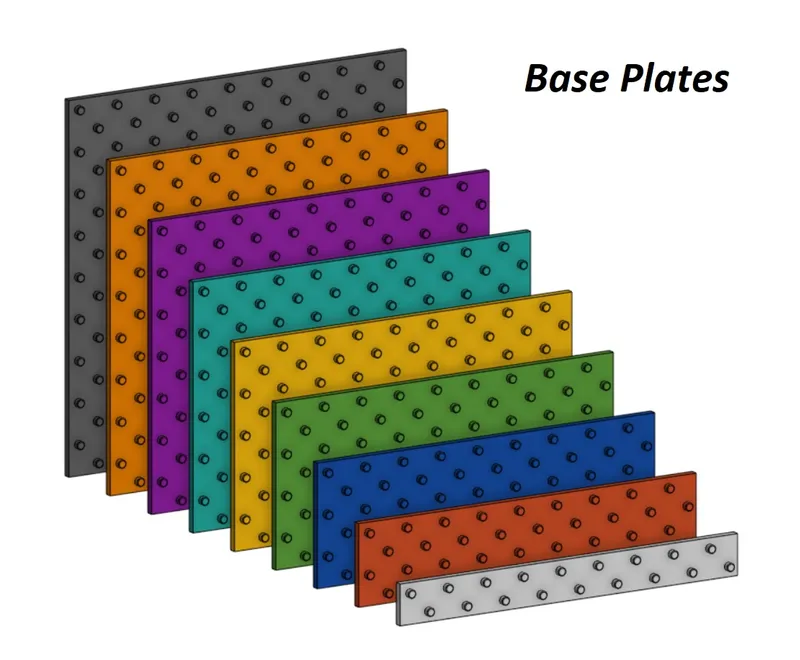

Added 9 new parts - 9 sizes of base plates with a width of 9 cubes (207mm) and a depth from 1 to 9 cubes (23mm-207mm)

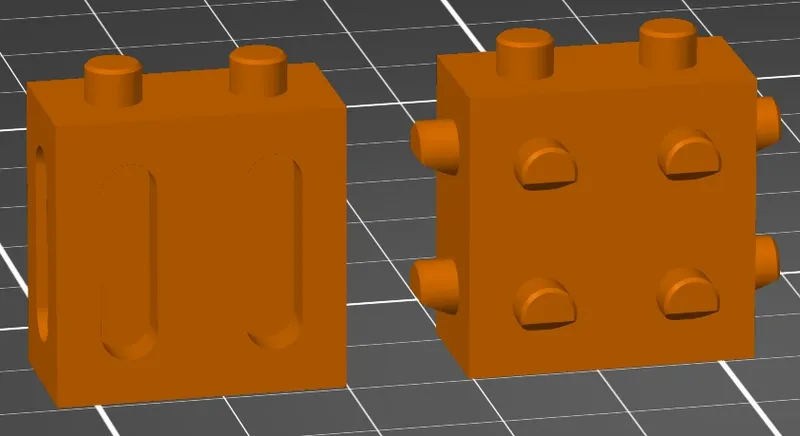

update #2 (15.05.23) - Complete removal of supports - pins on the sides of all cubes can now be printed even without supports + shorter printing time

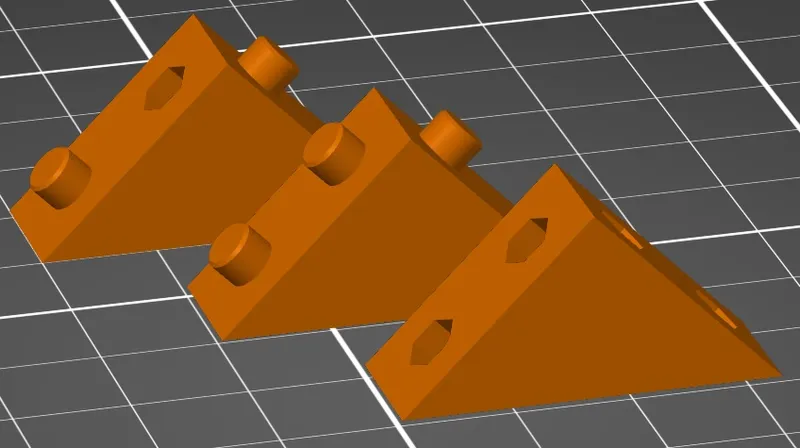

update #3 (18.05.23) - Renamed original corners to corners with holes.

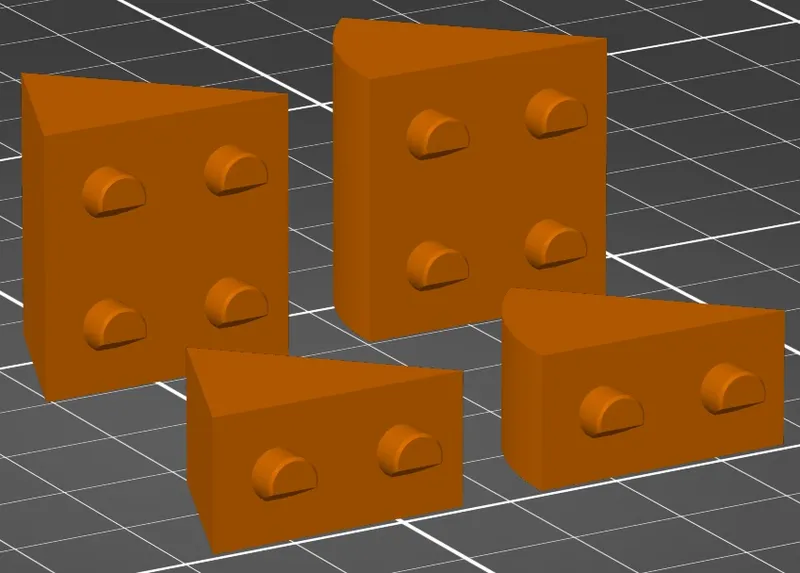

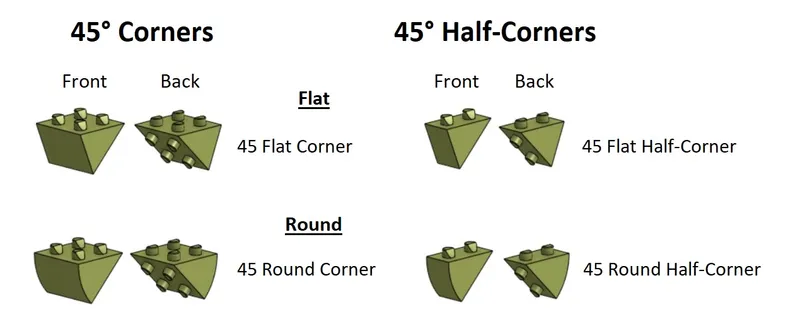

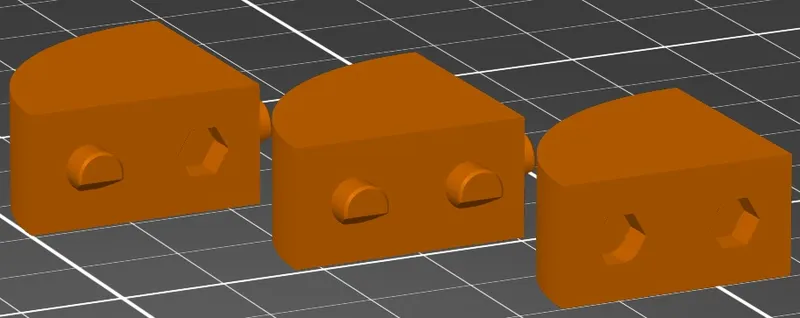

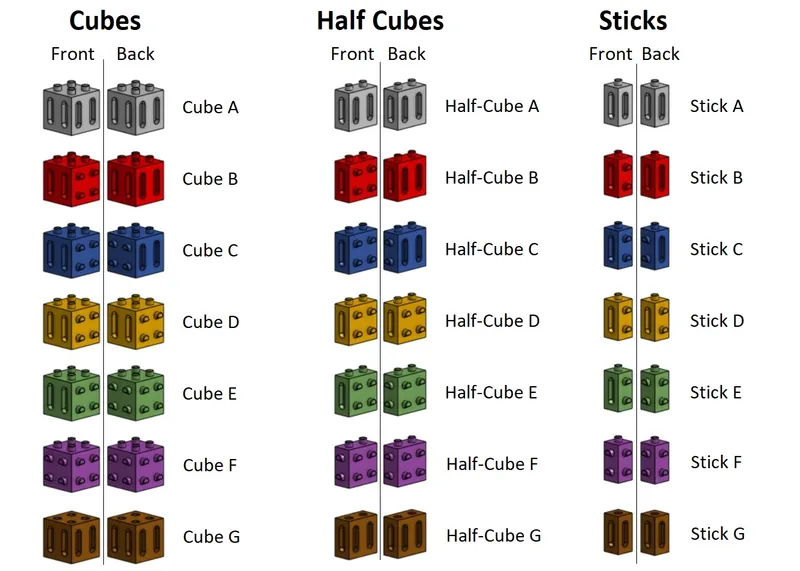

Added 36 new parts - 1 Cube (full holes), 7 types of Half-Cubes, 7 types of Sticks, 3 types of Half-Cornes with holes, 3 types of Flat Corners, 3 types of Flat Half-Corners, 3 types of Round Corners, 3 types of Round Half-Corners, 1 Flat Corner 45deg, 1 Flat Half-Corner 45deg, 1 Round Corner 45deg, 1 Round Half-Corner 45deg, 2 types of Walls

update #4 (20.05.23)

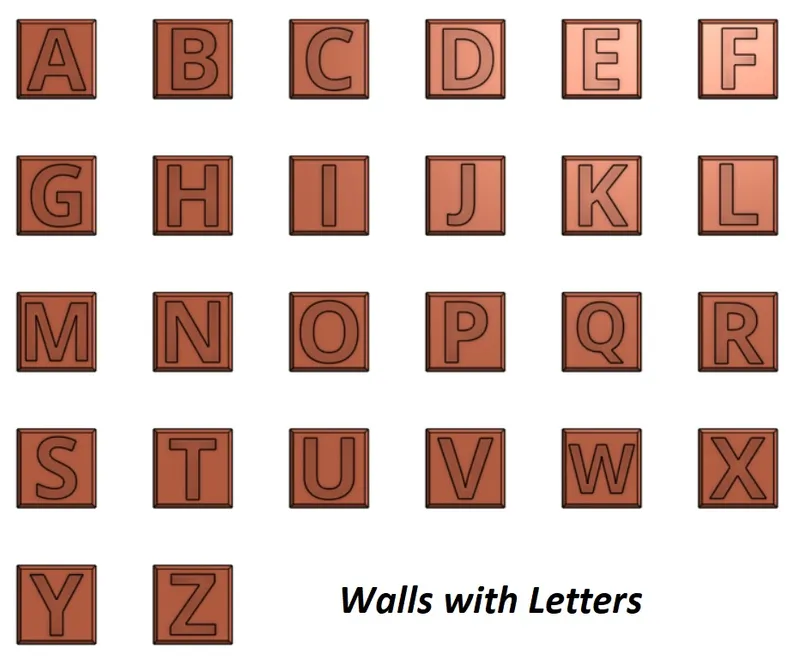

Added 26 new parts - Walls with Letters A-Z

Printing

Material: PLA

Layer: 0.15mm

Infil: 20% - 25%

Perimeters: 2 - 4

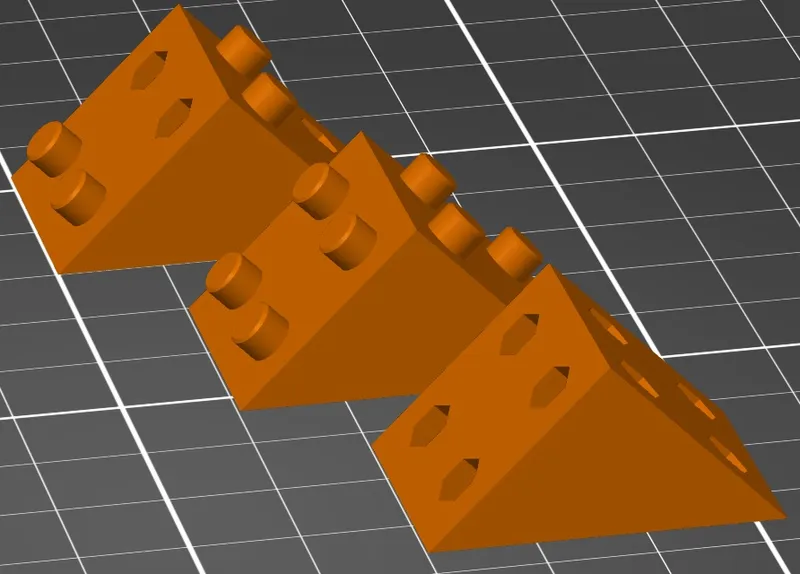

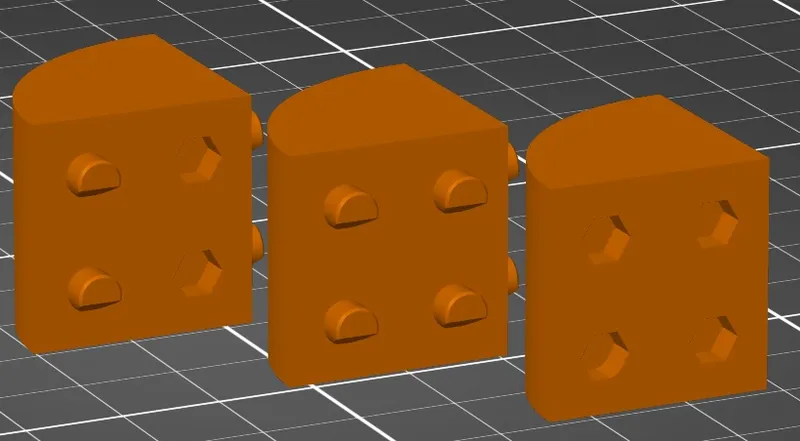

Supports: NO                                                                                                           How to place it                                                                                                                                                              on the printing bed:
