F*ck Wheel (of fortune)

It has been a bad day. What next? Spin the wheel to find out!

This wheel can provide the answer to many daily situations.

Print instructions:

Optimized for a 0.4mm nozzle, 0.2mm layers. No supports required.

All pieces come in the recommended printing orientation: the text slices are printed with the front-face down for better quality.

For the desired effect arrow.stl requires a color-change at 3mm.

slice_blank.stl is optional: it can be used for custom text if desired.

Assembly instructions:

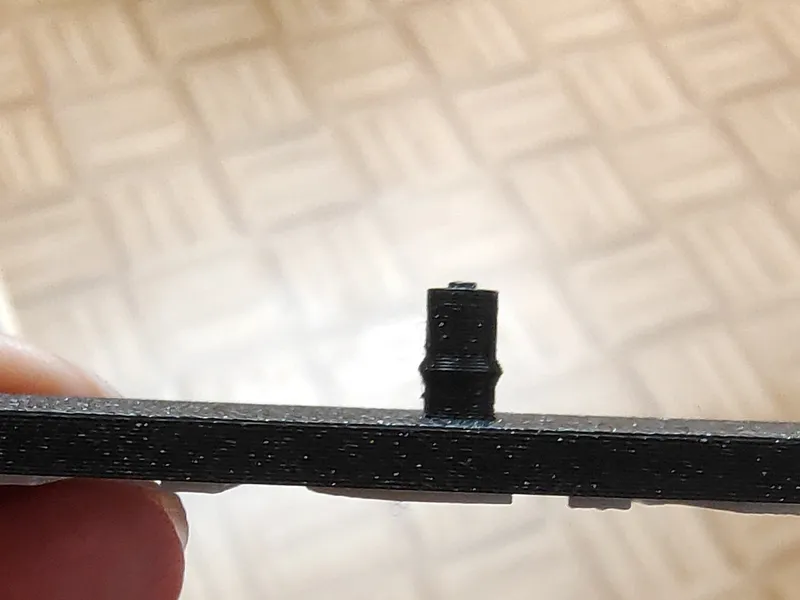

Glue the pin in the recess on the rear of the arrow. Please note the correct orientation for the pin, which should have a protruding tip pointing up:

Ensure the pin is perpendicular and pushed all the way inside.

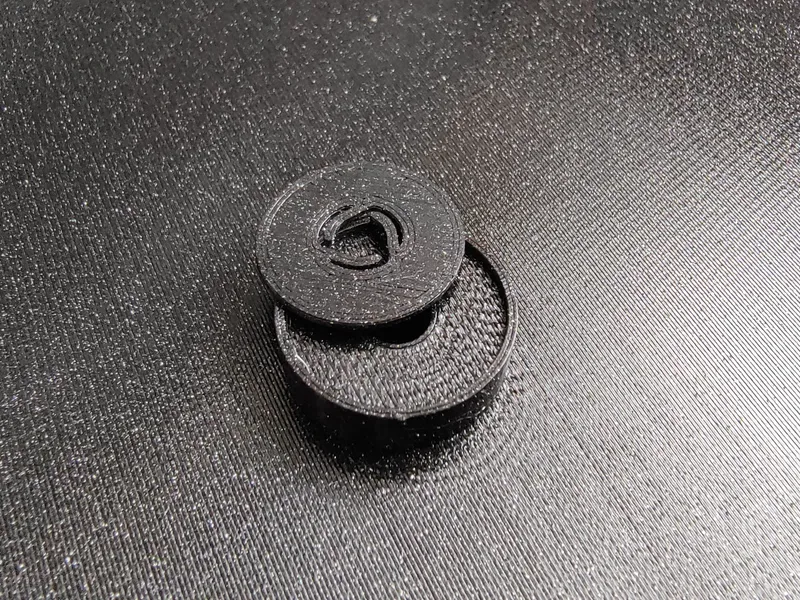

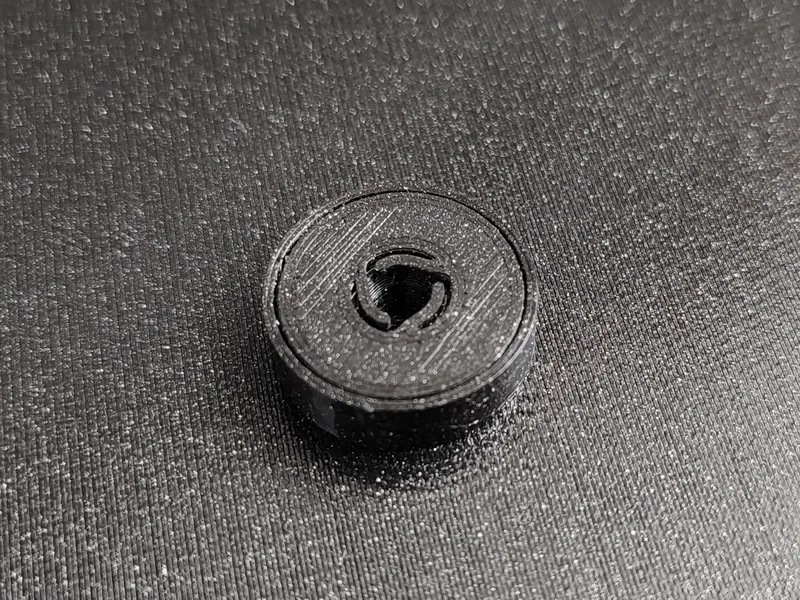

Glue the retention ring inside the slot of the base, trying to place it centered:

Put a few drops of glue behind the slices and place them inside the base.

Once the glue is fully set push the arrow inside the base until it clicks in place. When placed on a flat surface the arrow should spin freely with very little friction
