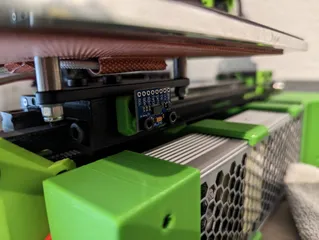

Meanwell UHP-350-24 End Cover (DC Side) Power LED + Microswitch + Heat inserts

Added holes for Power LED and Microswitch. Added a "V" on front. Cable hole is now open.
2
9
0
202
updated May 7, 2023

Description

PDF

I redesigned the heat insert DC side Cover for the UHP-350-24 from edbdii



If you upgrade to the UWP350 your Minion will be completely silent in standby - so I sometimes forgot to power it off. There is a little LED in the UWP but I wanted a LED on the front side.



Also added a microswitch to control the printer lightning and opened the cable hole for easier installation.



Left hole is ⌀ 8.2mm and right hole ⌀ 6.5mm. Use M3S heat inserts.
