Complete Truss & Accessory Pack

0.5mm extrusion width, No infill, 2 perimeters, side plates 100% infill

M4x20 or M4x25 hardware, recommend wingnuts or 8-32 imperial

All files have been test print on a MK3s+/CR10s printed in PETG.

If there's a piece missing shoot me a msg so I can make it!

Files:
-truss_100_LP.stl (truss stick 100mm, low profile support)
-truss_100_nosupport.stl (no support)
-truss_200_LP.stl (truss stick 200mm, low profile support)
-truss_200_nosupport.stl (no support)
-truss_350.stl (truss stick 350mm, custom support)
-truss_350.stl (no support)
-4way_vers_corner.stl (4 way corner, print 100% infill)
-offset_corner.stl (3 way corner offset for bolts)
-2way_vert_corner_v2.stl (2 way corner for vertical use)
-truss_plate.stl (truss plate to accommodate wingnuts)
-truss_plate_thin.stl (self explanatory)
-half_cube.stl (25mm truss stick, 100% infill)
-parrot_stand.stl (truss topping mount to avoid ratchet straps)
-grapple.stl (attach truss in stranger ways!)
-screwjack{a,b,c}.stl (adjustable height adjustment)

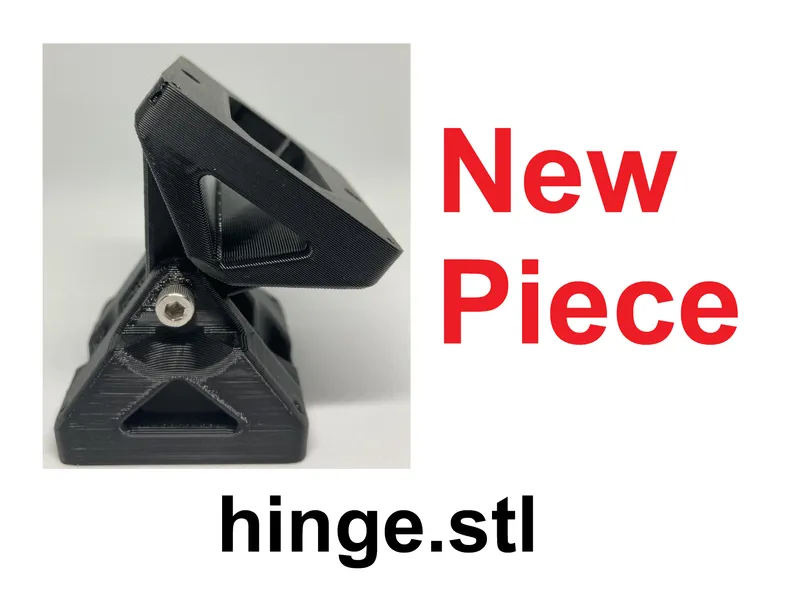

-hinge.stl (use for angled supports or doors M4x44)

Print instructions

0.5mm extrusion width, No infill, 2 perimeters, side plates 100% infill

Current Work:

-Curved truss: https://www.printables.com/model/277642-curved-truss

-angled piece

-fishline chain motors

Changelog:

- added hinge.stl

- changed inner chord diameter from 4mm to 2mm for easier printing on other machines

- added 350mm no support

- added tuned gcode for truss_200_LP.stl on mk3s+
- (truss_200_LP.stl) added low profile supports to achieve less waste/save prep time
- (truss_accessories.3mf) updated to include infill on bottom 1mm for truss_200 and truss_350 to accommodate prusa slicing error resulting in weak bed facing horizontal stretchers

way more components
