Gameboy Camera Selfie Stick Adapter for GBA SP

A GoPro-mount compatible GBA SP Adapter that lets you take Gameboy Camera selfies!
2h 13m
1× print file
0.20 mm
0.40 mm
26.00 g
24
17
0
649
updated May 2, 2023

Description

PDF

Introducing the (Unofficial) Gameboy Camera Selfie Stick Adapter!

Take hilariously poor photos, now farther away!

Can't quite get everyone in the photo? With a little ingenuity you now can!
This original selfie stick adapter cradles your Gameboy Advance SP and has a handy lever on the side allowing you to actuate the A button from great distances. It also includes a ring to hook it onto your phalanges and give it a tug.

You will need:

  • 1x of each file provided here
  • 2x M2x8 bolts for the side piece AMZN Link
  • 2x M2 nuts for the side piece AMZN Link
  • M2 wrench
  • Thread or Floss (See local fabric shop or dentist)
  • Gameboy Camera Cartridge
  • Gameboy Advance SP (charged)
  • A GoPro-mountable selfie stick
  • A small bit of filament for the lever joint
  • A can-do attitude

To Assemble:

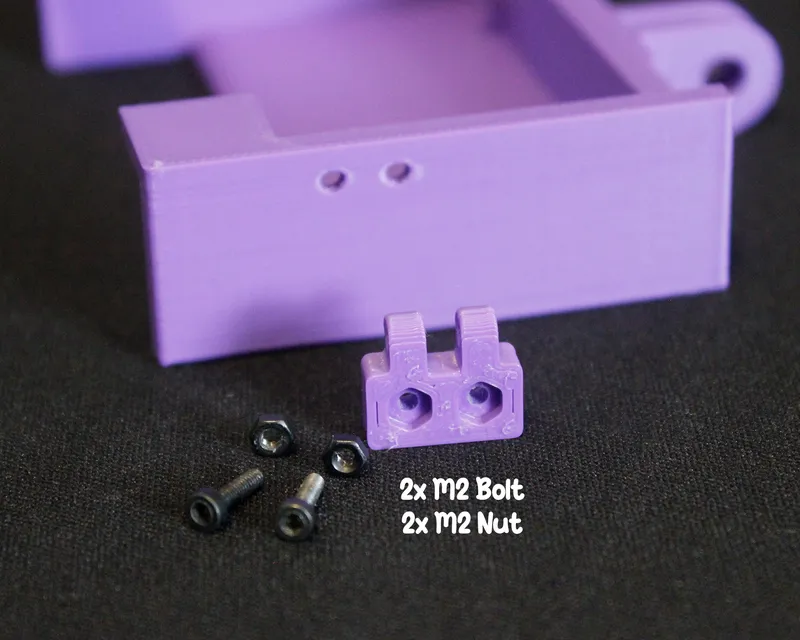

  1. Gather printed pieces and nuts/bolts

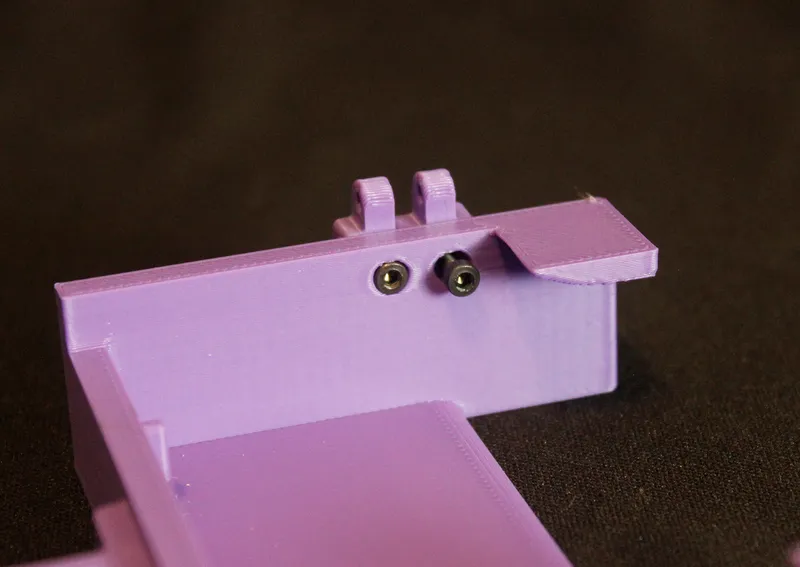

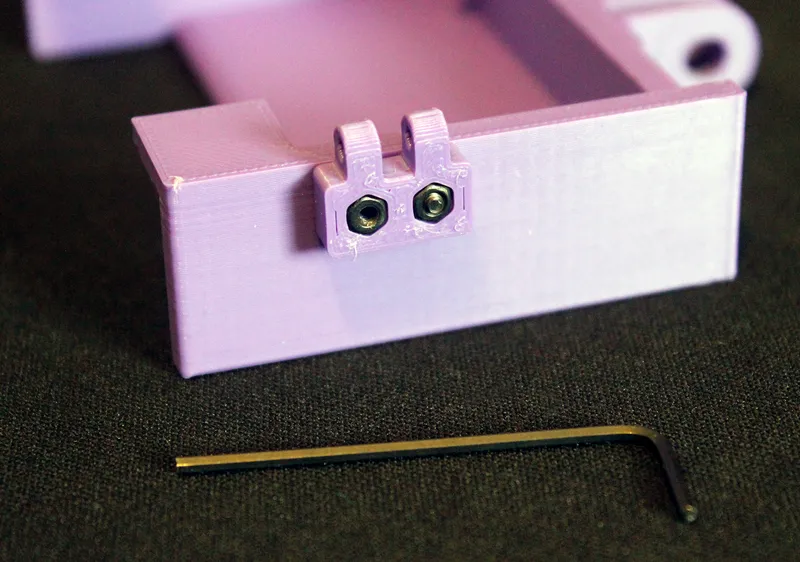

  2. Insert nuts into the Side Piece and attach from the other side using the bolts.

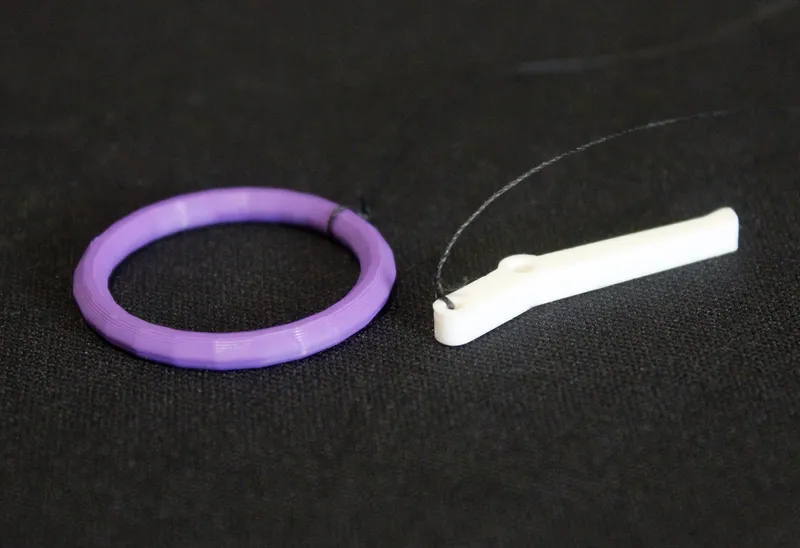

  3. Tie string or floss onto the ring and the lever.

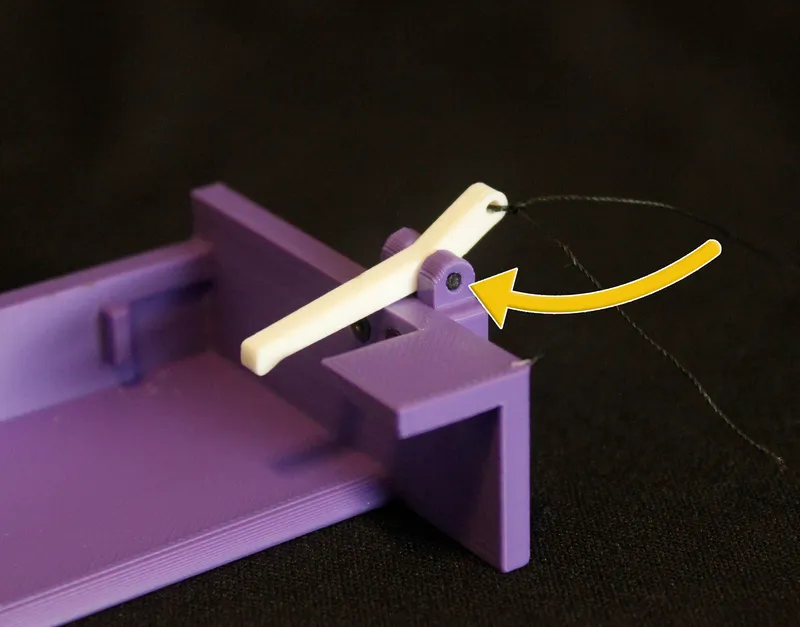

  4. Secure the lever into the Side Piece using a small piece of 1.75mm filament (about 10.7mm).



  5. Slide the GBA with the Gameboy Camera into the contraption and pull down on it to hold it in place. The GBA SP slides effortlessly in and is secured by the tabs inside the adapter. (Seen below)

  6. Go take some pictures, enjoy!


Remixes welcome!
