Ringify - a ring to carry them all

There is a newer version of this ring-concept available “Ringify v2- a magnetic ring to carry them all” - the new concept is not compatible to this one.

_______________________________________________________________________________________________

Ringify - the magnetic ring to carry them all

Do you think this is a little bit megalomaniac? Please let me explain.

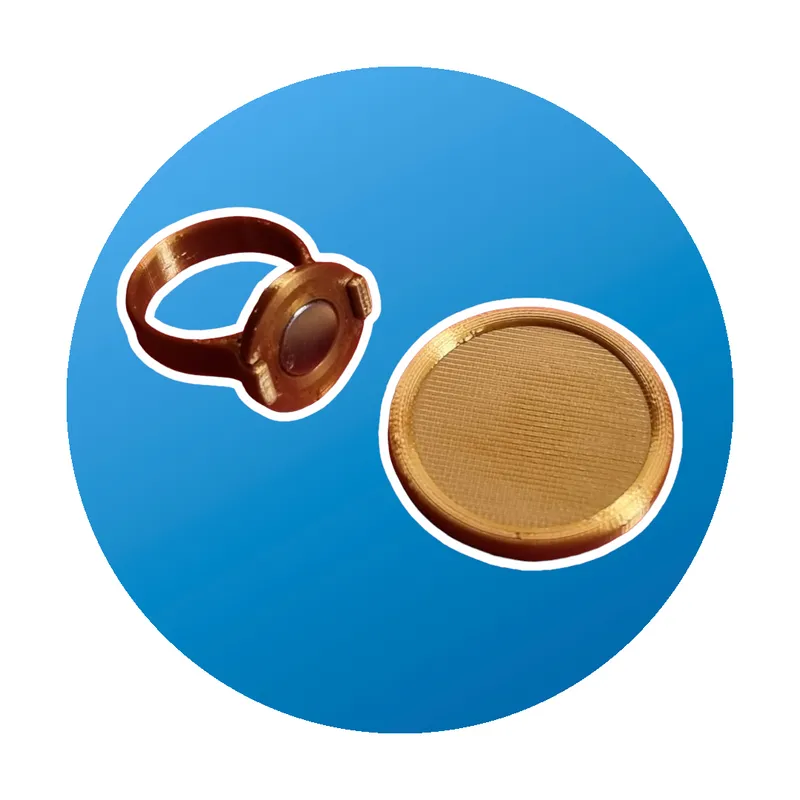

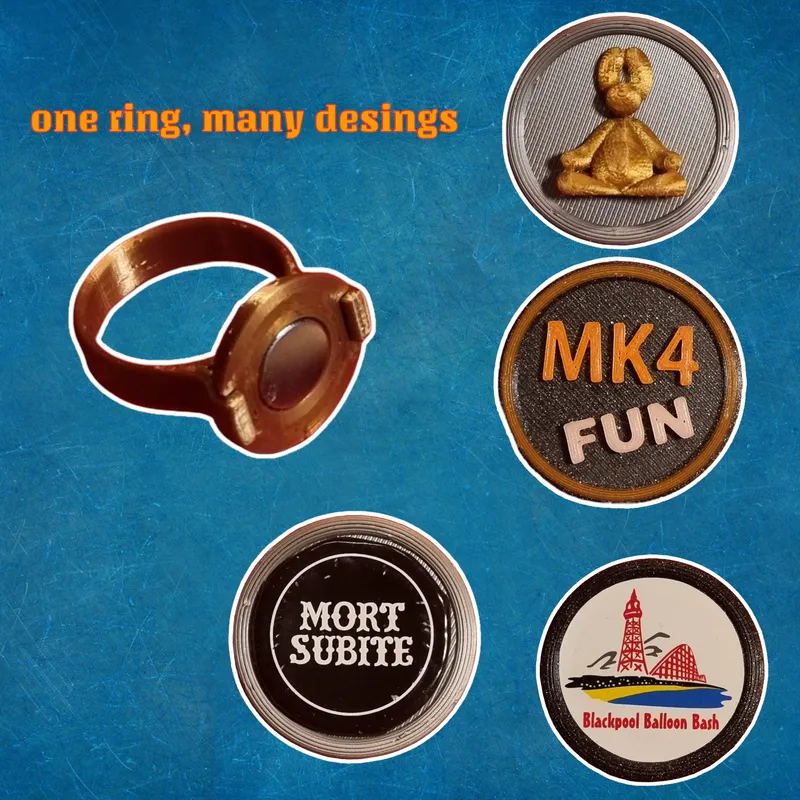

This concept comes with a ring (in different sizes) and a ring plate. The ring and the plate fit together by magnet, the ring size doesn't matter.

So basically you only need one ringify ring in the future and you can wear different plate designs, you can even share your plate design with other - just hand the plate over, it will fit on every other ringify ring, the size does not matter!

Do you want another ring color or the ring size has changed? Just print another ringify ring, mount your favorite plate design and enjoy - the ring and the plates are interchangeable!

That's not megalomaniac, that's great!

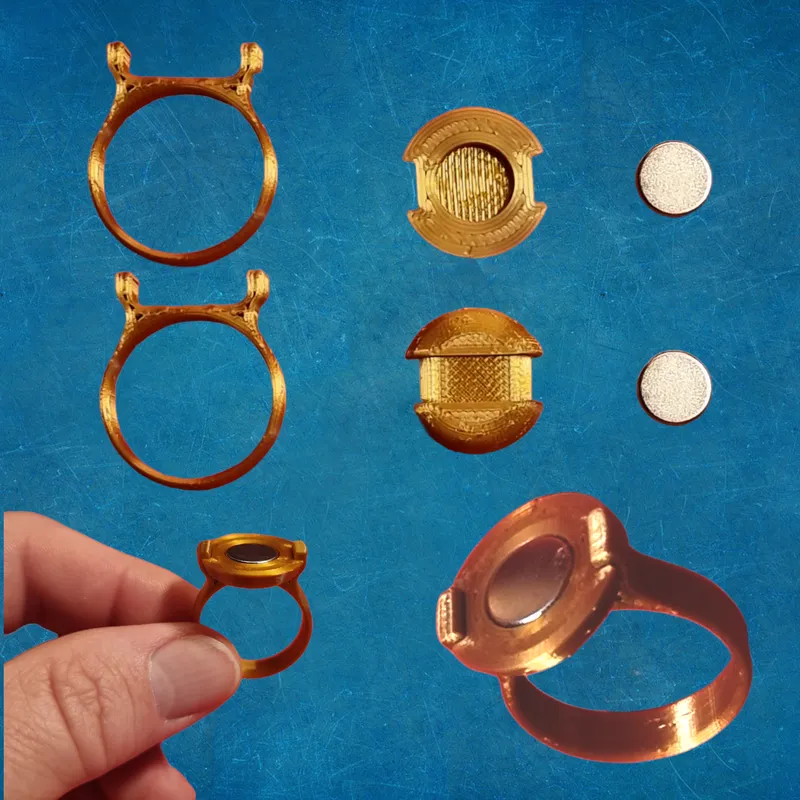

The magentic ringify itself consists of three parts:

• the ring  (available in different sizes)
• the magentic mount  (one size fits all ring sizes)
• a 10x2 round magnet


The 10x2 round magnet is glued into the hole of the magentic mount. The magentic mount is clipped into the ring, facing the magnet up. For a better long term fit you can also glue the mount into the ring.

But was a ring without a plate?, not complete!

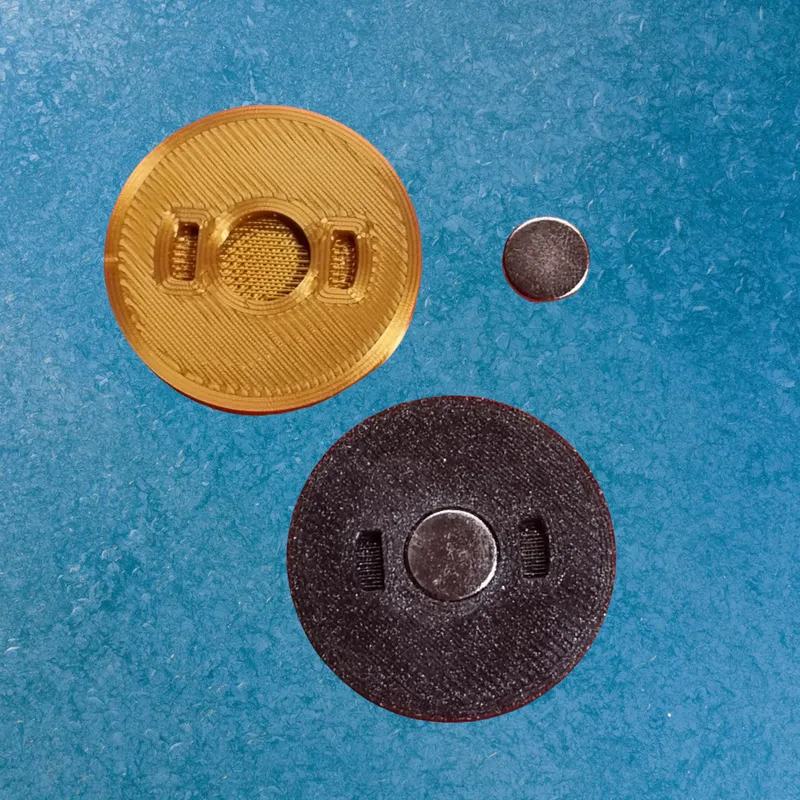

The ringify plate itself consists of two parts:

• the plate  (one size fits ALL different ring sizes)
• a 10x2 round magnet

The 10x2 round magnet is glued into the hole of the plate.

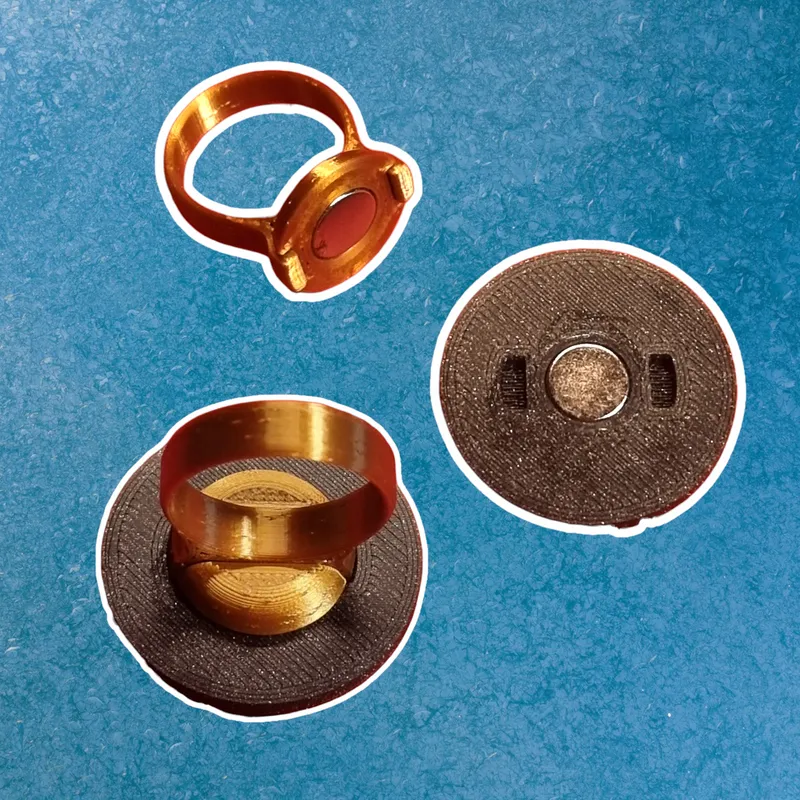

Now we do have the ringify ring and plate, so we are able to put them together

Basically that's it...

.. but this concept is like a canvas! Like a blank white canvas comes to live when somebody paints color on it, it's on you to decide, which color you choose and which items you will place on the plate - the possibilities are endless.

I would be really happy if you post your makes, give me a like or on any constructive comment - looking forward to see your creations.

Technical infos:

• printed on a Prusa Mini+ and MK4 with PLA, layer height 0,20mm, 20% infill, 3 perimeters, no supports, 0,4 nozzle
• the included tolerances are fitting my printers, perhabs you have to adjust it to your needs
• the snap mechnism of the ring seems to be depent, which filament is used… so glueing could the magnetic mount into the ring could be solution
• I provided a *.3mf file with different ring sizes (17mm to 25mm, Step 1mm), the magnet mount and the plate

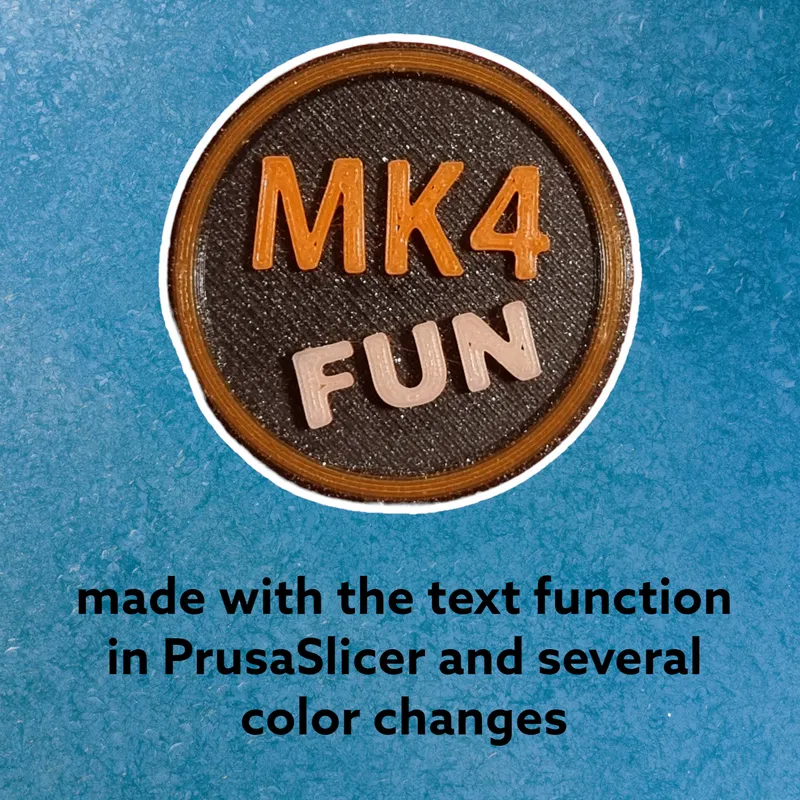

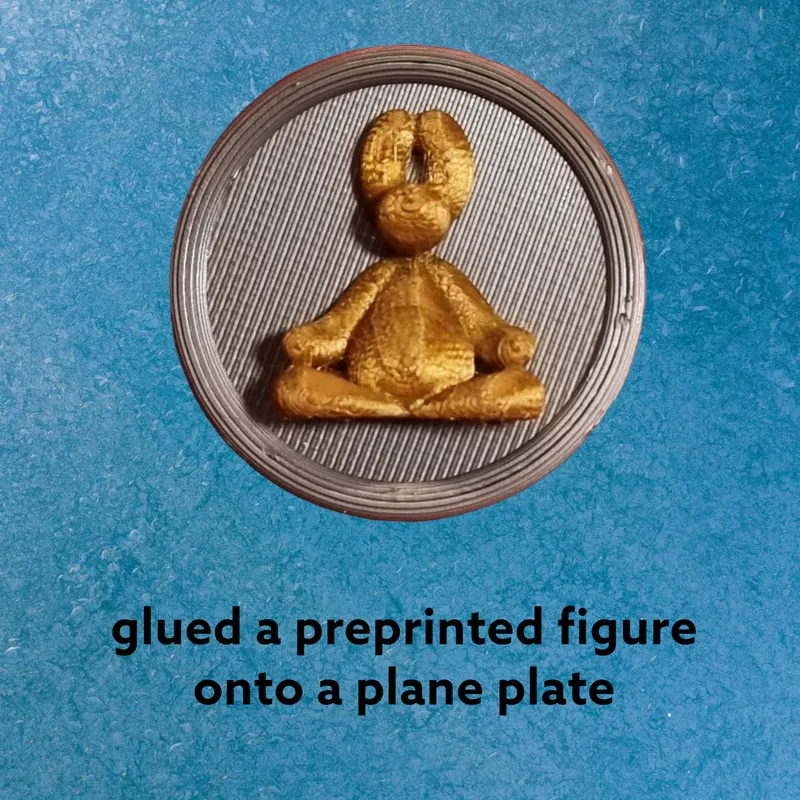

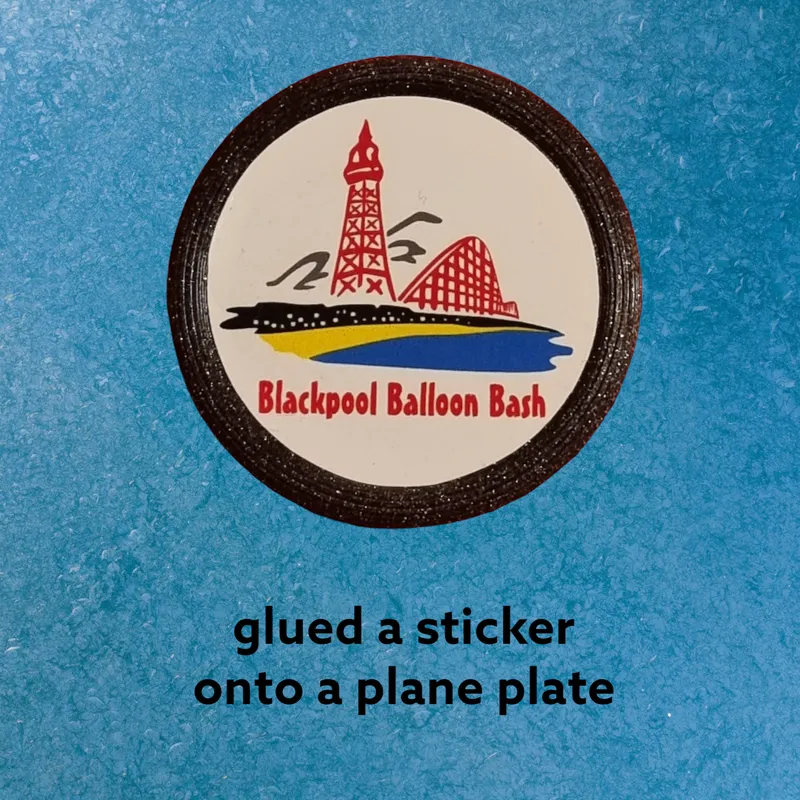

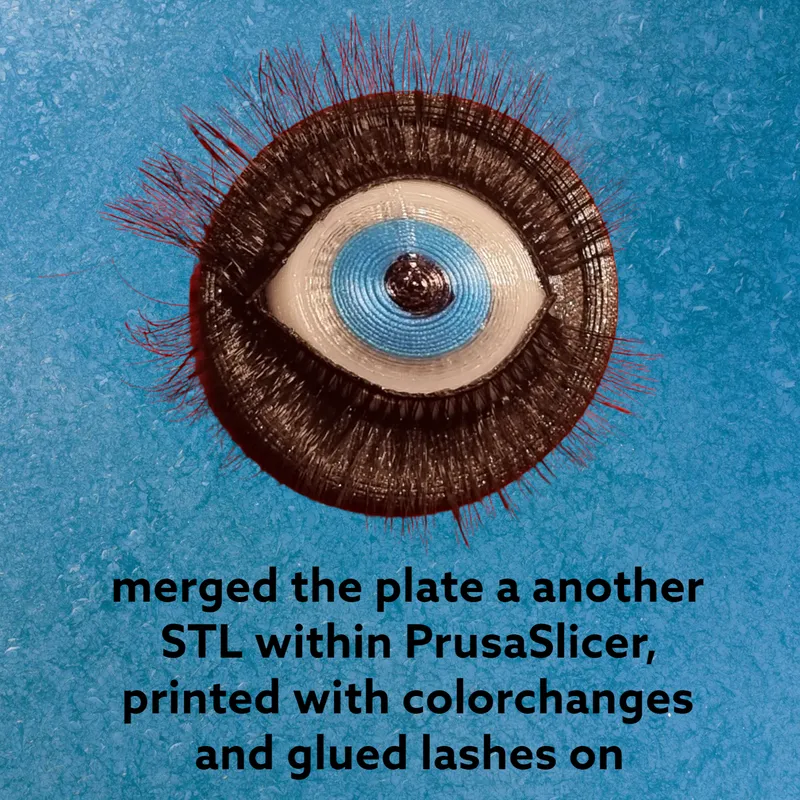

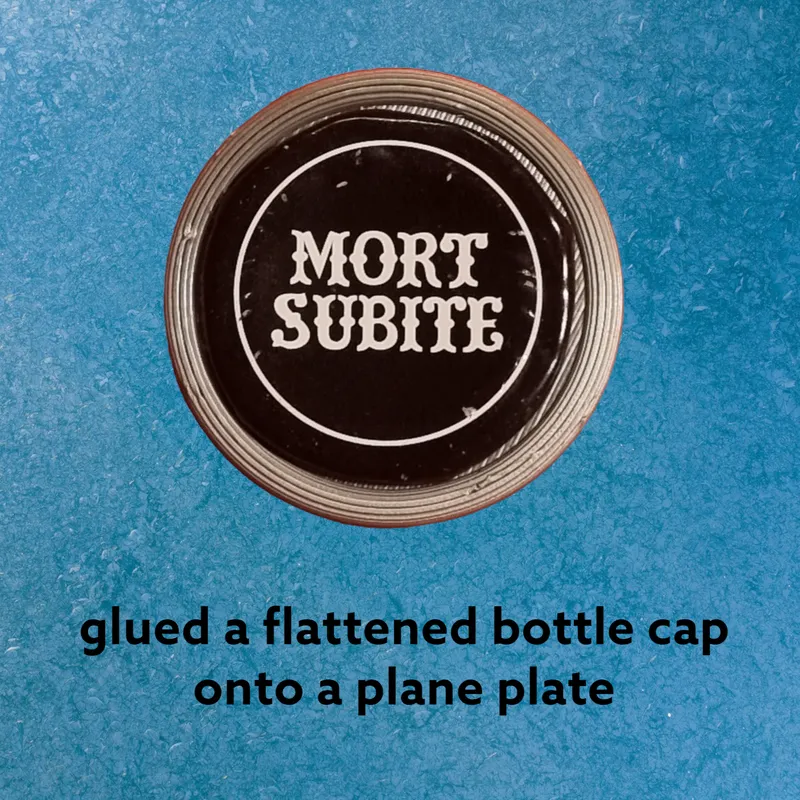

I've added some plates which I have designed while doing this projects, just for inspiration:
