SKR Mini E3 v3 + Raspberry Pi front housing for Ender-3 (v1)

While searching for a clean front housing that fits my SKR Mini E3 v3.0 as well as my Raspberry Pi, I stumbled upon tony.tubb's incredible and well-designed case that however only fits the Ender Pro (that comes with the 4040 Y-axis extrusion rails) unfortunately. Since tony also shared the .STEP files, I took the time and did some adjustments to make it fit on a non-Pro Ender v1 (with a 4020 Y-axis).

Changes made

The following changes have been done:

• Adjusted fixing holes to support M3S heat inserts (M3 x 4,0) instead of just regular bolts
• Raised fixing hole/spacers a few mm to allow room for the stepper driver heatbreak cover of the SKR board
• Implemented space for the 4020 Y-axis extrusion rail
• Added mount for HW-272 step-down converter instead of LM2596
• Added space in the Raspberry Pi lid for the LCD display cable
• Removed the typo/font inlay on top of the lids

Pictures

Render

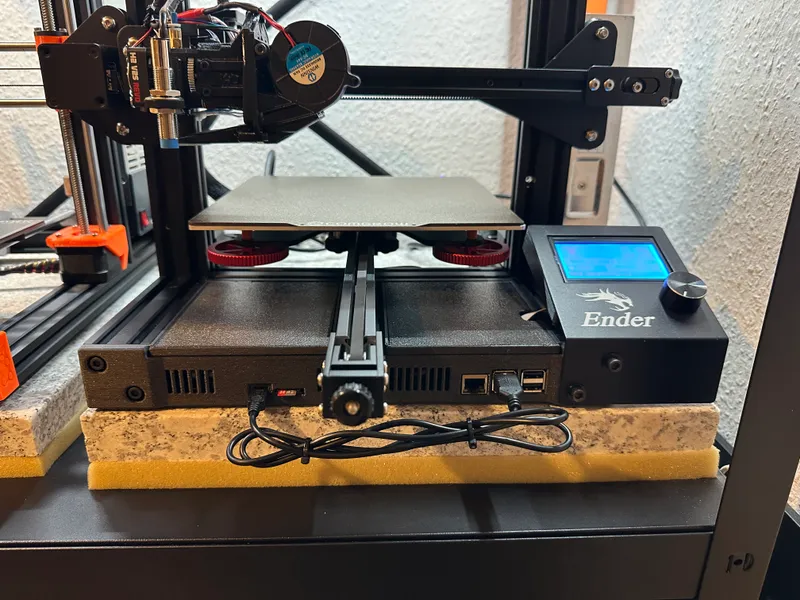

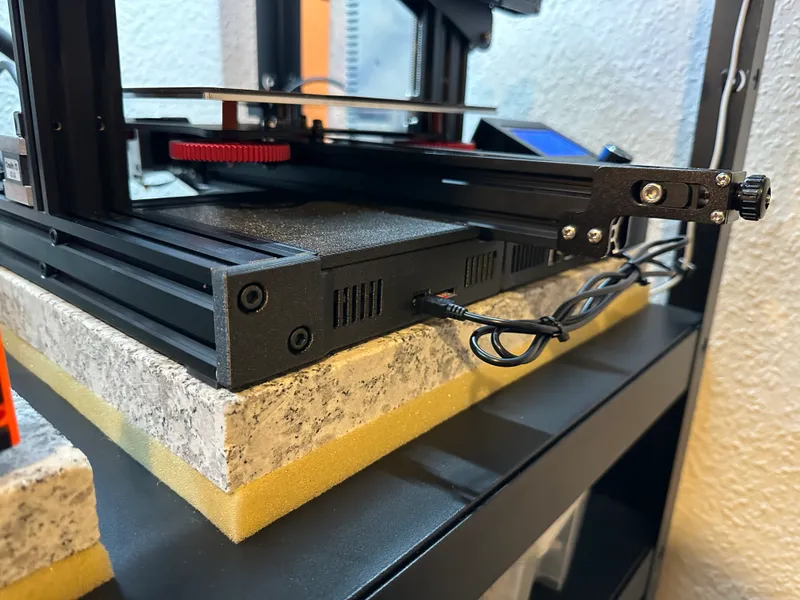

IRL
