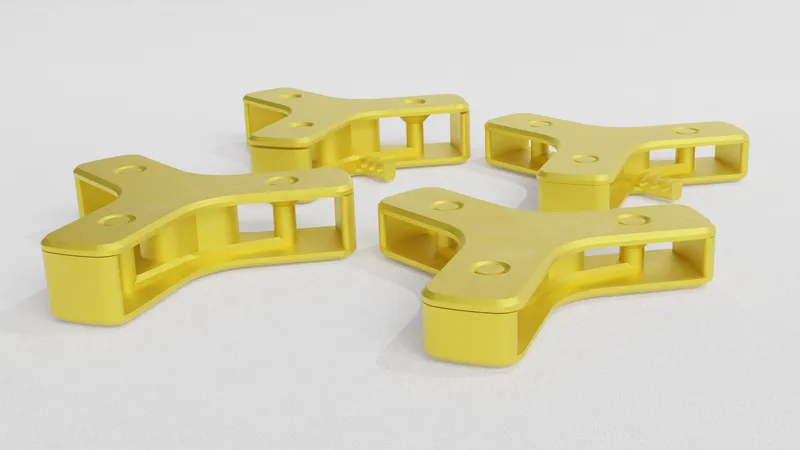

Magnetic cable star for headphones, charging cable, any cable ... [Different sizes]

This gadget uses two Ø6x3 mm magnets to attach the top. Cables can be inserted into the outer or inner openings.

There are two versions uploaded. One with a total height of 14 mm - one with a total height of 16 mm. Both versions are available with and without a clip attachment.

Top and bottom part interlock by a triangle shaped next to the magnets and pins on each arm.

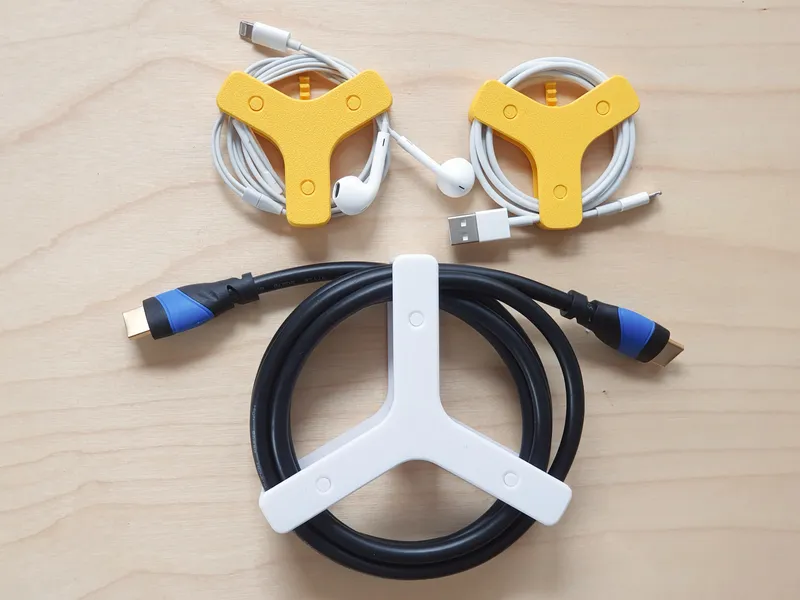

Daily use for headphones, USB charger cables, …

Print settings

• 0.2 mm or 0.3 mm layers
• no support needed
• top part will be printed upside down

Assembly

• insert two Ø6x3 mm magnets in the holes
• ensure orientation is correct, so they will hold the top in place
• if magnets are to loose, use a little amount of glue

Update 28.04.

Now including a much larger version perfect for HDMI cables and other bigger stuff.
