Next Gen Enclosure Side Vent (with hole for cables)

Remix of side vent for PrintedSolid's enclosure with hole at the bottom to route cables through.
2
8
1
145
updated April 18, 2023

Description

PDF

Remixed version of AKA's side vent (thank you!) so that it's possible to route the PSU and other cables through the vent and close the door off when needed.

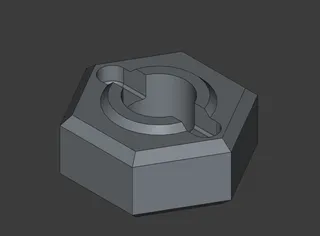

Hex model is cut in 2 pieces because I did not want to disconnect the PSU from the printer and the enclosure's hole is big enough for it to come through :o)

Part files are the same as the original, I just played with negative parts in PrusaSlicer to achieve the desired result.

No supports needed. I printed these in PETG so that the enclosure can reach higher temps if needed.
