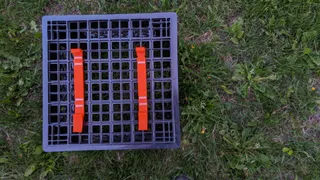

De Walt tool box part bin

These were made to fit the De Walt tool boxes as they are not available on the market you have 4 dimensions available but the fusion drawing is also provided so you can make your own size. The cover lip was omitted as not required for this design.

Print instructions

Used PETG to print them but that is also to your preference.
The dimensions are as follows (mm) height is in three sections
-from the bottom
-there is always a 1.5 mm offset
-top lip
i did remove the cover lip as they were not required for this design

demi base 73103 from the bottom32 top 15.5
simple base 73103 hauteur 65 et 23
double base 146103 hauteur 65 et 23
triple base 219103 hauteur 65 et 23

remixed from Thingiverse
Storage Cup for DeWalt Deep Pro Storage System
by cmadson April 30, 2018 https://www.thingiverse.com/thing:2885634/files
