Computer Monitor Stand

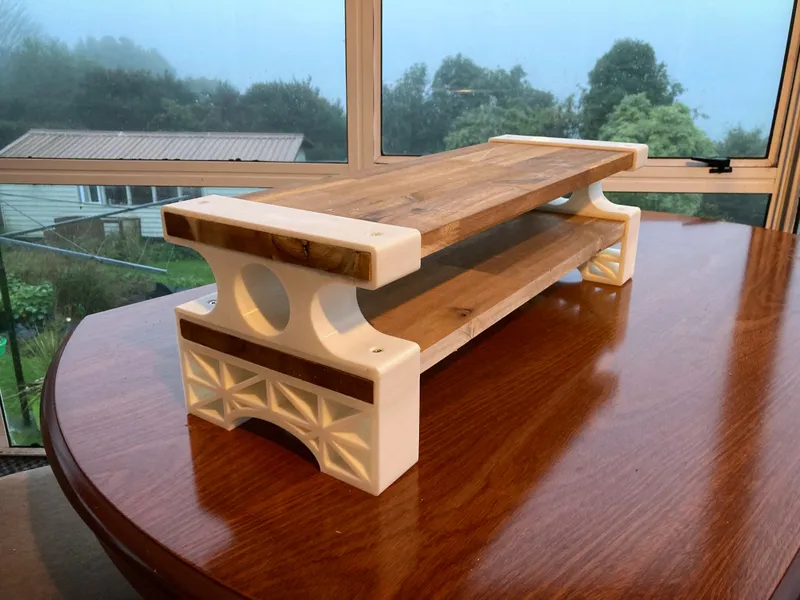

A simple two-level monitor stand I designed where all you need is to cut the wooden planks.
32h 49m
2× print file
0.20 mm
0.40 mm
342.00 g
Creality Ender 3
91
201
0
1444
updated April 16, 2023

Description

PDF

I wanted to design a simple monitor stand that would prop my screen up higher as well as create a place for my computer (Mac mini), audio interface and midi keyboard. I split each side of the stand into two pieces to make it easier to print on a smaller printer (I have an Ender 3 and it just fits). Apart from some wood screws, you will also need a piece of timber that is 18.5mm high and 200mm in width (the length I'll leave up to you)

Printer: Creality Ender 3

Supports: Yes

Resolution: 0.20mm

Infill: 5%

Filament: Esun White PLA+

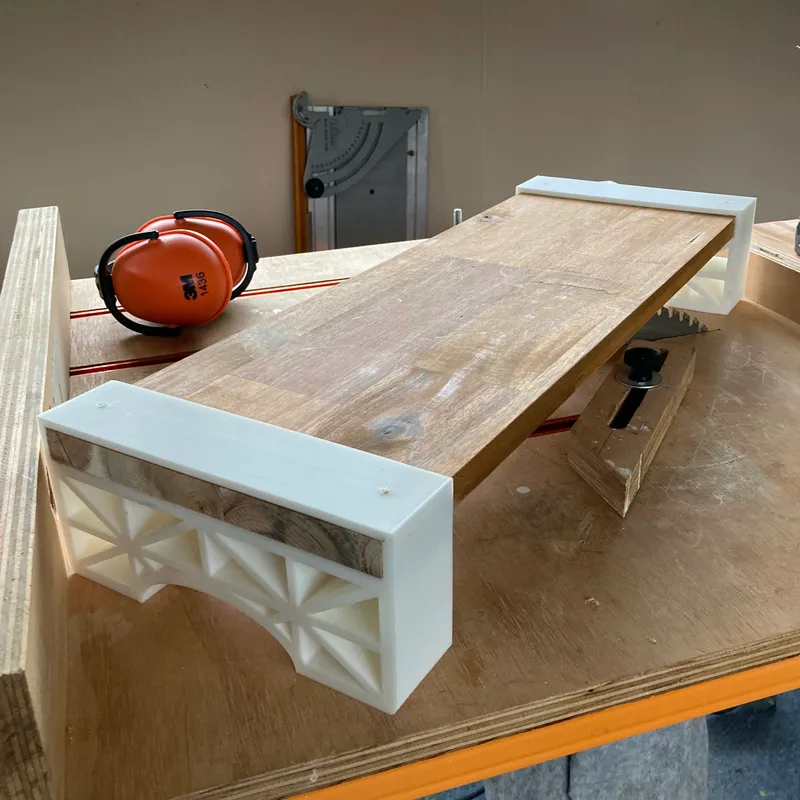

You can build the stand as one level if you only print the bottom part of the stand.

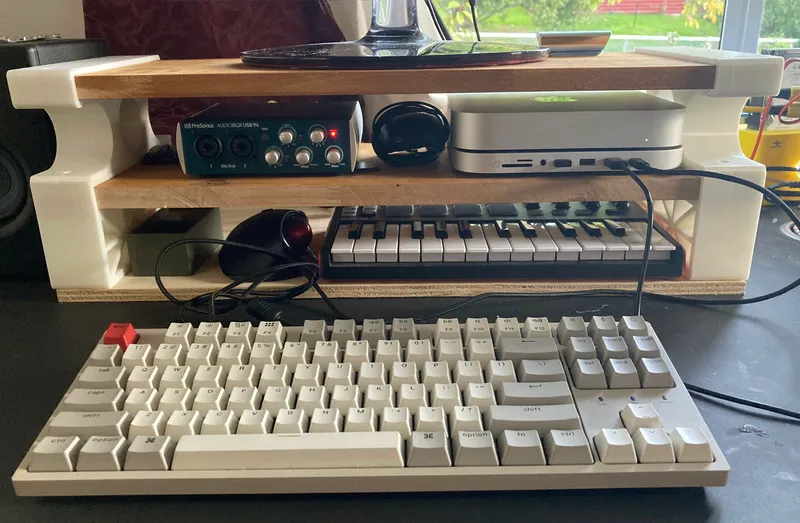

As you can see from the picture below there is plenty of room for a mini-computer to fit (such as a Mac mini)
