Iris Compass Circle Drawing (remix with small improvement)

Cute jig based on Makers Cabinet IRIS to design circles, this is a remix where I just added an hard stop to the movement
19
105
0
903
updated April 15, 2023

Description

PDF

This is a remix of a great model that you can find here: link

Pls follow all the instructions from there till Step 2

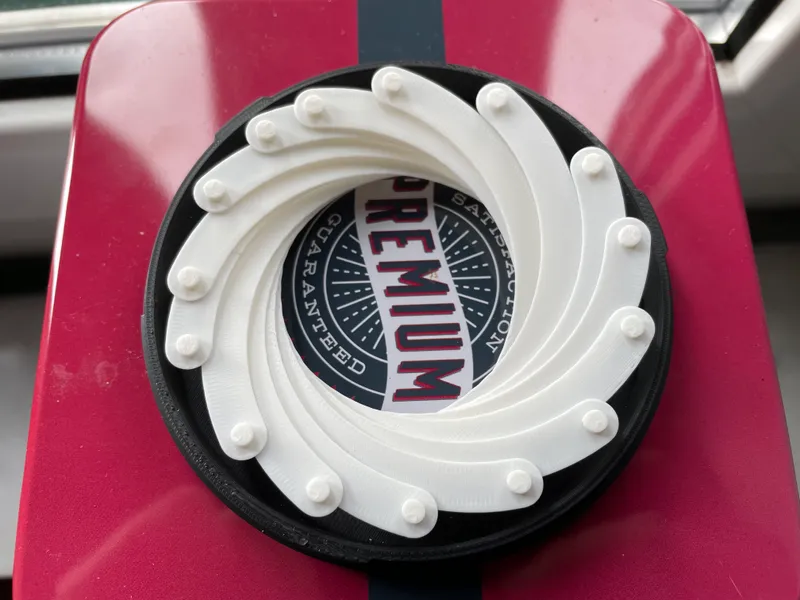

Once you are at step 3, move all leaves to create the biggest hole as possible

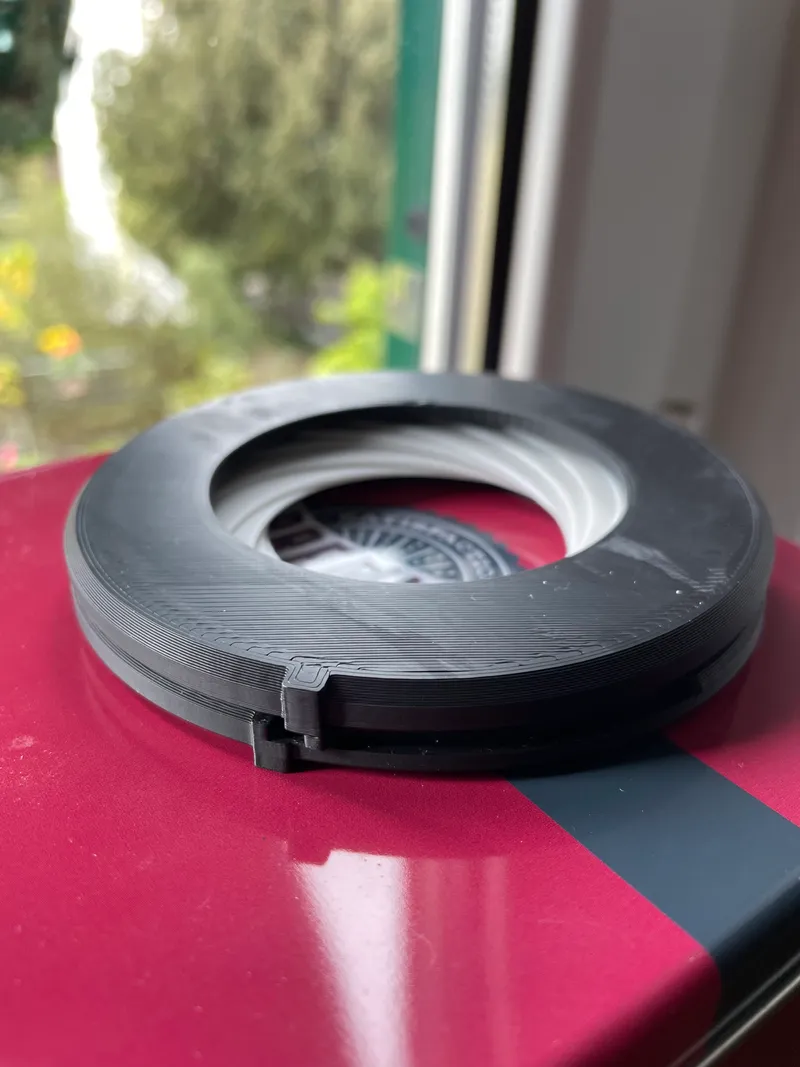

Step 4 you can now add the other side, pls make sure the small sign on the side are aligned as per below image



Step 5 make a small turn counterclockwise till the block

Step 6 you can now rotate clockwise and the tool should work fine.

I think there's still room to improve the design in order to draw an even smaller circle, will work on that in the future.

Let me know any feedback on this design
