Collapsible Light Box

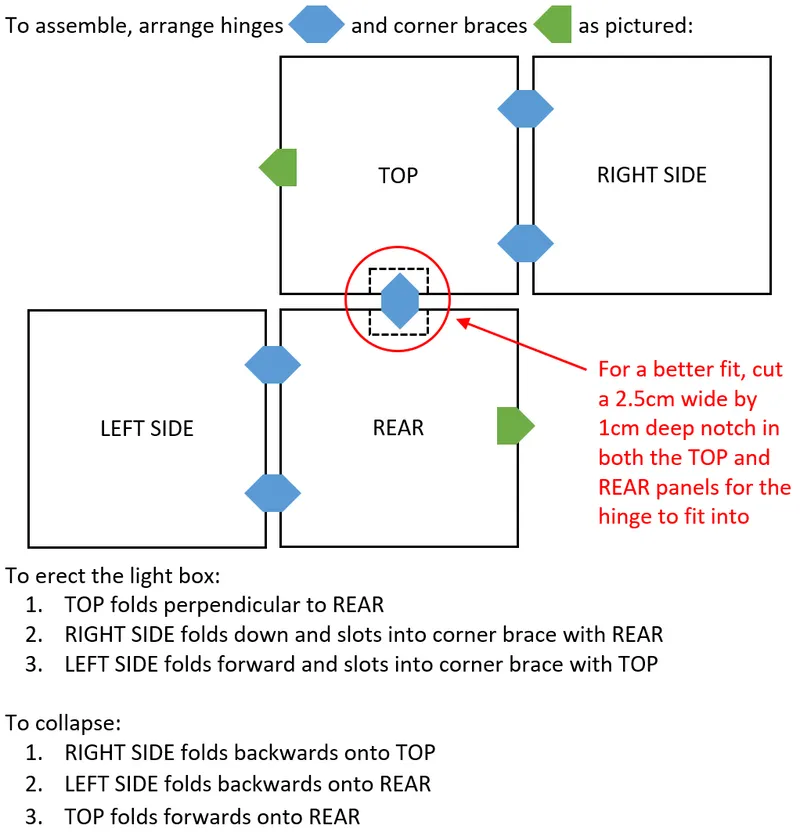

These are hinges and corner braces that allow you to build your own collapsible photography light box.  Print 5 hinges and 2 corner braces.  Set up is quick and the hinges allow the light box to fold down flat for easy storage.

The hinges and braces are designed to be used with standard 5mm (3/16") foam core that can be found at your nearest dollar store.

Add some lighting (best results when bouncing the light off the walls and ceiling of your light box) and you have a nice setup for product and macro photography.

Needs to be printed with supports (I used simple linear pattern that was easy to remove with some pliers)

• Layer height: 0.2mm (first layer 0.3mm)
• 3 perimeters
• Infill: 10
• Support: Yes for the hinges; No for the corner braces if printing on end as uploaded but print the corner braces with a brim.
