Sound Blaster G3 Underdesk holder

2023-08-12

Updated with a lighter design (only ~19g material now) and more rounded corners in case you bump your legs into it. (had the inconvenient experience with the V1 design)

Not sure how many people are using this soundcard but I thought I share the little bracket I made. It's an easy print, print flat as imported. No supports needed at all. Use any material, match your desk color or not.

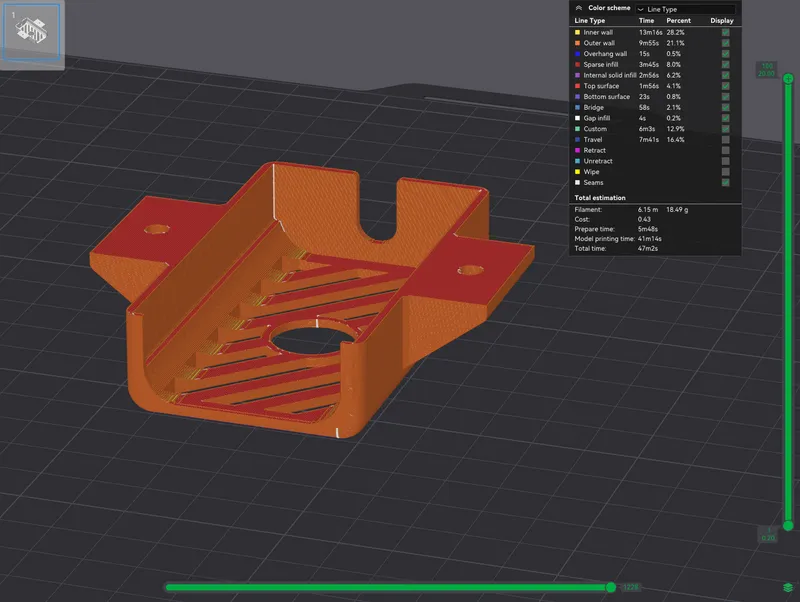

Prints between ~40mins - 1.5h depending on printer/settings. You can use adaptive layers to save a bit of time, there aren't much features that would suffer or affect usage.

I printed mine from PLA, sufficient enough to hold. It is not a tight fit so you should have no issues fitting the soundcard using various printers.

You can fit the base design with 2x M4 self tapping screws to your table or use adhesive on the flat surfaces around the screw holes.

---

Step file is shared for modification if needed.

Disclaimer: The side buttons and switches are covered, I honestly never used them. All ports are open and accessible along with big middle EQ button (with the LED).
