Modular Vertical Paint Rack

Modular Vertical Paint Rack

This paint rack system is targeted at those who are looking for something customizable that can be changed down the line by swapping shelves out and removing or adding tiers.

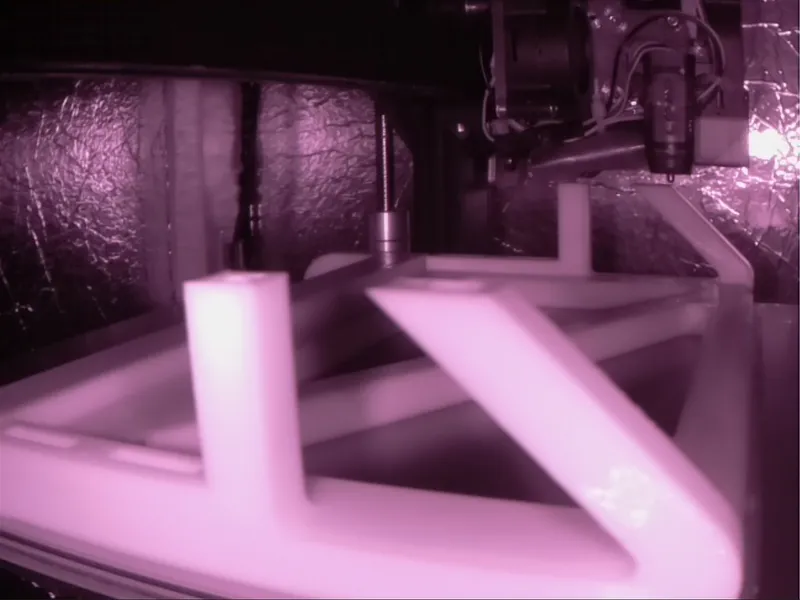

It was designed for ease of printing (supports required only for the clips to join multiple racks, but there is also a supportless version) and can be printed on smaller printers. The largest pieces fit on an Ender 3 S1 with a few spare mm for a brim. The largest part, bottom.3mf, is 225.5mm x 120mm.

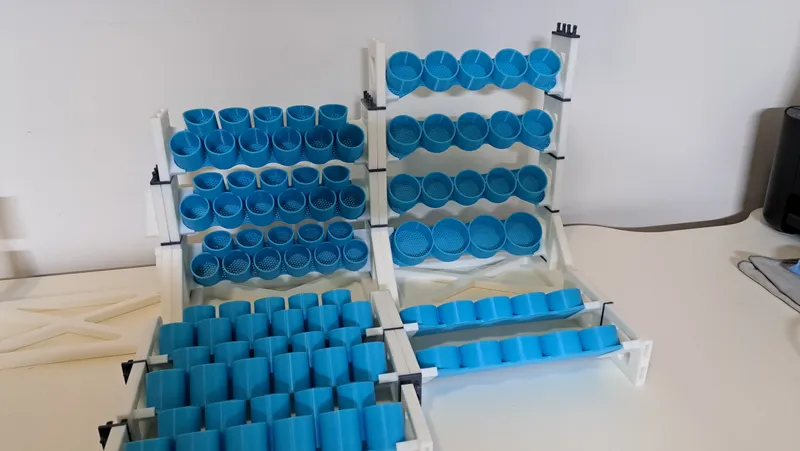

It fits (barely)!

Configuration Options

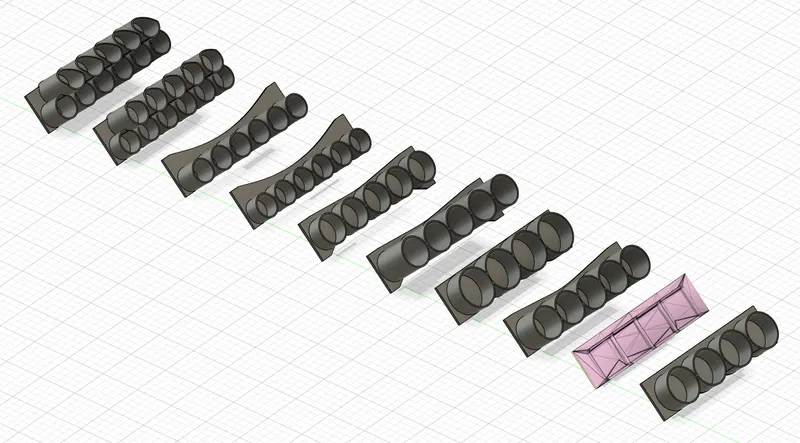

Shelves

• +-25mm diameter dropper bottles (Vallejo, Army Painter, Turbo Dork, AK Interactive etc)
  • single row - 6 slots
    • 27mm single row tall shelf.3mf - 30mm deep
    • 27mm single row shelf.3mf - 20mm deep
  • double row - 11 slots
    • 27mm double row tall shelf.3mf - 30mm deep
    • 27mm double row shelf.3mf - 20mm deep

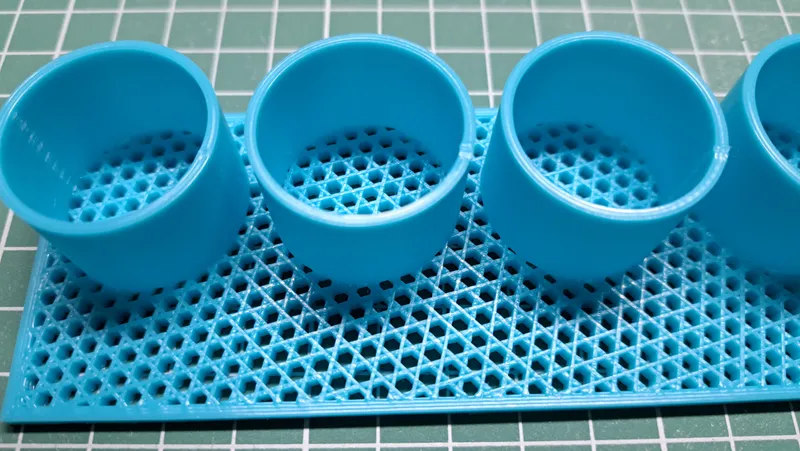

• +-33mm diameter paint pots (Citadel, AK Interactive)
  • single row - 5 slots
    • 35mm shelf.3mf - 20mm deep
    • 35mm extra tall shelf.3mf - 50mm deep
• +-36mm diameter ink pots and bottles (Liquitex, Vallejo)
  • single row - 5 slots
    • 38mm tall shelf.3mf - 35mm deep
• +-40mm diameter paint pots (Tamiya)
  • single row - 4 slots
    • 42mm shelf.3mf
• +-45mm ink pots (Daler Rowney)
  • single row - 4 slots
    • 46mm shelf.3mf - 25mm deep
• gridfinity - a nice combo with bottom with shelf.3mf
  • single row - 4 slots
    • gridfinity shelf.3mf
• make your own
  • empty shelf template
    • shelf template.3mf

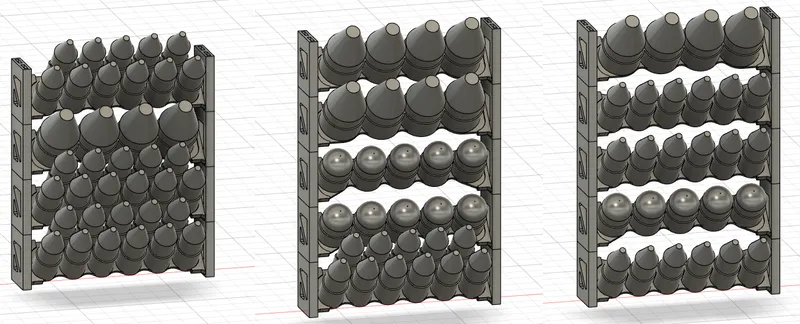

Incompatible shelf combinations

There are some incompatible combinations when it comes to the larger and more dense shelves.

The following combinations are known to obstruct/conflict each other:

Some of these incompatibilities can be resolved by using double clips as spacers. I plan to release more versions of these double clips to act as larger spacers in the future, but it should be pretty easy to modify the existing double clips to suit your needs.

Bottoms

• bottom.3mf - deeper and stable for free standing on a desk
• bottom slim.3mf - glue or customize and add your own holes to fix it to a desk/shelf
• bottom with shelf.3mf - deeper and stable for free standing on a desk with added slot for a shelf

Clips

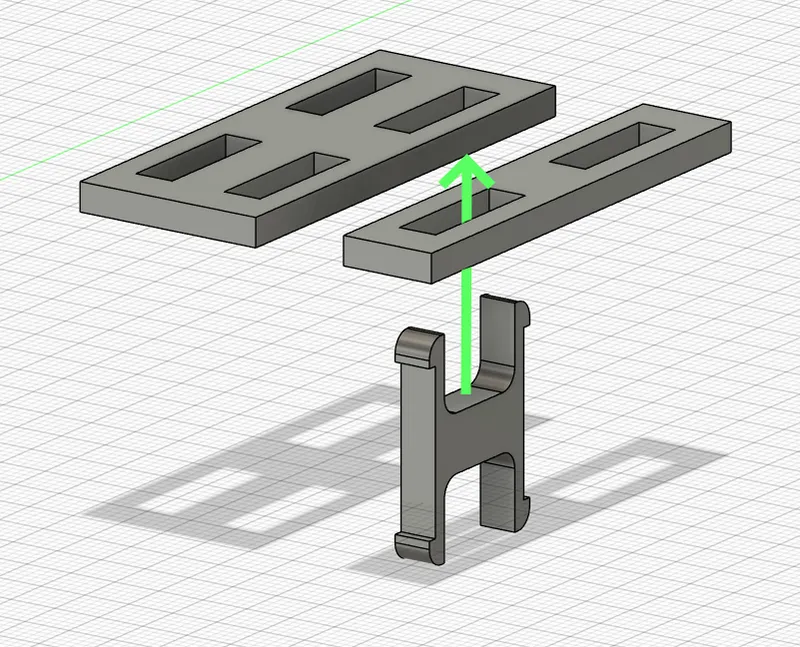

• Standalone

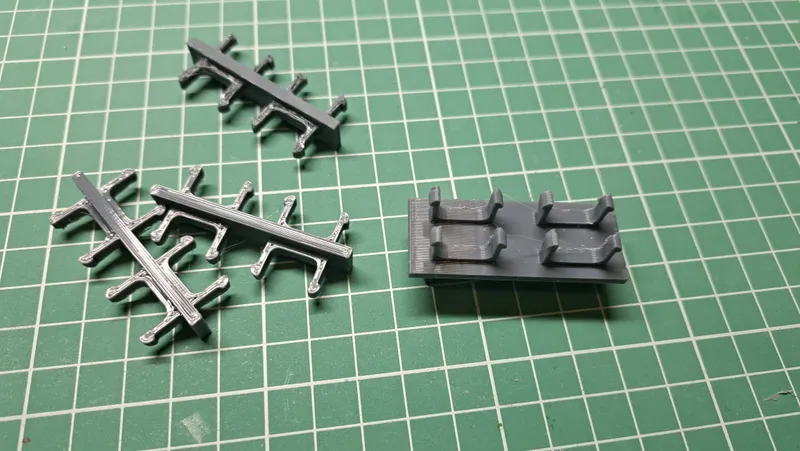

  • clip.3mf
• Joining multiple racks together
  • Adjacent racks
    • Supportless version
      • spacer supportless 2x2.3mf
      • spacer supportless clip.3mf x4

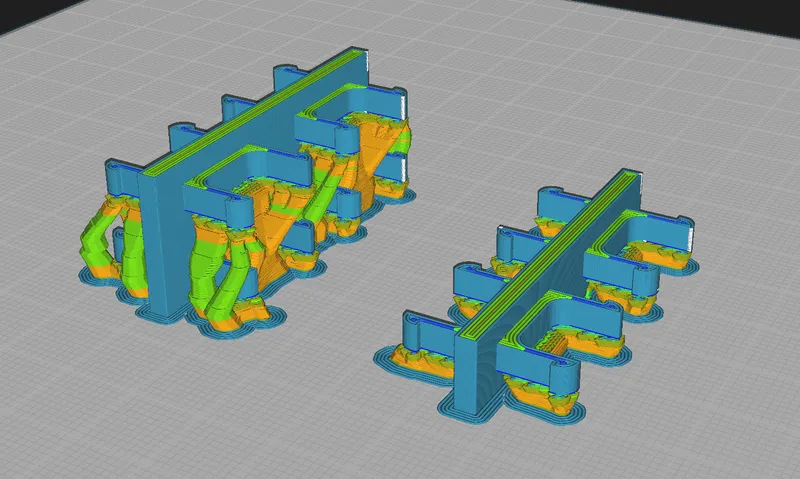

    • Supports required version
      • double clip 2x2.3mf
  • Rack ends
    • Supportless version
      • spacer supportless 1x2.3mf
      • spacer supportless clip.3mf x2
    • Supports required version
      • double clip 2x1.3mf
• Adding additional height between tiers as a 3mm spacer
  • Supportless version
    • spacer supportless 1x2.3mf
    • spacer supportless clip.3mf x2
  • Supports required version
    • double clip 2x1.3mf
• Top bracket
  • The top bracket only takes a back clip. If you want to use a spacer version then use the supportless versions with only the back clip and the front one empty. Alternatively you can use a solid version that requires supports and cut off the top front two clip ends.

Material

It is recommended to print the clips in PETG since PLA is too brittle and TPU will be too flexible. The rest can be printed in anything firm that tickles your fancy.

Print Settings

It is highly recommended to slice with exclusive tolerances if you are slicing with Cura!

Frame

Nozzle size: 0.4mm

Layer height: 0.24mm

Line width: 0.5mm

Wall thickness: 1.5mm

Top/bottom height: 1.5mm

Infill density: 20%

Infill Pattern: Cubic Subdivision

Supports: None

Slicing Tolerance: Exclusive (Cura only)

Shelves

Nozzle size: 0.4mm

Layer height: 0.24mm

Line width: 0.5mm

Wall thickness: 1.5mm

Top/Bottom height: 0

Infill density: 60%

Infill Pattern: Tri-Hexagon

Supports: None

Slicing Tolerance: Exclusive (Cura only)

By setting the top and bottom to 0 you get a nice infill pattern and save on material.

Clips + Spacer supportless clips

Nozzle size: 0.4mm

Layer height: 0.16mm

Line width: 0.44mm

Infill density: 100%

Supports: None

Slicing Tolerance: Exclusive (Cura only)

Double Clips (supportless versions)

Nozzle size: 0.4mm

Layer height: 0.16mm

Line width: 0.44mm

Infill density: 100%

Supports: None

Slicing Tolerance: Exclusive (Cura only)

Double Clips (supported version)

Nozzle size: 0.4mm

Layer height: 0.16mm

Line width: 0.44mm

Infill density: 100%

Supports: Tree

Slicing Tolerance: Exclusive (Cura only)

Assembly

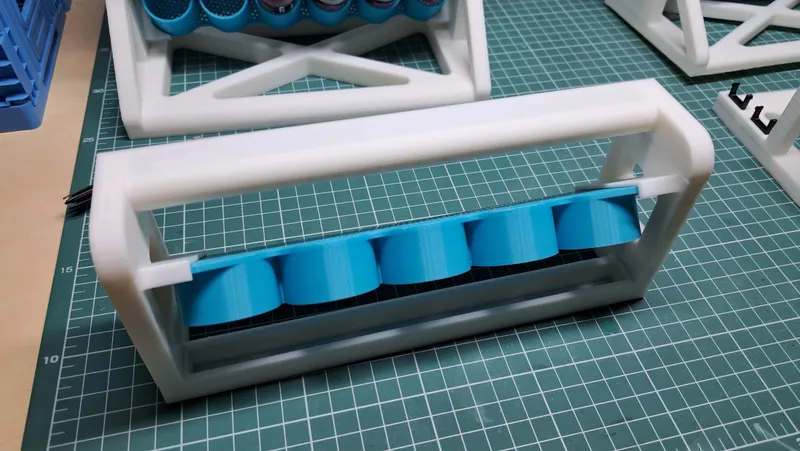

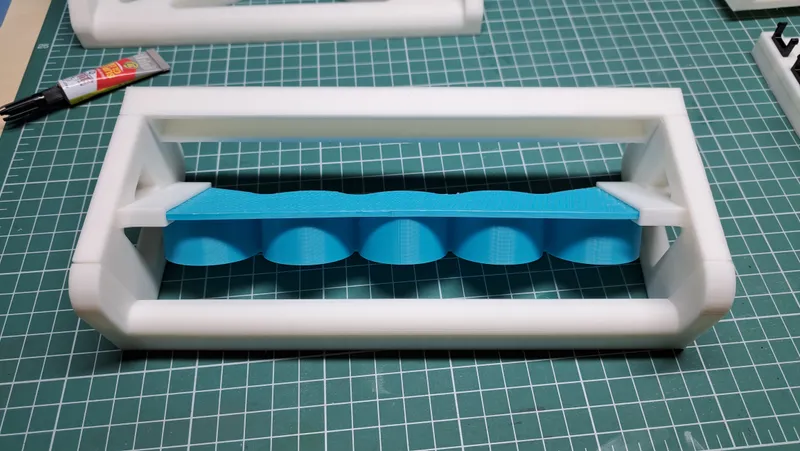

All parts are assembled together using snap in clips. You can glue pieces together if you do not intend to change anything down the line. A dab of glue is also useful to weld the shelves onto the slot of the sides to give some stability and you don't lose any modularity by gluing a shelf and its sides together. Just make sure you get the spacing right when gluing sides to shelves or you will end up with skew tiers. 2x tops or bottoms can be used as a jig when gluing.

Use the tops and or bottoms as a jig for gluing.

Standalone

Use the clips.3mf version to join all parts together.

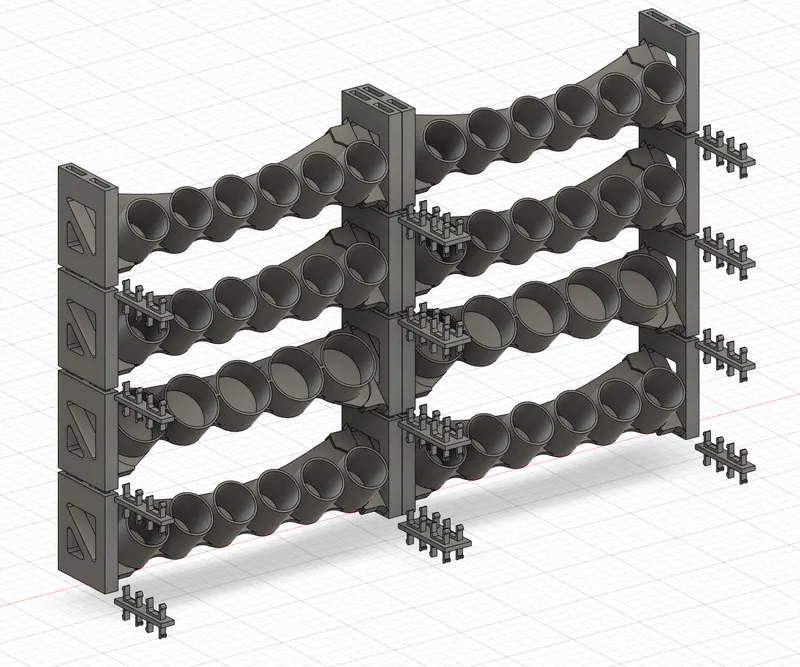

Joined Racks

Supportless version

Use spacer supportless 1x2.3mf on the outer sides and spacer supportless 2x2.3mf on the adjacent sides to join all parts together. Print the appropriate amount of spacer supportless clip.3mf to insert into the spacers.

Supports required version

Use double clip 2x1.3mf on the outer sides and double clip 2x2.3mf on the adjacent sides to join all parts together.

You will likely need to clean up one side of the clips that the supports were on to get a nice fit.

NB: These joiners are meant to be very tight to allow for large racks without being rickety or flimsy.

Version 1

The following is a summary of the parts that have been printed and confirmed.

Confirmed

• 27mm double row tall shelf.3mf
• 27mm double row shelf.3mf
• 27mm single row shelf.3mf
• 27mm single row tall shelf.3mf
• 35mm shelf.3mf
• 35mm extra tall shelf.3mf
• 38mm tall shelf.3mf
• 42mm shelf.3mf
• 46mm shelf.3mf
• bottom.3mf
• bottom with shelf.3mf
• spacer supportless clip.3mf
• spacer supportless 1x2.3mf
• spacer supportless 2x2.3mf
• clip.3mf
• double clip 2x1.3mf
• double clip 2x2.3mf
• left side wall.3mf
• right side wall.3mf
• top.3mf

The following is a summary of the parts that have not been printed and confirmed yet. If you have printed any of the below please let me know of the results!

To be confirmed

• gridfinity shelf.3mf
• bottom slim.3mf
