Ender 3 S1 Pen Plotter attachment

This allows you to attach a pen to your ender 3 S1 extruder. This enables you to let the printer write or even "draw" on a piece of paper.

2xM3 screws are used clamp the pen down

This project works with any pen with a diameter smaller than 10.85mm. This includes Sharpies. I have also created files for a pen to be printed that uses a sprint to apply consistent force down onto the paper.

--------------------------------------------------------------------------------------------

Printer Setup

Printer settings

Important Note:

Start your text or image plotting file WITHOUT the pen tightened.

The printer will level your z axis and then pause at a height.

Insert your pen into the holder and tighten only after the printer has come to a standstill.

Press the control knob to start plotting.

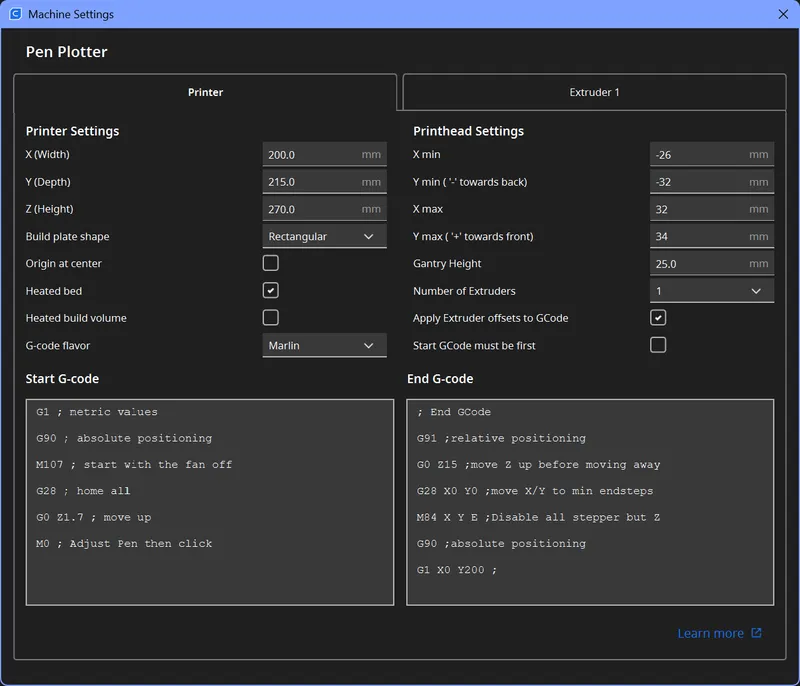

Add a new printer and change the following settings:

• X (width) = 200mm
• Y (depth) = 215 mm
• Heated bed = unchecked

Replace the Start G-Code with the following:
G1 ; metric values
G90 ; absolute positioning
M107 ; start with the fan off
G28 ; home all
G0 Z1.7 ; move up
M0 ; Adjust Pen then click

Replace the End G-Code with the following:
; End GCode
G91 ;relative positioning
G0 Z15 ;move Z up before moving away
G28 X0 Y0 ;move X/Y to min endsteps
M84 X Y E ;Disable all stepper but Z
G90 ;absolute positioning
G1 X0 Y200 ;

---------------------------------------------------------------------------------------------

Z Offset plugin

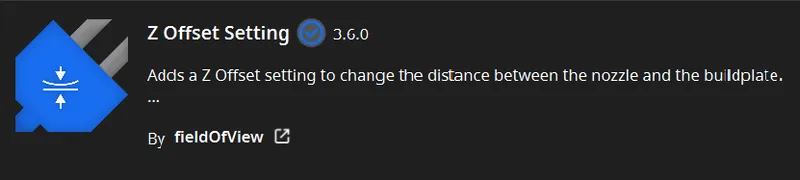

Install the free "Z offset Setting" plugin from the Cura marketplace :

https://marketplace.ultimaker.com/app/cura/plugins/fieldofview/ZOffsetPlugin

---------------------------------------------------------------------------------------------

Zip file

Download the Profile+Material.zip file and extract the files

Import both the Plotter_Print_settings.curaprofile and the Pen_material.xml.fdm_material into Cura

Or alternatively use the following slicer settings:

• Layer Height                            = 0.3mm
• Wall thickness                         = 0.3mm
• Wall Line Count                      = 1
• Print Thin Walls                      = Checked
• Infill Density                            = 100%
• Infill Pattern                             = Lines
• Printing Temperature             = 0
• Build Plate Temperature        = 0
• Enable Retraction                   = Checked
• Z Hop When Retracted          = Checked
• Z Hop Height                           = 2.5mm
• Z Offset                                    = 1.7mm (for my pen)
•                                                   = 0.2mm (for a sharpie)

---------------------------------------------------------------------------------------------

Printing Files:

Images

• Drag a .jpg file onto the cura build plate
• When Prompted, use the following import settings:
  • Height : 0.2 mm
  • Base : 0.0 mm
  • Width & Depth : your desired dimensions

Text

• Use the included Text.sldprt
  • Edit the text sketch
  • Rebuild
  • Save as an STL
