Tin Whistle

The tin whistle, also called the penny whistle is a simple six-holed woodwind instrument. It is a type of fipple flute, putting it in the same class as the recorder, Native American flute, and other woodwind instruments that meet such criteria. The tin whistle is closely associated with Irish traditional music and Celtic music.

- wikipedia

This is simple model of Tin Whistle in few different sizes, all of them were created based on Guido Gonzato's amazing tutorial.

Sound Quality

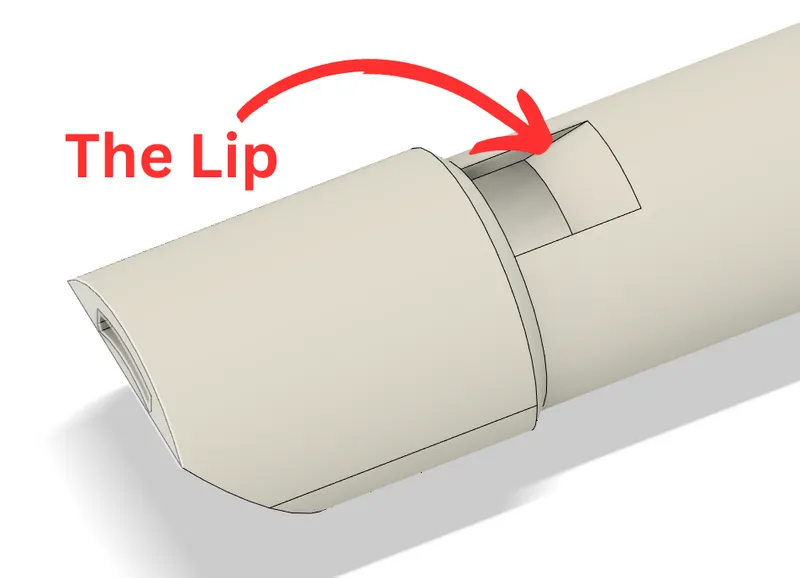

I printed few of these and sound quality is all over the place. Main culprate for this is quality of the lip. You can pay extra attention to settings in slicer. Or you can print version without the lip and use small file or sandpaper to create one.

Files

Each folder contains files for different Whistle size. There is step file that contains all parts of the whistle.

You will need to print one body and one head (with or without lip).

There is an test print file, i suggest printing test file first to ensure inner_ring and outer_ring will fit together and lip will print correctly.

Parametric version

There is F3D file that can be opened in Fusion360, the design is parametric so you can experiment with different dimensions.

Updates

• 2023-05-18
  • reuploaded all models, thanks @ANerd_486744 for pointing out that all folders contained models of same sizes
