FPV Drone Mount

Have you ever wanted to mount your drone on your backpack, but it was never convenient enough to buy a separate backpack, or buy a mount from amazon? Well now you can put your printer to use and print this amazing mount. All you need are the two printed plates and a couple of commonly found parts.

Part list:

• M3 Screw (5mm long) - 3x
• M3 Nut - 3x
• M3 Standoff (I used 8mm but it depends on thickness or your straps) - 3x

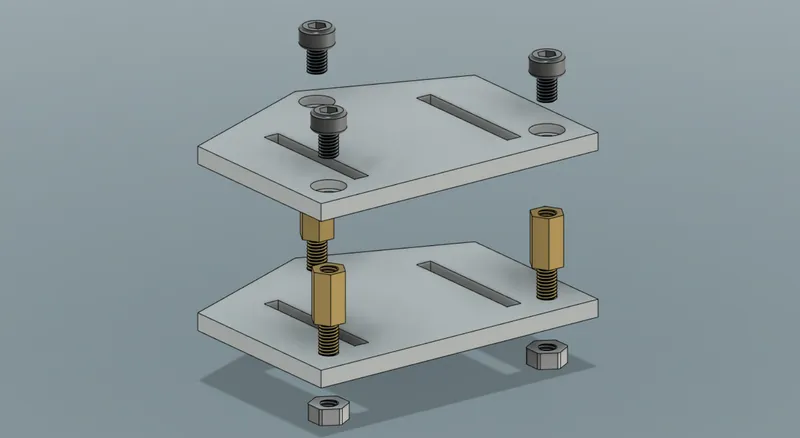

Assembly (you won't believe how easy it is):

1. Print the plates (both of them)
2. Gather together your screws and bolts and standoffs
3. Press the M3 Nuts into the bottom plate
4. Screw in the Standoffs
5. Attach the top plate

.f3d file included so you can modify it to your own belt dimensions. The belts I used were:

• Backpack belt - 20.00 mm wide, 1.75 mm thick
• Battery strap - 16.50 mm wide, 2.50 mm thick
