D&D Dice Sword - Dice Storage for Roleplaying

The Idea:

• idea and design by my good friend @just__sophiaa
• fancy sword housing a full set of Roleplay Dice
• self aligning and closing lid using magnets

Design Process:

• after her general design, I added the alignment and magnet features

• pins in the bottom and indent in the top hold the two halves aligned

• the handle houses magnets on each side, in addition to one pair in the tip of the sword

Overall dimensions:

• fits on an Ender 3 diagonally


Print recommendations:

• PLA
• 0.4 mm Nozzle 0.2 mm Layer height
• 15% grid infill

Additional Parts:

• 6 pieces of 5 mm x 2 mm Magnets (example)

Assembly:

• if you want to add the magnets, you'll have to insert them while printing before the openings get closed
• I had the printer run a bit slower and placed them mid print, you can also add custom gcode to initiate a pause
• remember the magnets polarity, so all are the same and the top and bottom half attract each other after everything is closed up

Bottom Half:

last open Layer: 80

Top Half:

last open Layer: 17

Related Models:

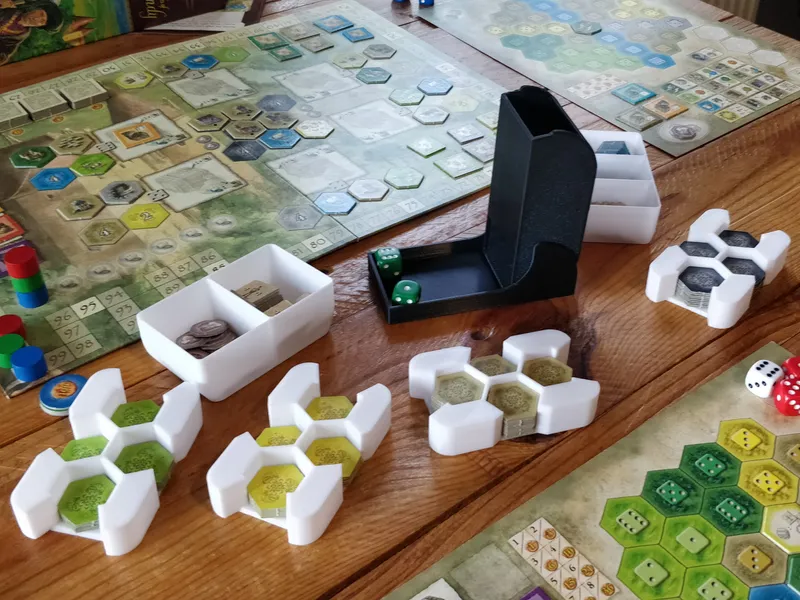

The Castles of Burgundy Dice Tower (Die Burgen von Burgund)
