Stream Deck Keyboard Mount v2 (Mountain.gg Everest Keyboard)

Holder for a 15 Button Stream Deck MK1 to a mountain.gg Everest keyboard.

An evolution or improvement of my previous mounting bracket model that relied on small magnets and was overall kind of useless as it turned out after a bit of use.

This one requires a bit of force to push into the horizontal gaps on the back that are also used by the newest addition, the Macropad. It's designed to be used on the right side of the keyboard, around the back right USB C port. On the pictures you see the 15 degree variant. As can be seen on the pictures, I'm using a bunch of extra magnet feet segments from the mountain keyboard to lift up the back even higher than “normal”.

I split the body from the gap connector and then just mirrored stuff, those are the left variants of the various degrees to be mounted on the left side of the keyboard. Should work just fine, however are untested.

Edit: I added 30, 35, 40 & 45 variants of both sides & test print models, which are 10mm in width. Those models are even worse from a pure modeling perspective:

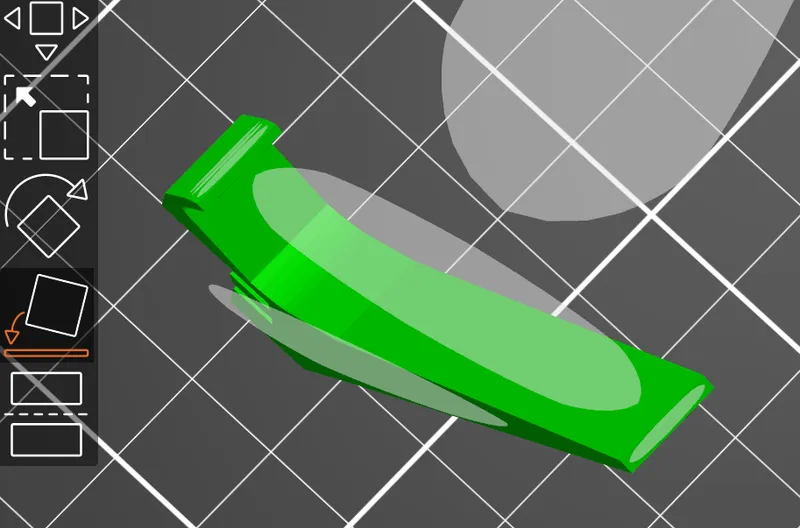

 and are acting up in a slicer software, :

Quite the shitty job, but just import and manually y-rotate by 90deg and then mov into the build plate and they should still print fine and are just meant to find the right angle. With 5% lightning infill it'll be a 4-5g waste of filament, whereas the full model with 10% honeycomb infill will net you 44-56g in comparison.

I did include the cable bracket from the previous model here once again to be glued to whatever position on the back you want.

On my Prusa it prints perfectly without any kind of supports.

Certainly not the prettiest or most refined model, however seemingly very sturdy and does it's job.
