BabyApex 2.5" Apex

Hope you enjoy my little babyApex, a scaled version of the famous impulseRC Apex.

This was developed to be tiny freestyle quad to be flown in my backyard.

Running either the nebula 14mm nano or the nebula 19mm pro camera.

weight with the nano camera is 114g

3mm carbon arms and 2mm carbon top and bottom plates

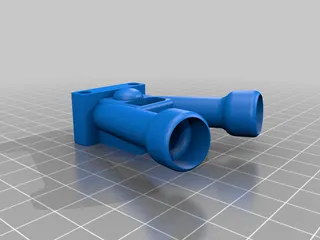

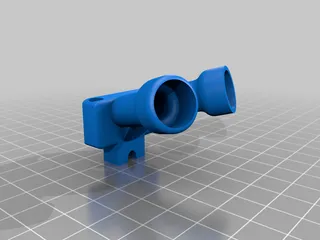

laser cut battery pad and all custom TPU mounts

2 x versions of the frame, 1 with a carbon camera mount that can be used with the 14mm nano camera, or the wider frame with TPU camera mount for a 19mm camera

16x16 stack flywoo or HGLRC FD413

Caddx Vista

CRSF

battery Tattu 650mAh 3s

have tested both 1106 6000kv and 1206 4500kv motors

the tune is still a work in progress

tested props:

HQ DURABLE PROP T2.5X2X3V2Sfavourite

HQProp Durable Prop T2.5X3.5X3

Azure Power 2540 Tiny Durable

HQProp Durable Prop T2.5X2.5X3

Hardware required

23mm

18mm

m2 x 8mm x 16

m2 x 6mm x 16 (motors)

m2 x 9mm x 4 (frame)

m2 x 25mm x 4 (Vista)

mc x 16mm x 4 FC

m2 nut x 8

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

Yes

Resolution:

200

Infill:

100

Filament: eSun TPU
