Washington, Katahdin, Mansfield, Greylock 3D Maps

TinyMtn Free Pack 12 - New England

This is a package with 3D model files for four high points in New England, USA

Mt. Washington, 6288 ft / 1917 m
Mt. Katahdin, 5268 ft / 1606 m
Mt. Mansfield, 4393 ft / 1339 m
Mt. Greylock, 3487 ft / 1063 m

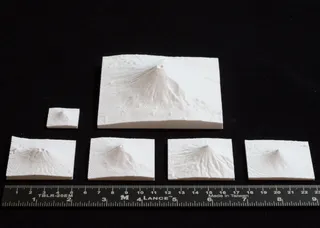

Each represents a square patch of ground 12.5km on a side, and measures 50mm at 1:250000 scale.  At that size, each model can print in about an hour, but if you want faster printing or larger models, use the following guide:

Factor   Size   Scale   Time
50%    1"/25mm   1:500000   20 min
100%   2"/50mm   1:250000   1-2 hrs
200%   4"/100mm   1:125000   4-6 hrs
400%   8"/200mm   1:62500   8-15 hrs

In addition, there are two versions of each model: a standard version with a short and consistent base, and a (usually) taller version which represents the entire feature from sea level to summit. Print the former if you want to compare the mountains by height above their base, print the sea level versions if you want to compare mountains by their absolute elevation.

There is text embossed 0.6mm deep on the bottom of each model. This fits ideally whether you want to print these models at 0.1, 0.15, 0.2, or 0.3mm layer thicknesses.  We recommend adaptive layer thickness between 0.15 and 0.3mm as a compromise between quality and speed. When printing larger models, consider adding "ears" to each corner to prevent pull-up. Do this in Prusaslicer with right click->Add Shape->Cylinder, then scale it to about 10mm diameter and 0.4mm thick, and copy one to each corner. You can easily snip these off the final print.

If you found these files useful and want to see more, please drop $1 in the donation link, click on like, and/or post a make. Thank you!

Mark
Founder, TinyMtn and MiniCity

TinyMtn has been designing and printing 3D mountains for over a decade. We have over 1000 different models on Shapeways - many in full color - and build custom artworks large and small for all sorts of purposes.  In addition, our sister site MiniCity.Art produces massively-detailed and carefully assembled 3D models of cities. Each of over 60 cities can be ordered in multiple sizes, with the largest artworks covering 10 square feet or more. Visit our massive catalog of 3D landscapes and cityscapes at the following sites:

http://tinymtn.com

http://tinymtn.etsy.com

http://minicity.art

http://minicityart.etsy.com

https://society6.com/summerstreet

(C) 2023 TinyMtn (TM)
Models created using GDAL, NetPBM, Gmsh, Carve, MeshLab, and other custom software
Source of digital elevation data: U.S. Geological Survey
