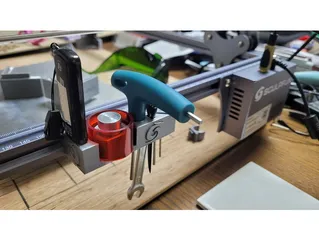

Sculpfun S9 air assist with Brassnozzle, for Tube Ø12; Sculpfun S9 Air assist mit Messingdüse für Schlauch Ø12

Model for S9 Airassist and an Silicone tube Ø12x2 (Inner diameter=8mm).  After Printing drilling with an 5,0mm Drill and M6 Tap are required.

Additional ab O-Ring 11mm x 2mm (Innder diameter x cord size) is need.

Becaus of Airflow-tests with the Sculpfung pump (30L/min and 0,03Mpa) its recommendet to usw a nozzlediameter of 1 or better 1,5mm.

I prited it with Fiberlogy PA12-CF15 on a Prusa mini+

Addaption of the modell from Martin Arael to fit for an tube Ø12 x2 (Outer Ø12; Ø8 inner diameter)
