RatRig V-Minion X-axis 10mm Belt + 4028 Fan EVA3

Hi,

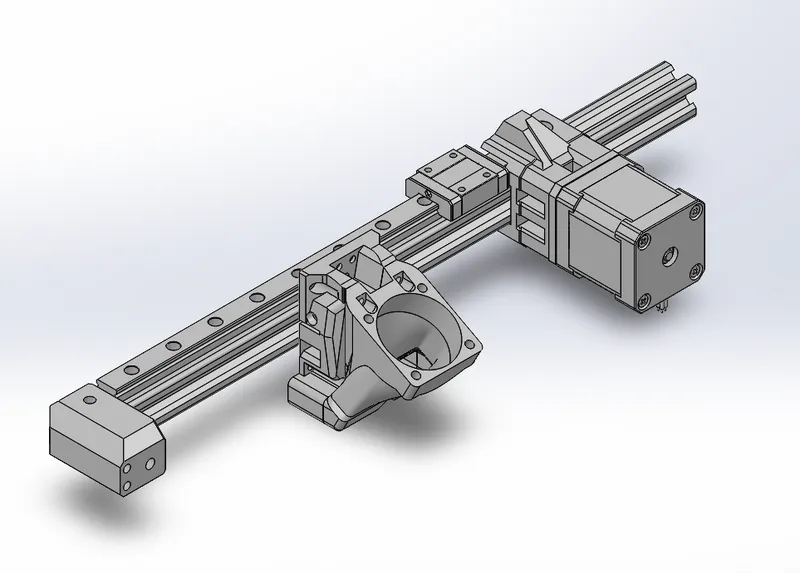

I've created mod for V-minion - which is replacing 6mm belt with 10mm belt. New X motor cage also fixes issue with X endstop - EVA3. I also decided to change air duct of 4028 fan - just for better looking. Additionally - X idler - 3d printer part is reinforced with 35mm screws - to make whole part stiffer - please use heat inserts.

Default 5015 EVA3 fan duct fits to new back plate W/O any issues.

BOM:

> 650mm 10mm belt

> Toothed idler 10mm 20T - 5mm

> Pulley 10mm 20T - 5mm

> 4x M3 30mm screws - X motor

> 1x M5 30mm screw - X idler

> 2x M3 35mm screws - X idler

> 2x M3 8mm screws - 4028 fan duct mount.

> a lot of heat inserts M3x5mm

> the rest parts, You should be able to reuse from default BOM.

All 3d printed parts - should be printed W/O any supports.

Enjoy
