Coaxial power connector splitter case

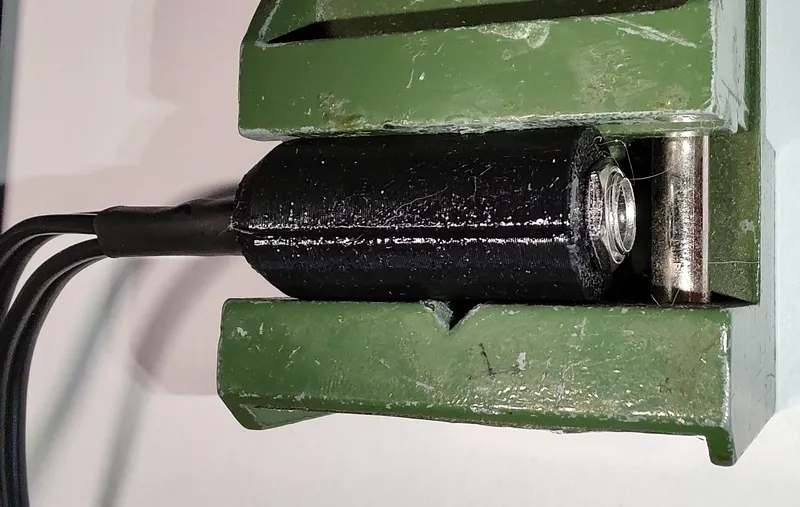

Model is used as casing/housing for female coaxial power connector/barel jack connector (panel mount type). On one side of the housing there is hole for connector mentioned above (diameter 8 mm). On other side of the housing there is squared opening for cables - for two pairs as casing is meant to be used as splitter.

Print settings:

• Layer: 0.2 mm
• Brim: recommended
• Supports: no

Assembly instructions:

1.  Remove brim from all parts. Clean cable cutout on cap part (there is one full layer for better bridging)

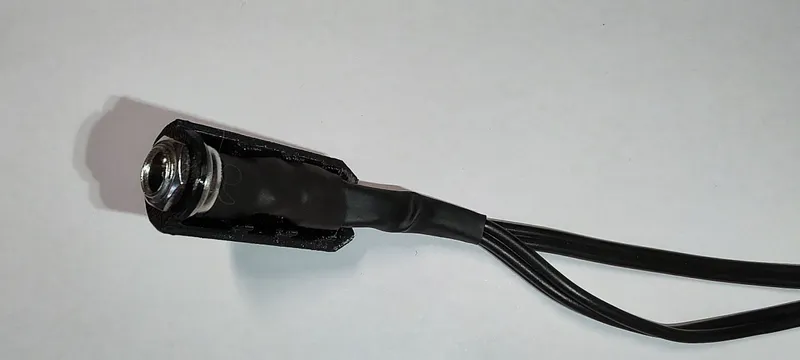

2. Solder 2 pairs of wire to female connector (use heatshrink for isolation if needed). Mount female connector to body part.

     3. Glue cap part to body part.

Updates:

22.03.2023

• Initial release
• Body_V1, Cap_V1
