Sunset over Tatooine - 45 rpm Record Adapter - Star Wars Miniature Diorama

The Idea:

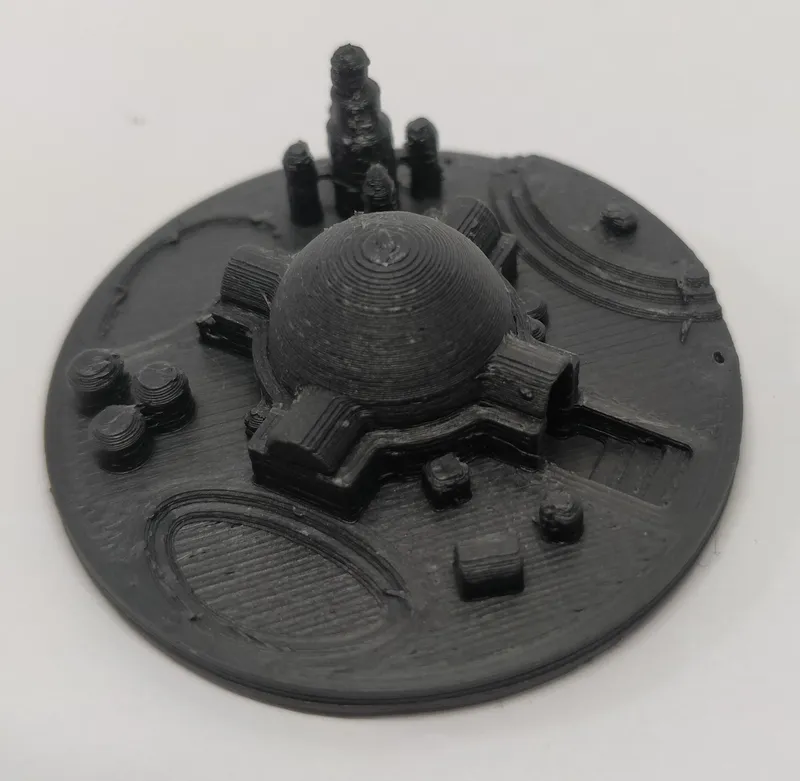

• Miniature model of Luke's home on Tatooine
• maximum possible detail for 0.4 mm Nozzle
• including: small hill where he looks in the sunset, three barrels to the side, lots of junk around the hut, communication tower
• hide an up to 15 mm long record player pin


Design Process:

• for the suns I made some spheres as small as possible with a hole in the middle
• the base has two holes as well, so you can feed a wire through and position the suns as you which

Overall dimensions:

Tatooine:

Suns:

Print recommendations:

• PLA
• 0.4 mm Nozzle 0.12 mm layer height
• 15% infill
• I also changed the extrusion width to 0.4 mm to achieve a bit more detail
• also set “Minimum perimeter width: 25%” and “Perimeter transition length: 0” shouldn't be necessary, but gave me a bit more detail

Post Processing:

• I had to clean up some stringing, especially between the dome and the communications tower

Additional Parts:

• piece of wire, about 3 cm if you want to add the suns

Assembly:

• glue in the wire on one end
• thread the suns on
• glue in the other wire end
• position and glue the suns in place

Related Models:

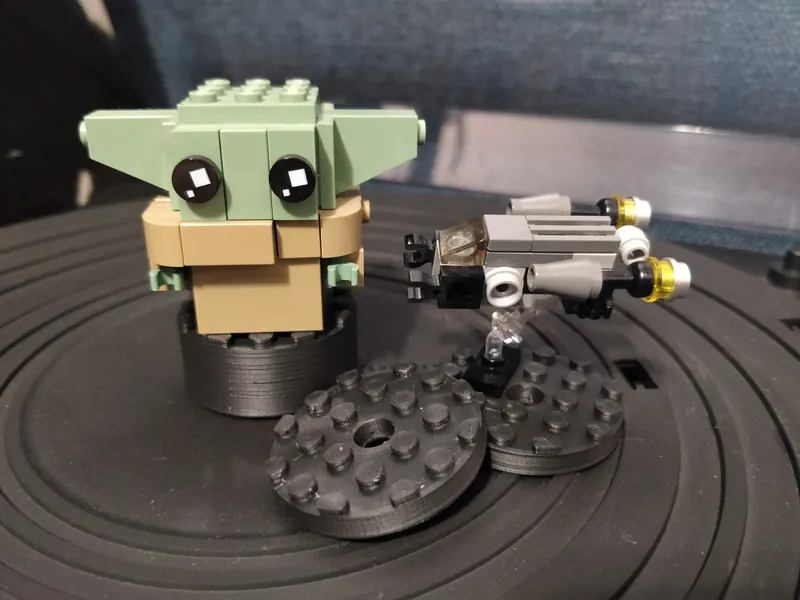

LEGO plate - 45 rpm Record Adapter (open and closed version) - Lego compatible
