ToroSpin (Toroidal Propeller Launcher)
Propeller launcher with planetary gearbox (bearing/no bearing type).
In the contest Make It Fly
121
555
1
4911
updated
March 30, 2023
Description
PDF
NEWS:
- new model on: https://www.printables.com/cs/model/436375-torospin-turbo
- Add no bearing kit, see bottom.
Printing:
- No supports!
- Recommended material for gears is PETG, see below to BOM.
BOM:
| Printed parts | |||
|---|---|---|---|
| Item | File | Qty | Description |
| 1 | 1.stl | 1 | PETG |
| 2 | 2.stl | 1 | PLA |
| 3 | 3.stl | 1 | PETG |
| 4 | 4.stl | 1 | PLA |
| 5 | 5.stl | 1 | PLA |
| 6 | 6.stl | 1 | PLA |
| 7 | 7.stl | 1 | PETG |
| 8 | 8.stl, 8Low.stl | 1 | PETG, (1.) |
| 9 | 9.stl/9V.stl | 1 | PETG, (2.) |
| 10 | 10-planet.stl | 4 | PETG |
| 11 | 11-sun.stl | 1 | PETG |
| 12 | 12-ring.stl | 1 | PETG |
| 13 | Tor_170.stl, Tor_200.stl | 1 | Propeller (3.) |
| - | Tor_base.step | - | to create remixes |
- 8low-bed.stl is for printer bed size under 250x210mm.
- 9V.stl-vertical, it's a second option of stick.
- 170mm or 200mm toroidal propeller
| Purchased parts | |||
|---|---|---|---|
| Item | Part | Qty | Description |
| 16 | 623 | 6 | Bearing 3x10x4mm |
| 17 | 6800(61800) | 4 | Bearing 10x19x5mm |
| 18 | M3x20 | 5 | Countersunk screw (DIN 7991) |
| 19 | Washer 3,2 (M3) | 7 | Washer (DIN 125) |
| 20 | Nut M3 | 4 | Nut self locking (DIN 985) |
Optional
| Parts for grip | |||
|---|---|---|---|
| Item | Part/file | Qty | Decription |
| 14 | 14.stl | 2 | Grip/optional |
| 15 | 15.stl | 2 | Grip/optional |
| 18 | M3x20 | 4 | Countersunk screw (DIN 7991) |
| 21 | Square nut M3 | 4 | Flat Square Nuts (DIN 562) - Grip/optional |
Assembly:

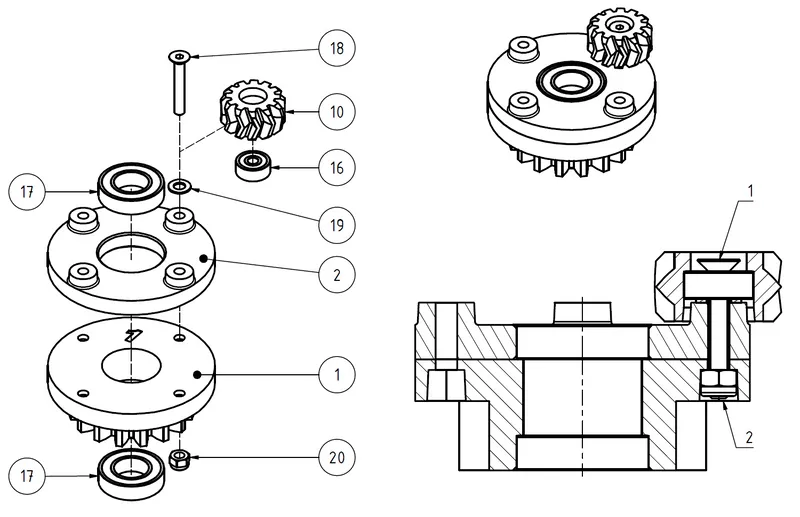

Step 1:
Note:
- Screw 18 tighten until nut 20 press to groove, then loosen the screw until surface (note 2) is smooth.
STEP 2:
STEP 3:
STEP 4:
Screw 18 tighten slightly.
STEP 5:

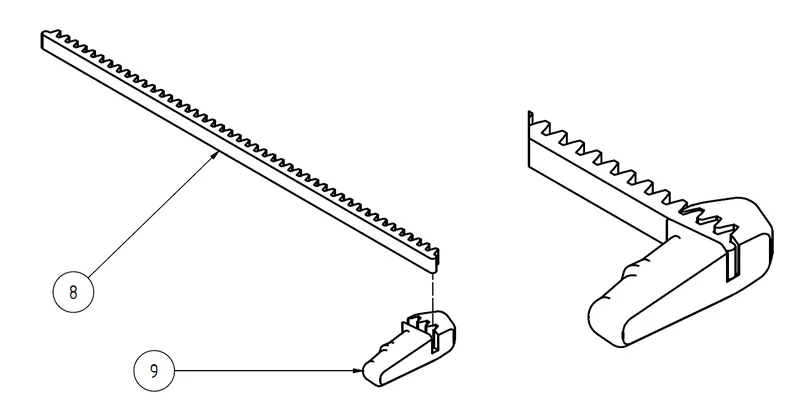

STEP 6:
STEP 7: Let's fly!!

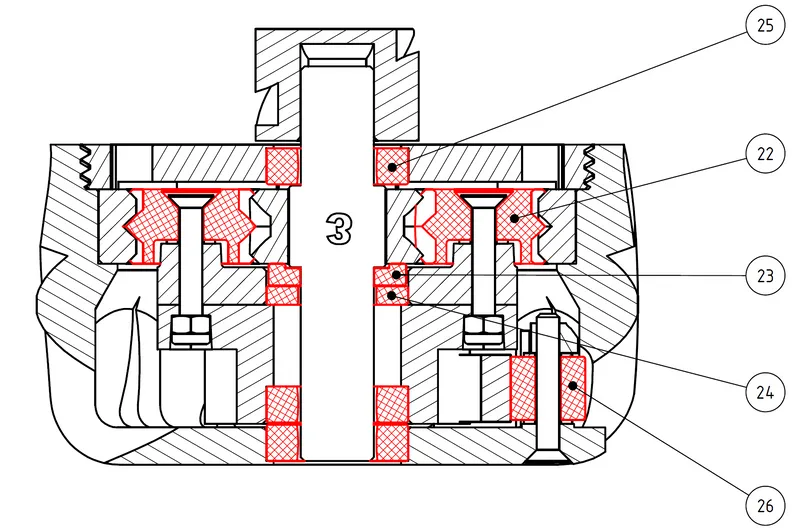

NO BEARINGS KIT :
This set replace all required bearings.
| Printed parts | |||
|---|---|---|---|
| Item | File | Qty | Description |
| 22 | 10-planet_NB | 4 | PETG |
| 23 | 1NB.stl | 1 | PETG |
| 24 | 2NB.stl | 1 | PETG |
| 25 | 3NB.stl | 3 | PETG |
| 26 | 4NB.stl | 1 | PETG |
Use washers in the same places!
