Top and Bottom Thickness Gauge for Multi Color Prints

Use these prints to make decisions about what thickness to use(# of walls and top layers) on multi color parts.

These are designed for 0.2mm layer heights and a 0.4mm nozzle size.

Top and Bottom Gauge is in 0.2mm increments: 0.2, 0.4, 0.6, 0.8, 1.0

Wall Thickness Gauge is in 0.4mm increments: 0.4, 0.8, 1.2, 1.6

Be sure to check the Strength→Detect thin walls check box. Or else the top of the model will be lost in bambu slicer.

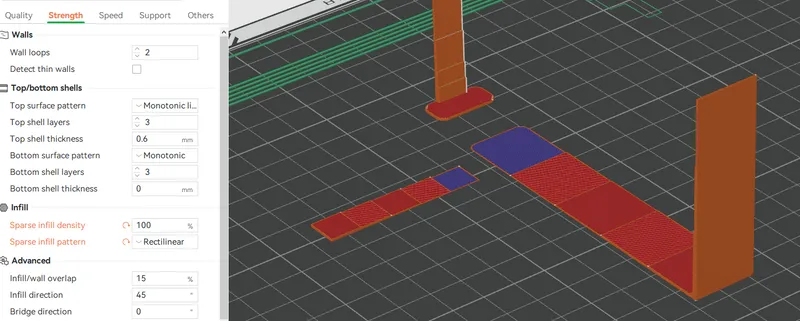

Not checked:

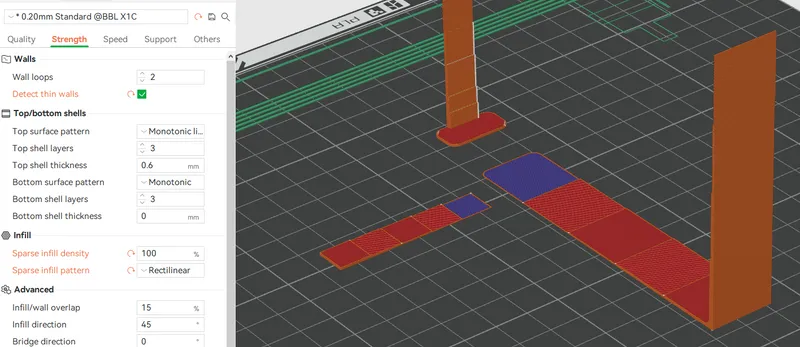

Checked:
