Raspberry Pi 3 B+ Case Skadis Mount

Print Files

You can find actual RPi Case here.

And the Attachment System here.

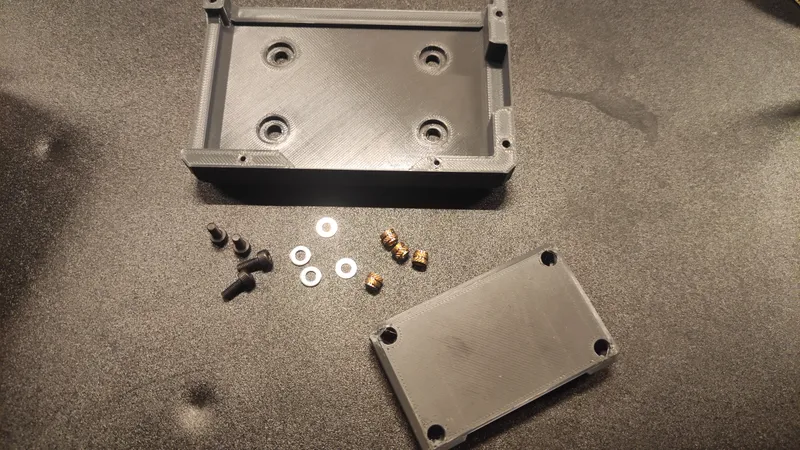

Needed Materials

• 4x   M3x8 Screws
• 4x   M3 Heatset Inserts
• 4x   M3 Washers

Printing

• No Supports needed if you put the models in the right orientation ;)
• Make sure that your printing and material profiles are sufficiently tuned for overhangs and bridges.

Assembly

RPi Mounting:

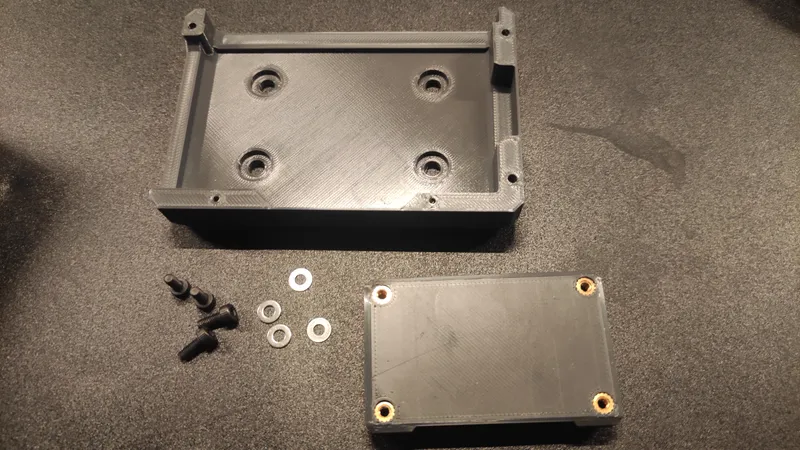

Start by melting the heatset inserts in.

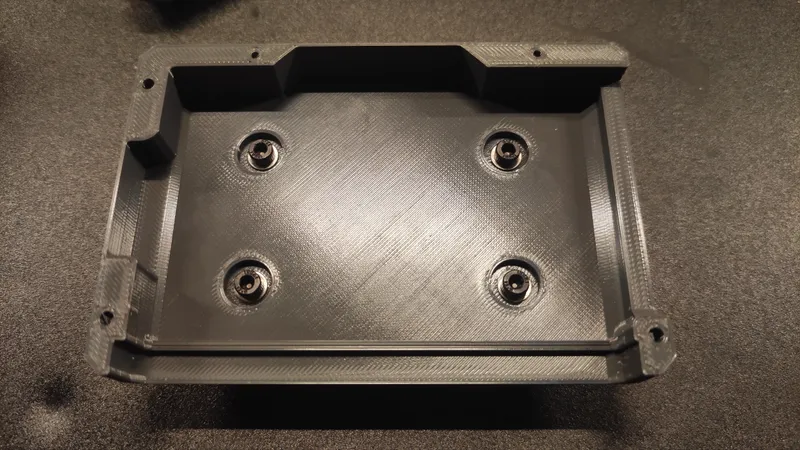

Then screw the bottom of the casing to the mount (don't forget the washers!).

Now you can asseble the rest of the casing.

For the other side of the mounting:

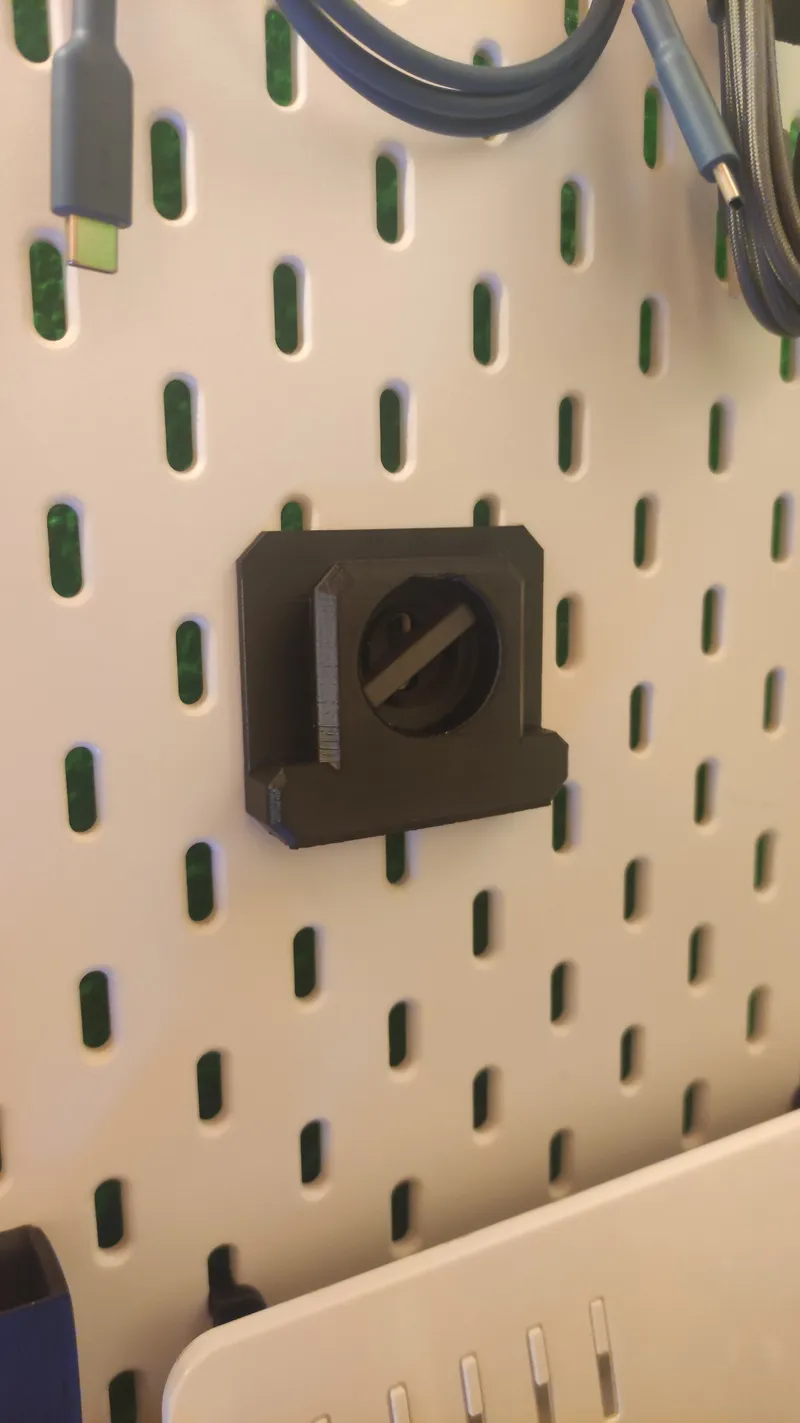

Just hold it up to your Skadis board, pushe the T-Clip through the slid and twist it, somewhere between 45 to 90°. Its pretty tight so don't overdo it.

You're done!


Now you can simply hang the Raspberry Pi Casing onto your Skadis Board and
quickly remove it, if you want to use it somewhere else.

Good luck with your projects and

Happy printing!
