Spotify code Keychain with Shopping Cart Coin

Almost same procedure as in the original

Copied from:
https://www.printables.com/model/84034-spotify-code-customizable

Credit to:
https://www.printables.com/social/18463-pdor_projects


Description

Let me know in the comments if you find any kind of problems and I'll try my best to solve them. I have uploaded 4 examples as demo prints for everyone, for the customization read down below.
I can't wait to see your makes and remixes!

Spotify codes packs now available
I'm going to create packs for those who like my design but don't have the knowledge or the interest in taking time to customize it. So I'm creating them for you!
Here down below there's a list of the packs available that you can check out (it will be updated everytime I post a new one!):

1. Anime pack 1 (2022/03/12)

In case you want me to customize it for you I take commissions for 1€ each (on paypal), just email me at [email protected]

Also considere donations if you like the design!
It would be really appreciated.

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

No

Resolution:

0.15

Infill:

15 - 20 %

Filament:

 Prusament PLA

How You Can Customize It

I tried to keep everything as simple as possible so that anyone with a basic knowledge of fusion 360 can make his own Spotify code. The only skills you need to have in fusion 360 are:
1) Knowing what is a sketch and how to work with it and edit it.
2) Knowing the basics of the extrude command.
3) How to import an SVG file.
4) Export a file in .stl format.

If you want the title (on the back) to be written with the Spotify font, you have to install on your pc the font called "Gotham bold" (it's not intalled by default).

Step 1

Getting the Spotify code

First of all you need to get the Spotify code of the song you want in an SVG file.
We'll use this website to get it:

https://www.spotifycodes.com/

The website needs the url of the song. You can find it as shown here:

Then you'll have to paste the link in the website:

Last thing to do is to download the code in the SVG format:

Step 2

Import the template

You have to download the provided file called template.f3d here on thingiverse and import it in fusion 360.

Step 3

Import the SVG file

Now you'll have to import the SVG file in the design. Open the fourth sketch int the timeline by double clicking on it (the one showed here):

Go to Insert→Instert SVG an choose your file.

After you've selected your file, you also have to scale the SVG at a scale of 1.2148 (I know, it's a weird number, but this way I kept the same size as the old design that I thought was just fine).

Now the SVG should be perfectly alligned with the design (use the logo as reference for the allignement) and you can finish the sketch that has been created.

Step 4

The extrusion of the code

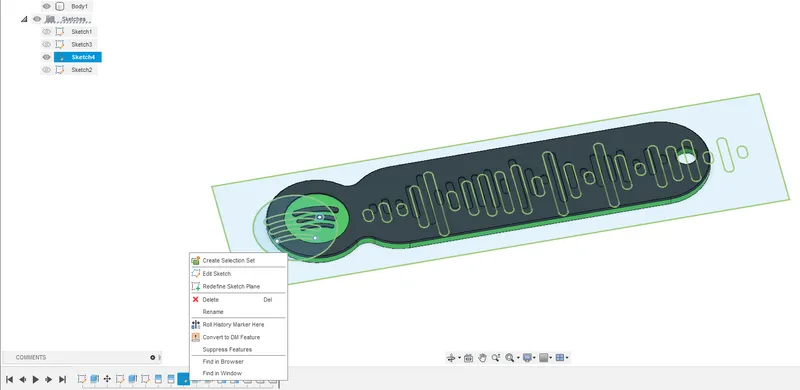

First, roll back the Timeline by right clicking on the fourth sketch again an choose "Roll History Marker Here". Make sure the sketch is visible and start an extrusion and select the bars of the code all at once as shown in the pic below, dragging from point 1 to point 2 to select them (it's important for selecting only the bars and nothing else with them).
Then make a cut extrusion through the surface with a 0.4mm depth.

You should end up with something like this:

Step 5

Title and author

Open the second sketch int the timeline by double clicking on it (the one showed here):

Double click on the text and edit the title and author (edit also the text height if needed to fit everything better like in my case).

Finish the sketch and it should look similar to this:

(don't worry about the color of the letters)

Step 6

At last roll the timeline back to the end by grabbing the gray marker an moving it behind the last operation.

All done!

You've finished!
It's ready to be exported as an STL.

Slicing

When you slice the model at a 0.15 layer height, the color changes should be done after the first 2 bottom layers and before the last two top layers (probably switching back to the color of the bottom ones), as shown here:

This pic shown here is taken in Prusa slicer.
