Cable Chain for Elegoo Neprune 3 PRO
Description

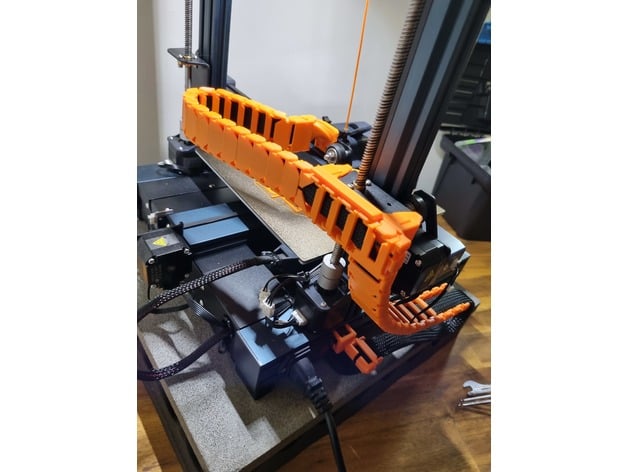

PDFThis is a remix of the cable management chain for the Elegoo Neptune 3 PRO printer.
I recommend downloading the .zip file ! and read notepad ! I recommend printing .3mf
Please read the assigned notepad.
The upper X chain is not needed. It squeaks and makes various noises when used, also pulls cable unnecessarily. I do not recommend using it.
You need to turn the 8 links of the chain the other way around at the top. 30 chain links in total.
You can sand down some parts, but first check if this is really necessary.
Print Settings
Printer Brand:
ELEGOO
Printer:
ELEGOO NEPTUNE 3 Pro
Rafts:
No
Supports:
Yes
Resolution:
0.2 mm
Infill:
20 - 30% or all perimetres
Filament: AURAPOL PLA BLUE Post-Printing =============
Fix Clip
Volume down, sorry :) If some Clips do not hold lightly its ends and squeeze, so as to shorten the distance.
Volume down, sorry :) If some Clips do not hold lightly its ends and squeeze, so as to shorten the distance
Z mount connection
Glue the two parts of the Z mount. The top edge must be lined up. Alternatively, you can sand it. To fit perfectly. Please use plenty of glue !
Glue the two parts of the Z mount. The top edge must be lined up. Alternatively, you can sand it. To fit perfectly. Please use plenty of glue !
Power stretching solution
If some Clips do not hold lightly, its ends and squeeze, so as to shorten the distance
Power stretching solution. If some Clips do not hold lightly its ends and squeeze, so as to shorten the distance
Cable change axis.
If you can't bend the cable perfectly you don't have to use Clip here like I did.
If you can't bend the cable perfectly you don't have to use Clip here like I did.
Extruder cable
Remove the original cable holder and use the same screws to add the printed model.Tighten the screws gently !
Remove the original cable holder and use the same screws to add the printed model.Tighten the screws gently !
base assembly
- INSERT THE LOWER PART INTO THE TRACK (BOTH BEAKS)(SLIGHT PRESSURE ON THE UPPER BEAK) 2. PUSH THE UPPER PART INTO THE GROOVE (IN CASE IT DOESN'T WORK PRESS THEM TOGETHER AND INSIDE THE GROOVE).
This model reduces the twisting of the cable to the sides.1. INSERT THE LOWER PART INTO THE TRACK (BOTH BEAKS)(SLIGHT PRESSURE ON THE UPPER BEAK) 2. PUSH THE UPPER PART INTO THE GROOVE (IN CASE IT DOESN'T WORK PRESS THEM TOGETHER AND INSIDE THE GROOVE)
