Desk Cable Management Clip Print-in-Place

A larger size of my PC Cable Management Clip with a clamp for desk mounting, With two versions 1-22mm and 18-43mm, the clip will stick out around 55mm when closed

I may have over done the size a little bit but it should handle any amount of desk cable clutter you can throw at it

Disclaimer:

Pic 2 is not my actual desk cable clutter, image for ilustration purposes only haha

Warning!

This model uses a lot of fast retractions on the screw and it will shake your printer quite a bit at higher speeds, it also uses a lot of bridging, make sure you have a good cooling setup before trying to print this, a single 4010 blower will not cut it for this model

I didnt design it to be a torture test honest, but it kind of turned out that way

Clean Up:

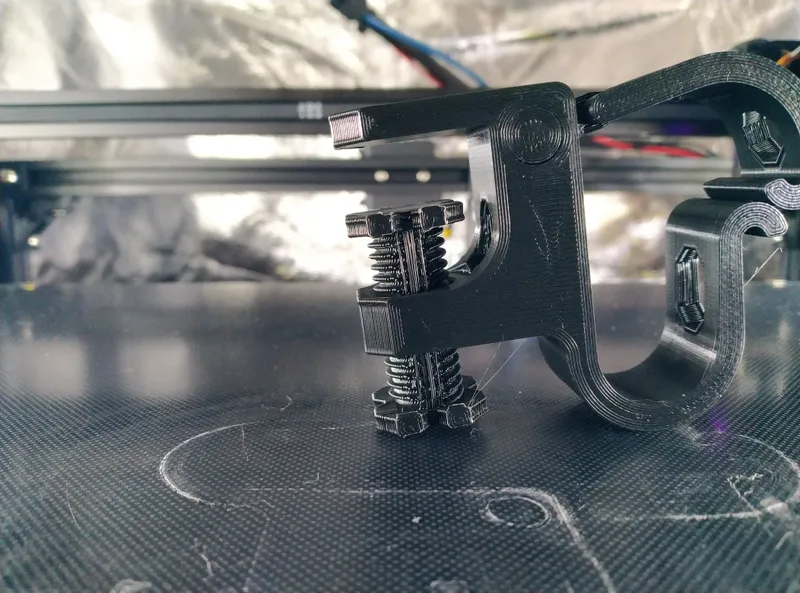

1. The latch may be free to rotate when removed from the buildplate, if not it will only be held in place by minor stringing, i recomend opening the latch more to break it free if necesary, when the latch is free to move closing it will pop the support stick out from the corner of the main body

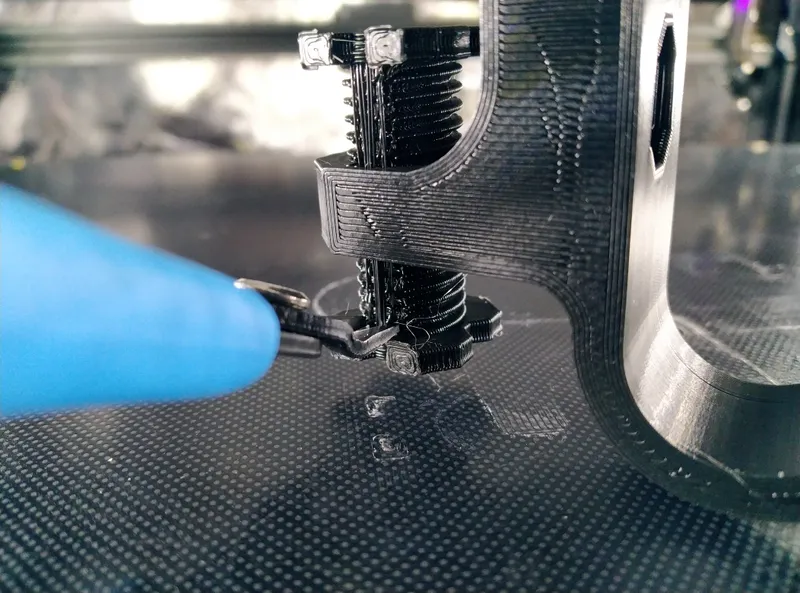

2. Cut the support bridge at the top and bottom of the threads with side cutters or a craft blade

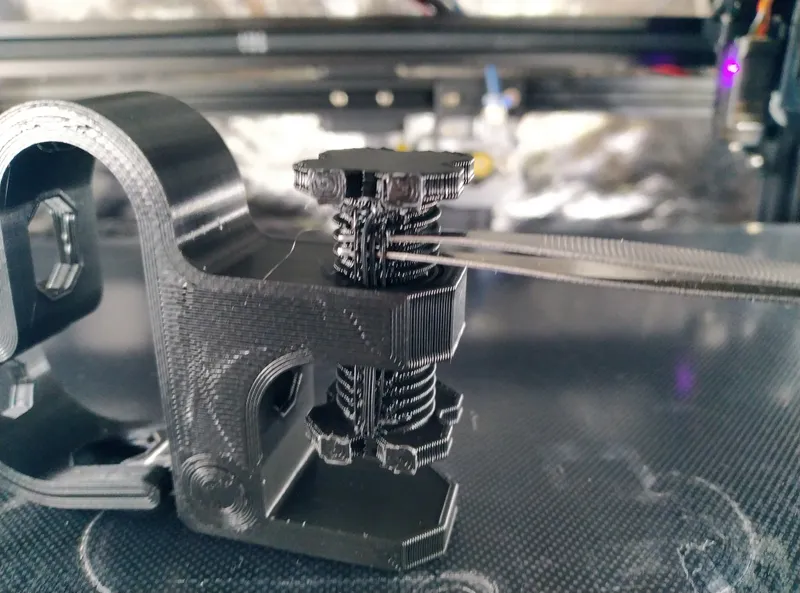

3. Use tweezers to fully separate the bridge from all the exposed threads

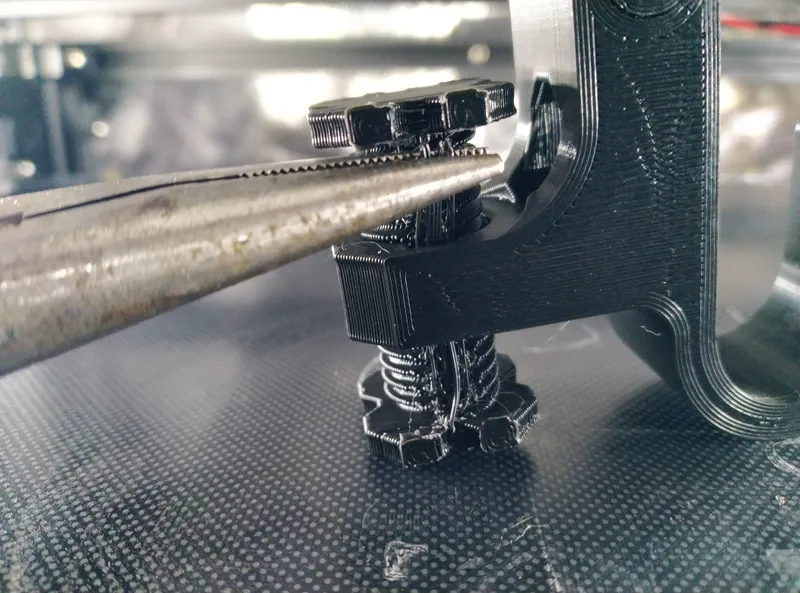

4. Use needle nose pliers to pull the bridge out, it may snap off inside but as long as you get most of it you will be ok

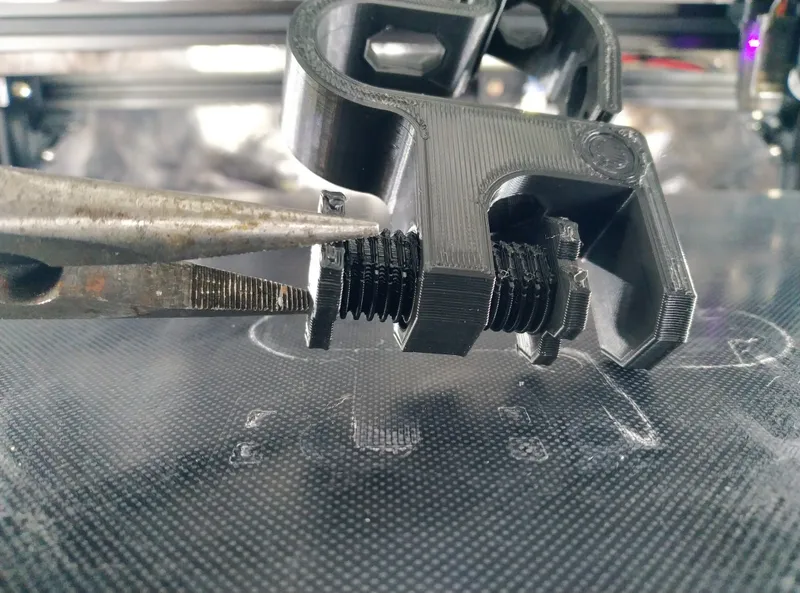

5. Use the needle nose pliers to grip the bottom of the screw and turn it gently but with a good amount of force, when the screw breaks free just wind it from top to bottom a couple of times and now it should be free enough to turn by hand

Print Settings:

Standard Cura settings for PLA, 0.4mm nozzle, low quality preset (0.28mm) unless specified

Minimum wall line width: 0.3mm

3 walls

3 top and bottom layers

15% infill

Bridging enabled
