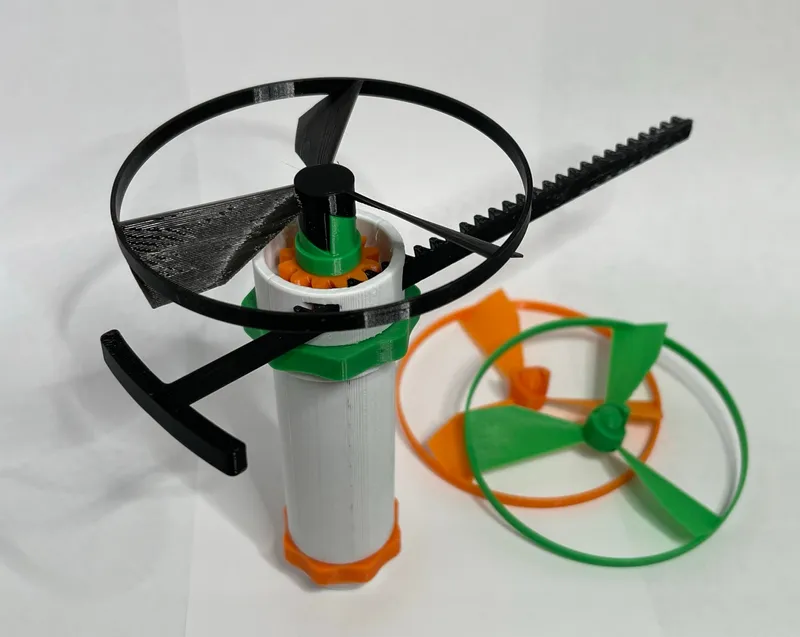

Ripcord Propeller Launcher

Additional Hardware

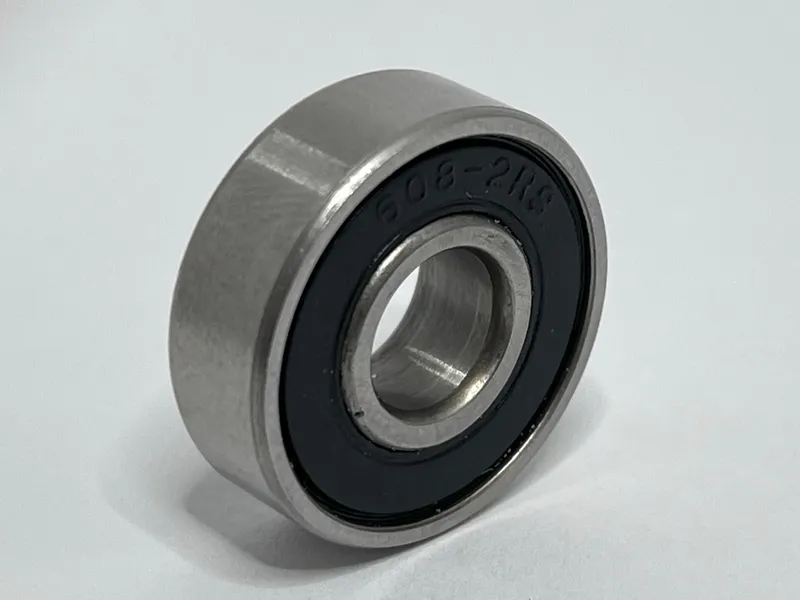

This toy requires one 608 skateboard bearing.

Printing

I've included 4 .3mf files prepared for a Prusa Mini+ (Should be easy to reconfigure for whatever bed size you have). Each of these .3mf files can be printed in a different color to recreate the version I've included in the attached images.

Estimated Print Time: 5 hours if you use the included .3mf files (They will fit on a Prusa Mini+)

Recommended Layer Height: 0.2 mm

Recommended Infill Percentage: 15%

Recommended Material: PLA

No Supports

Assembly

No tools are required for assembly.

Estimated Assembly Time: <5 minutes

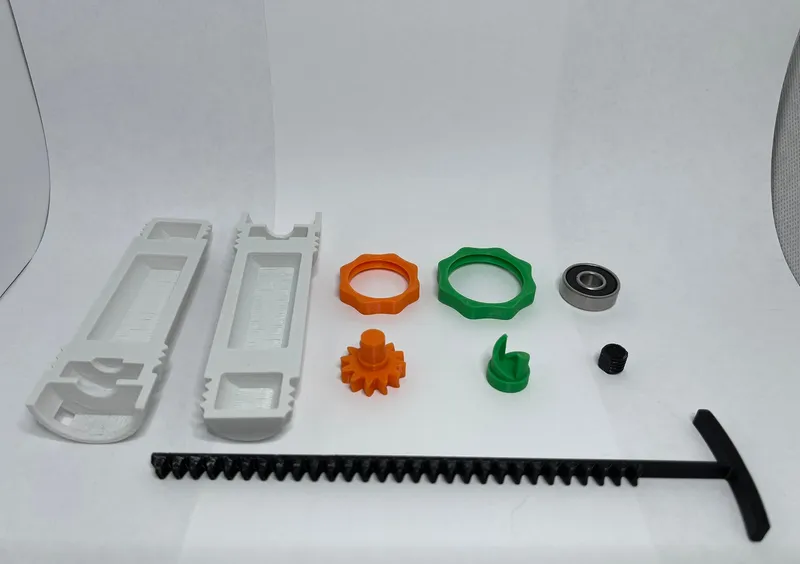

Step 0 - Make sure you have all the parts

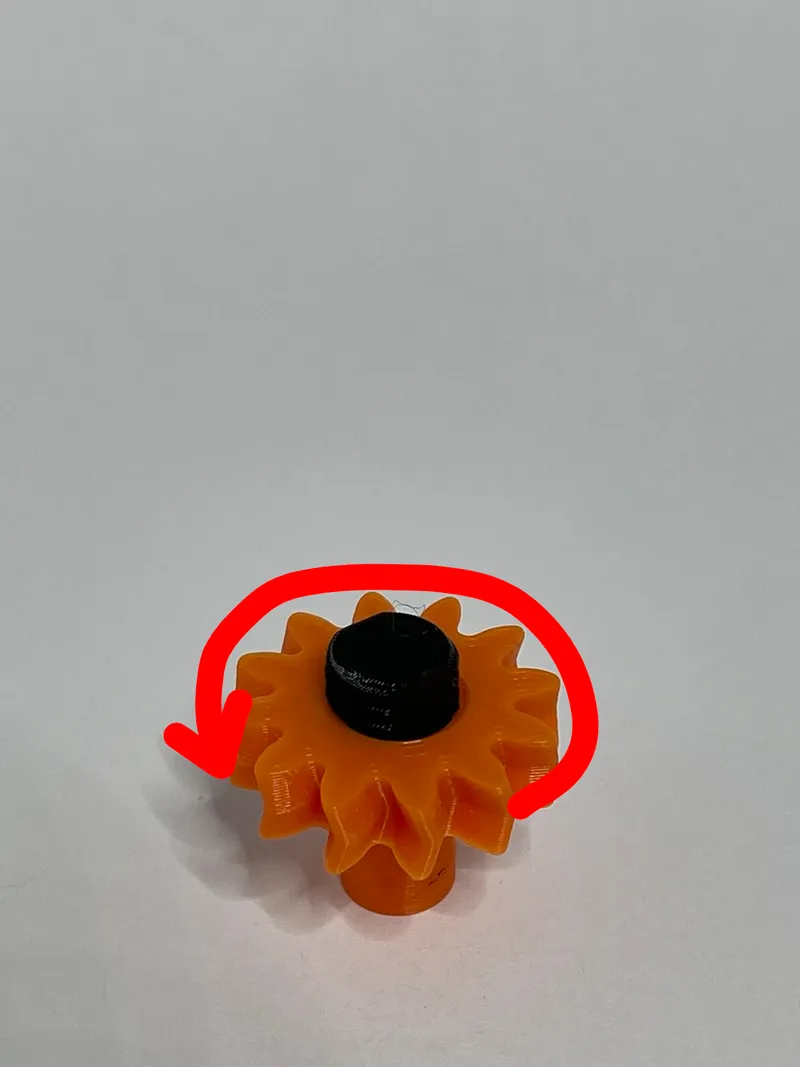

Step 1 - Install the internal thread into the 12-tooth gear

Note: This is a left-handed thread. Turn it counter-clockwise to tighten it

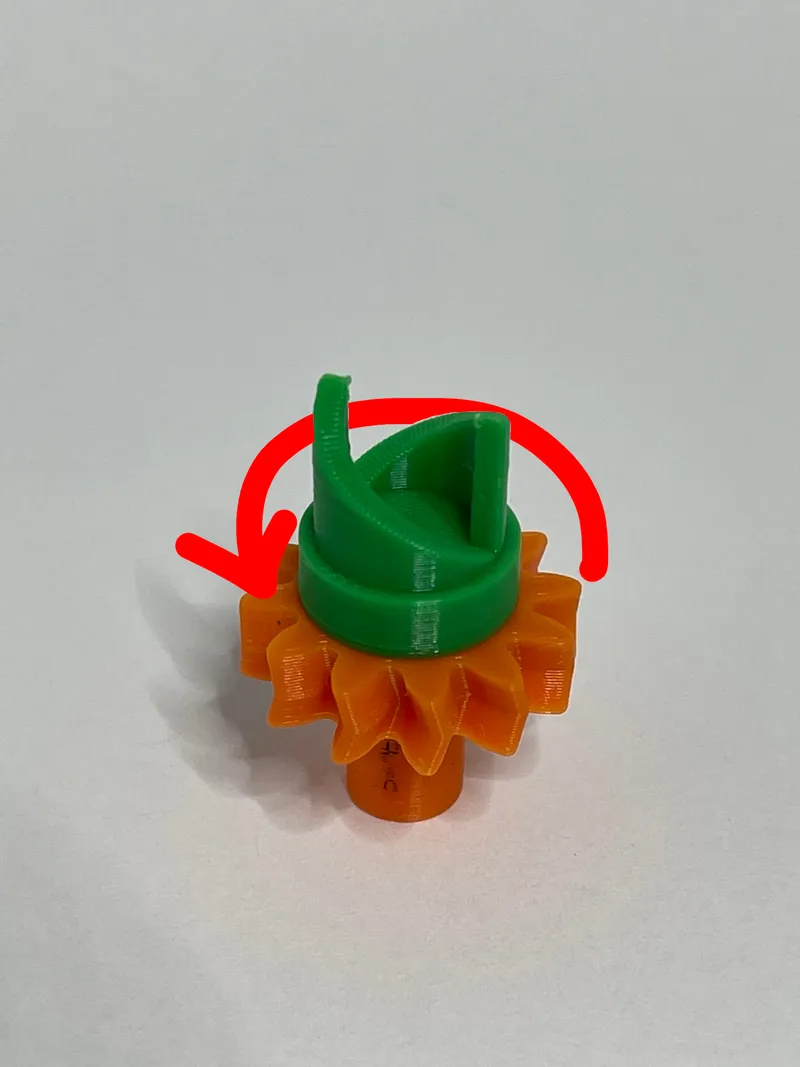

Step 2 - Install the propeller catch onto the gear/internal thread

Note: Hand-tighten only

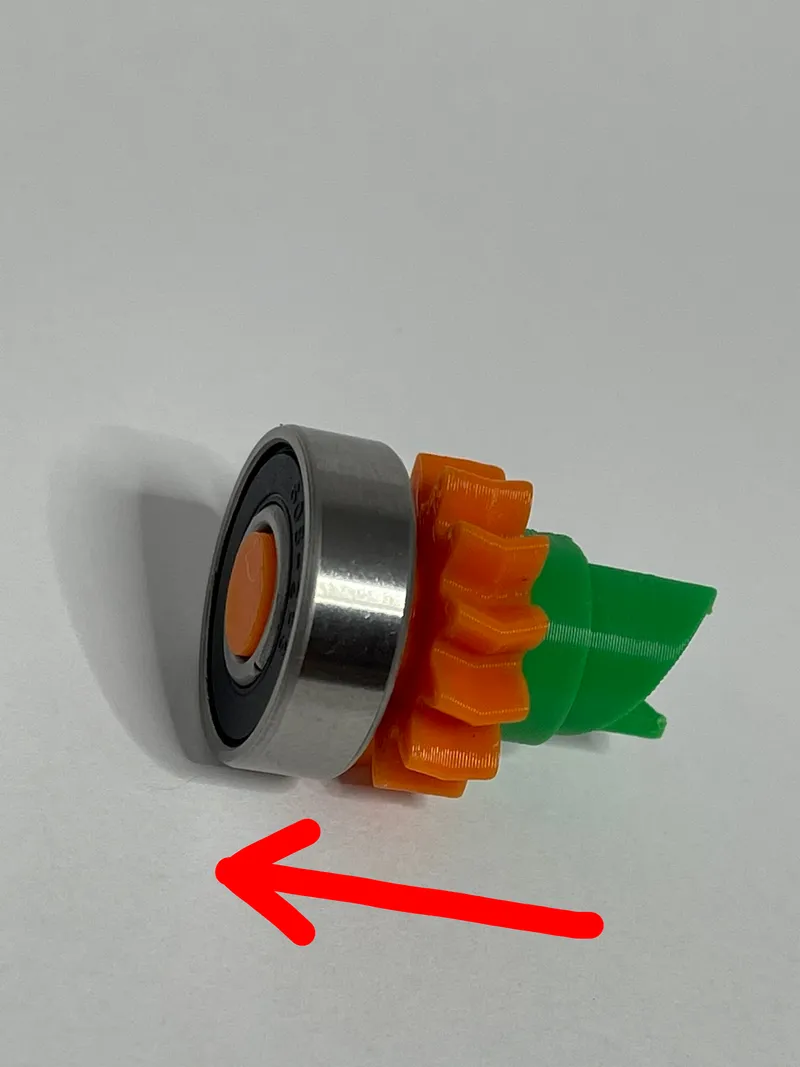

Step 3 - Press the gear/prop catch assembly into the 608 bearing

Step 4 - Seat the bearing assembly into the grip half

Step 5 - Press the other grip half onto the bearing

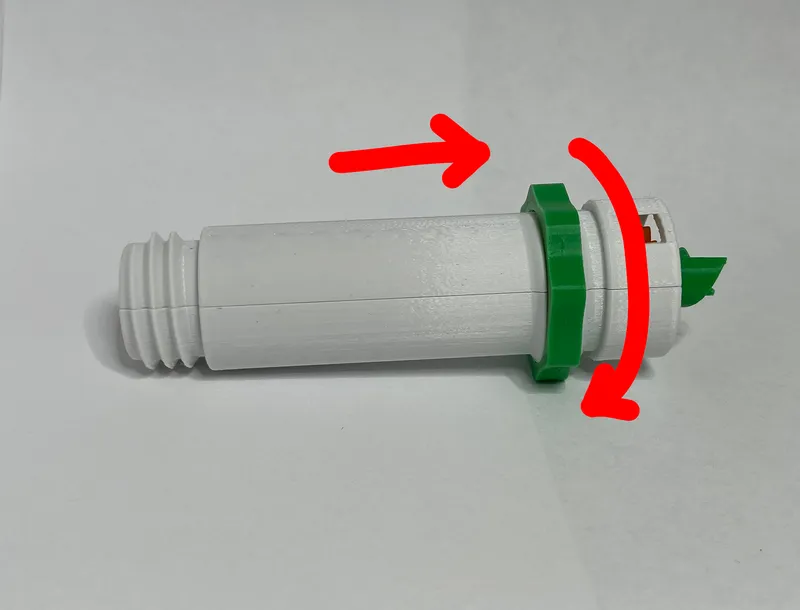

Step 6 - Slide the large nut onto the grip and twist it onto the external threads

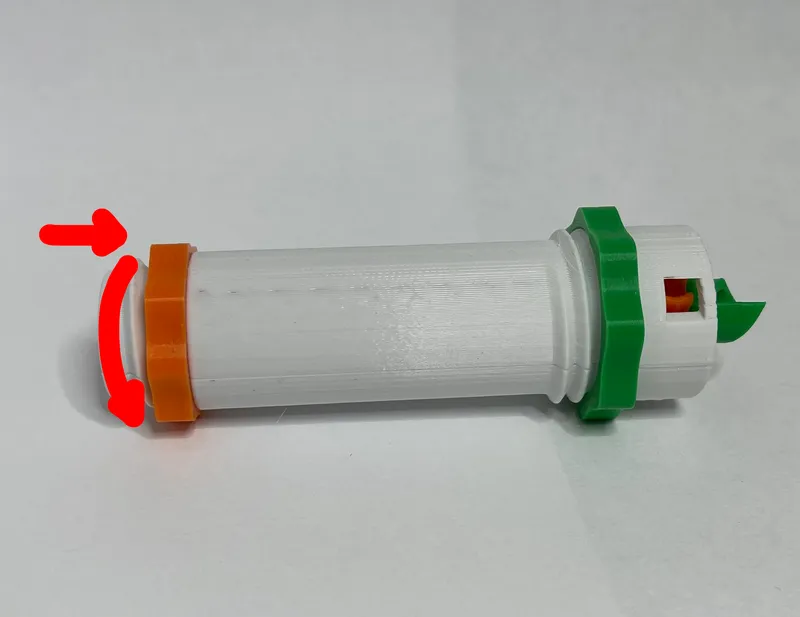

Step 7 - Thread the small nut onto the end of the grip

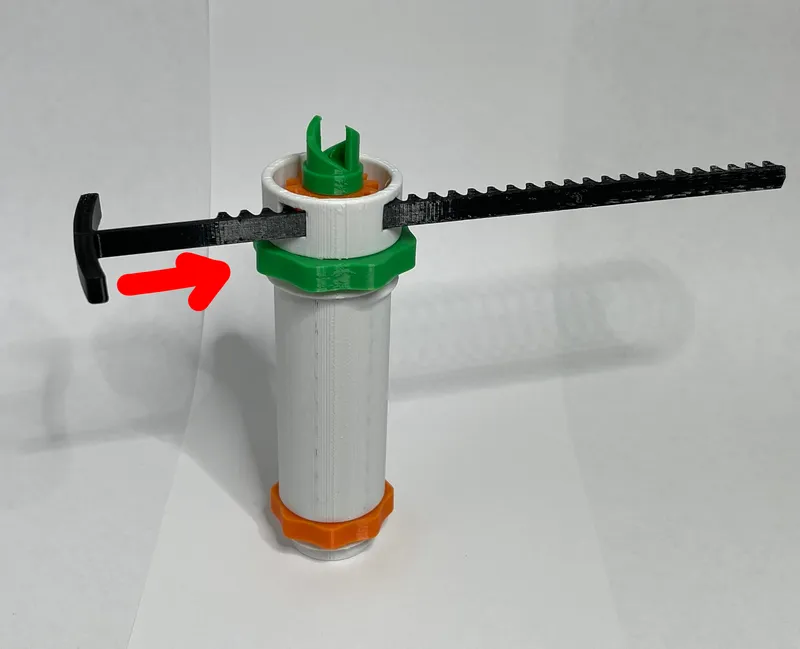

Step 8 - Insert the rip cord into the slot at the top of the grip (It will only go in one way)

Your launcher is ready to use!
