Another toolhead umbilical for Voron 2.4

Another toolhead umbilical for Voron 2.4

@fbeauKmi_520984

Voron 2.4 cable holders

204

917

15

6812

updated February 13, 2024

Makes

Comments

Makes only

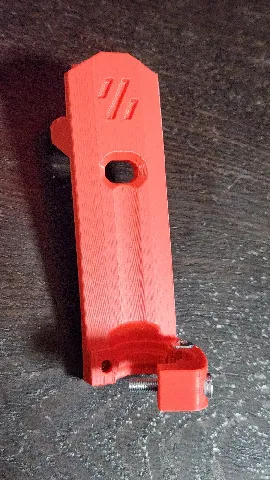

Printed in ABS(FDPlast)

@Patryk_3044614

It is possible to get version for F695RS? Im not big fusion etc guy

@ApostolosMart_372351

I was running the original version and given I changed the exhaust panel with the integrated routing, I also installed the new one. Feels way more stiff and solid then before !

@AFiedler_892852

Thanks for this, it worked out great!! My 3do can+USB cable was a slightly too thick, but it worked out well anyway. I could always make the inside of the TPU insert a bit bigger 👍

@naytmare1_2700795

would this hit the gantry if you move to the highest z ?

@fbeauKmi_520984

@naytmare1_2700795 It wouldn't, the gantry goes behind.

@naytmare1_2700795

@fbeauKmi_520984 thank you!

@fronti_3237739

I remixed it a bit to be usable with my Nevermore Stealthmax. Great system, thank you!

@tearabite_1923731

This is great! And so well done! Thanks for the great model and instructions!

@CraigStaples_1107886

Great parts, easy to print and does a great job routing the Canbus cable.

This is very nice and clean. Works perfectly. Thanks for sharing and creating.

@Shaunlb_263752

Hi @Ingolf_214760
Your Voron look awesome. What bracket did you use for umbilical cord of your A and B motors?

@Shaunlb_263752 thanks. :)
I got the bracket from the TeamFDM forum. It works perfectly.
https://www.teamfdm.com/forums/topic/3789-v24-z-umbilical-v24-z-chain-replacement/#comment-21797

View 2 more comments

@smirrrr_515034

Exactly what i need. Works great. Thanks

Nice design printed to my new Voron 2.4 400
