Picostation mount for SCPH-5502

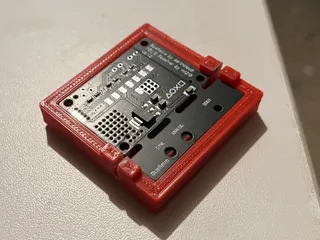

A mount for the first version of the Picostation, with direct access to the SD Card slot, bootsel button and activity led.

The Picostation must use the feet provided, and seat in a slanted way. This allows for the SD Card to be accessible at the top, as well as for the micro USB port to be used with a USB extender.

The light pipe must be printed with clear filament to work.

You will need feet in each of the 3 corners: 2 long feet on the left, 1 short foot on the right.

You will need to slightly and carefully enlarge the mounting holes with a small drill or a small file.

This model has not been tested with other SCPH-5xxx models, but should be compatible nonetheless.

Based on the original work of Collingall, and reworked from the ground up for a better fit.
