X-axis honeycomb Cover for those with camera arm installed

Just for a nicer look.
2
20
1
211
updated June 18, 2023

Description

PDF

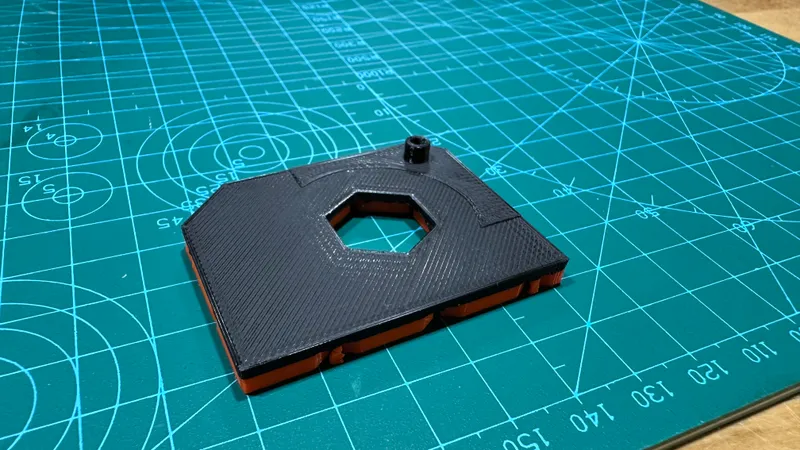

Cover for X-axis just for a nicer look.

The covers by MannixxX (and boogie) did not work for me, because a camera arm is installed in the place where the base of the honeycomb cover should go.

I remixed the cover in two new versions:

  • my first attempt used one 25mm M3 screw going through the  cover and the cameraarm base. This reduced the stability of the cameramen. Discarded this attempt.

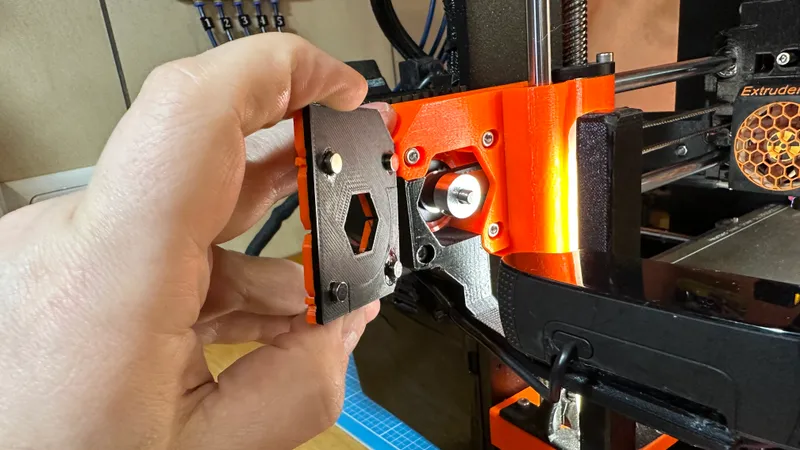

  • the second, improved version uses four magnets (5x2mm, round), that stick to the heads of the four screws. Thus the attachment of the cameraarm remains untouched and the cover stays more flatly on the surface and is easier to remove.

I prefer the second version. I kept the files of version 1 in the download in case someone wants to try that first version.


It can be printed without MMU because there is only one color change from orange to black that can be done by adding a manual filament change after slicing. After some first layers (orange)  just change the filament to the second color (black). No MMU required (though I used it for comfort).

material:

4 magnets 5x2mm round  https://amzn.eu/d/77WJt0G

This is a remix of https://www.printables.com/de/model/65323-prusa-i3-mk3s-x-axis-cover-thicker-honeycomb and https://www.printables.com/de/model/48007-prusa-i3-mk3s-x-axis-cover

Please show me your results and send me fotos of your makes. I like to see how you use this model. If you have ideas for improvement don’t hesitate to send them to me in the comments.   I will try to incorporate your suggestions and will modify the model for special needs if you ask me to do so.
And of course a like ♥ or a rating ⭐ of the design are always welcome.

happy printing, clamikra
