JeegVa44 ErgoZero rev1

JeegVa44 ErgoZero rev1

My second keyboard designed from scratch, this time split.

I wanted a portable split keyboard with a gentle vertical stagger, sixth column available and four thumb keys.

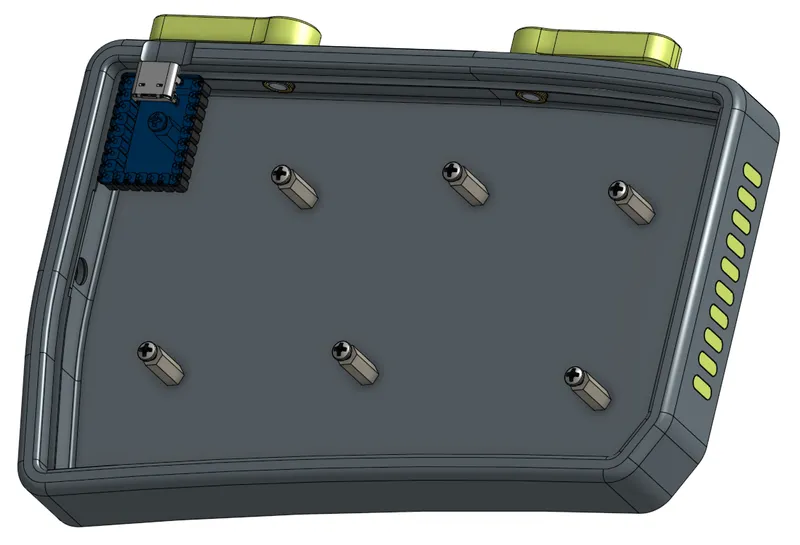

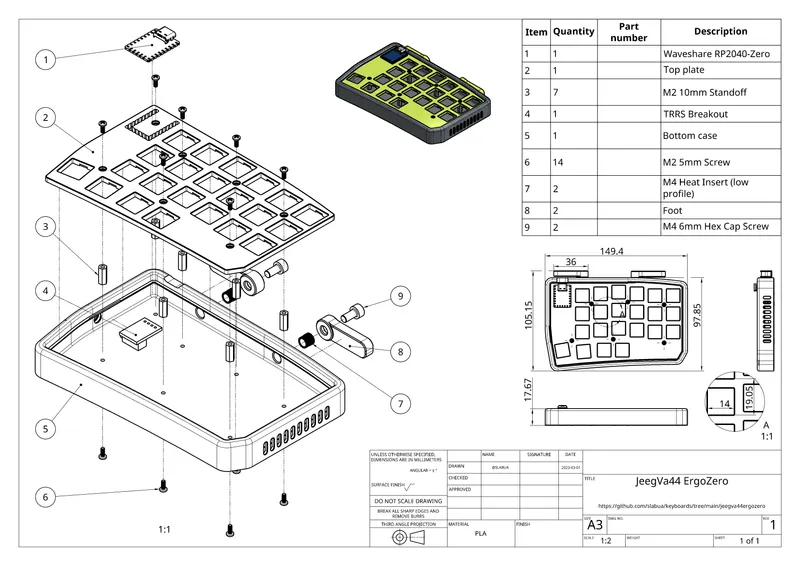

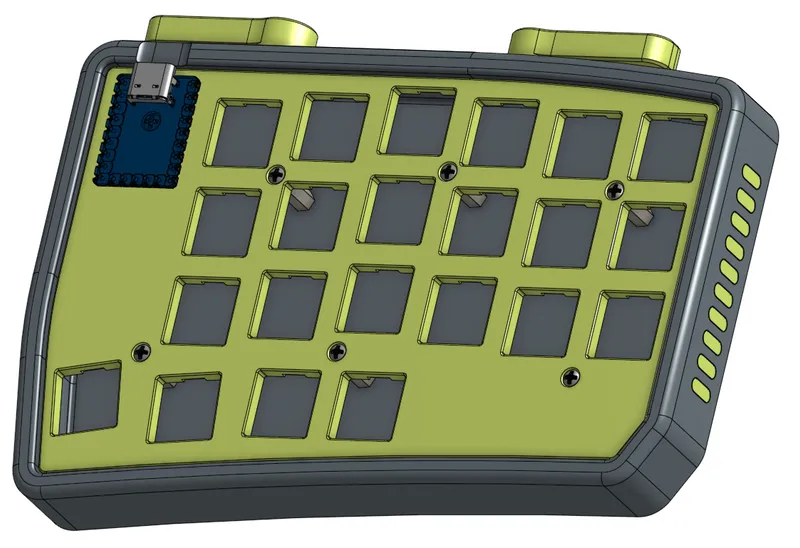

I also wanted to learn more about proper CAD design, so this time I ditched Blender and I designed everything from scratch in Onshape.

Features:

• 2x RP2040 (KMK on Waveshare RP2040-Zero), USB-C port
• 44x switches
• 2x TRRS breakout boards
• 1x TRRS cable
• 28x M2 5mm screws
• 14x M2 10mm stand-offs
• 4x M4 Low profile brass heat inserts
• 4x M4 6~8mm Socket cap head screws
• 46u Round hole female pin header
• 3D printed case, plate, feet

Repository:

https://github.com/slabua/keyboards/tree/main/jeegva44ergozero

Print Settings

Printer Brand:

Creality

Printer:

Ender-3 v2

Rafts:

Doesn't Matter

Supports:

Doesn't Matter

Resolution:

/

Infill:

100

Filament: PLA

/

Notes:

I personally printed it with a 0.6 nozzle but it should not matter.

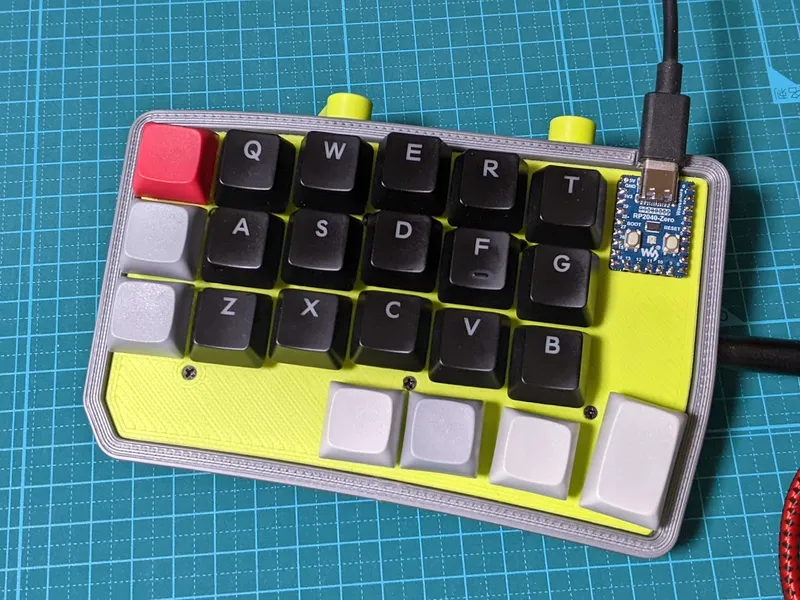

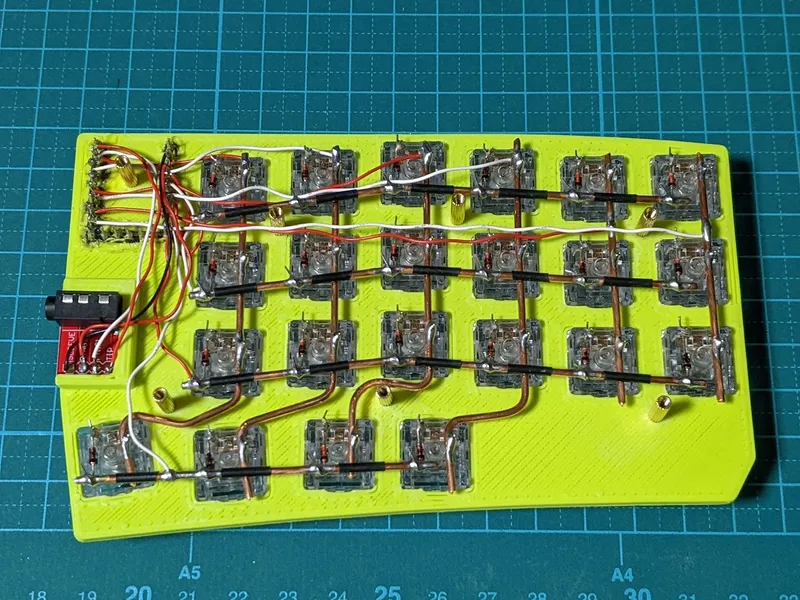

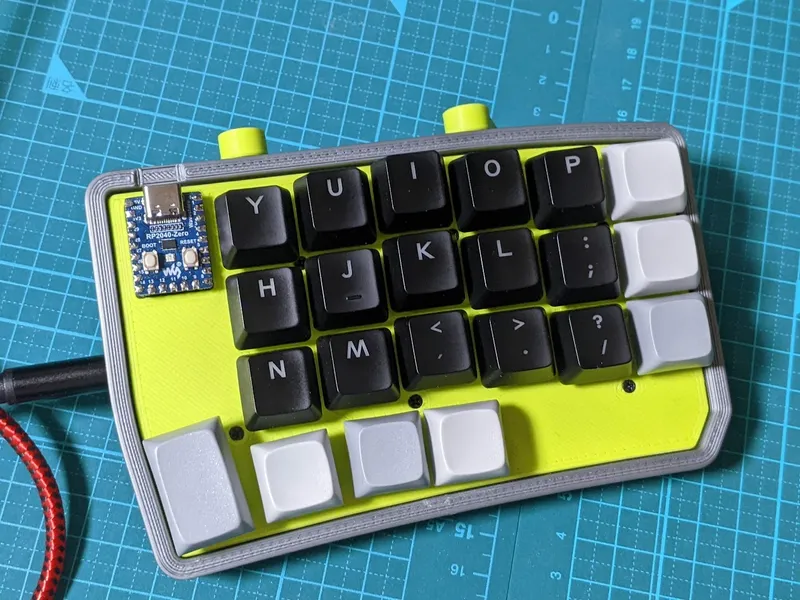

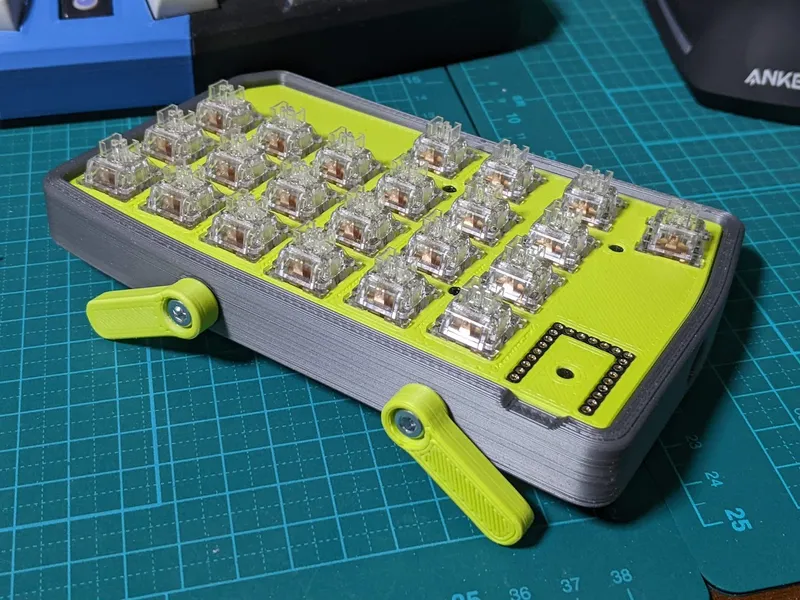

Some Photographs
