Large Gear Clockwork2

NOTE: This model is only published on Printables (here) and my Github repo, licensed under GPLv3 license. Any redistributed work should provide appropriate attribution and copyright notice.

Large Gear Clockwork2

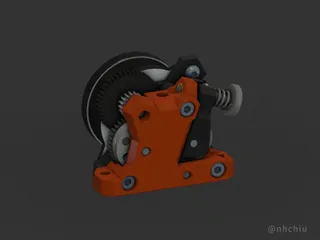

As title, it's basically Voron Clockwork2 utilizing the large extrusion gears of HGX-lite gear kit or Bondtech LGX Lite eXtruder to accomplish high gear ratios and good filament grip.

For toolhead boards: If you are going to use a toolhead board, this would probably be only compatible with the 2-piece version of the Stealthburner toolhead board (mount it directly without the PCB spacer).
The standard version will interfere with the gear below. Check your own toolhead board / CAN board before use!

For BOM and assembly guide, please refer to my Github repo.

Changelog

2024-05-08

• Removed the mockup gears in CAD to avoid confusion.

2023-07-10

• Increased the maximum squish on the filament.
• Tweaked some dimensions here and there.
• Included a variant using LGX-lite gears.

2023-02-20

• Initial release

Voron CW2 form factor extruder with HGX-lite or Bondtech LGX Lite eXtruder gears.
