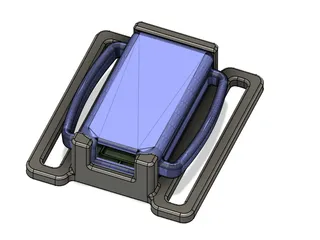

The Rice Crispy Bar Slimevr Case

What was originally helping someone design a case, turned out to be a fairly unique and small case that many may like.

READ COMMENTS FOR UPDATES - IM TOO LAZY TO REWRITE THIS AS OF NOW xD
>>>IMPORTANT<<<
FIRMWARE PRECONFIGGED

Slimevr components page~! ( Link )
The batteries used are 903052 3.7v 1200mAh lipos ^^ found above or HERE
Switches used are CYT1107 or found HERE Any switch should work….. leave a comment or smthing if the one you have doesnt work.
The way to solder the WEMOS D1 MINI & BMI160 (Metal shield ver Usb c or micro usb doesnt matter)

AMONG US.STL is very important, it helps you keep the bmi perfectly flat :p

The way I did this was use d6 and d7 for my i2c lanes, wire to d8 (technically grounded, but with gnd wired to fully gnd and make it work properly) then 3v3.
The 4 perfectly line up to use a segment of those really nice pin things you should not throw away.
 Use this firmware if you arent comfortable setting stuff or if unsure HERE

Still configure imu rotation, bat ext or int as normal.

TP4056 can be either the USB - C or Micro - USB variant.

Included fusion360 file,
Parameters for

• Width of strap loop
• Height/Thickness of strap loop
• Tolerances for the Lid

Also included STEP files so you can edit them yourself, no stinky stl garbo.

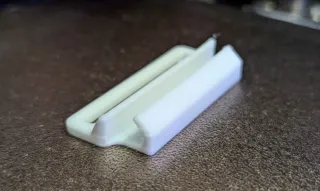

0.2mm layer height (or lower ig), not much else to say. Switch holder thing may need supports tho… unless your printer can bridge well and has decent bed adhesion

----------------------------------------------------------------------------------------------------------------
