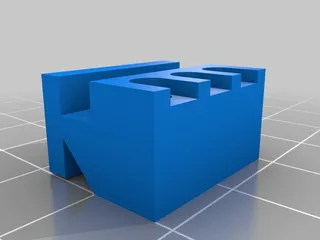

Small Storage System For MP Select

This is a simple change to the 3x2 screw box bottom of this project: http://www.thingiverse.com/thing:1493275

It's feet have been modified to fit the print onto the MP Select Mini / M200's bed. It's storage space has not been modified so it'll still fit with the other pieces.

Print Settings

Printer:

MP Select Mini

Rafts:

No

Supports:

No

Resolution:

.175

Infill:

30

Notes:

To get this to slice in CURA 2.x, you'll need to set the bed size larger than the stated specs. (The MP Select Mini's operable bed size is actually larger than advertised :) ). This model is within a millimeter of the actual operable size.

In Machine Settings -> Printer Settings: x=125, y=125

In Machine Settings -> Printhead Settings:: x max=130, y max=130

For the General Settings:

Shell -> Wall & Top/Bottom Thickness = 1mm

Build Plate Adhesion -> Build Plate Adhesion Type = Brim

Build Plate Adhesion -> Brim Width = 0.0mm

Special Modes -> Surface Mode = Both

And that should get it to slice correctly and print well.
