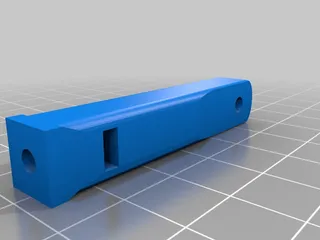

Arducam Raspberry camera enclosure

This is 4AM Engineering's bracket for Arducam raspberry pi camera modules modified to fit Bogdanko's excellent Prusa camera mount. I designed it to fit my Arducam B0152 (8MP noIR fisheye) module, which is fitted to my printer's Y axis.

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK3

Rafts:

No

Supports:

No

Resolution:

0.20mm or lower

Infill:

20%

Filament: Amazonbasics PETG black

Notes:

Use at least 2 perimeters when printing, for strength.
The backside is really just there for aesthetics. You can get away without it but I didn't like screws touching the camera's PCB.

Avoid using translucent filament, as the camera LED will bleed through it.

Post-Printing

Screws

Use M3 screws and nuts to fasten the backside or just the camera to the front.

How I Designed This

Autodesk TinkerCAD

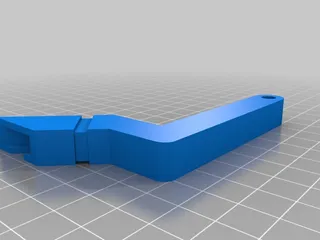

I just elevated the original Arducam bracket a little so its height would correspond with the arms for Bogdanko's camera enclosure, then added the arms for the latter.
