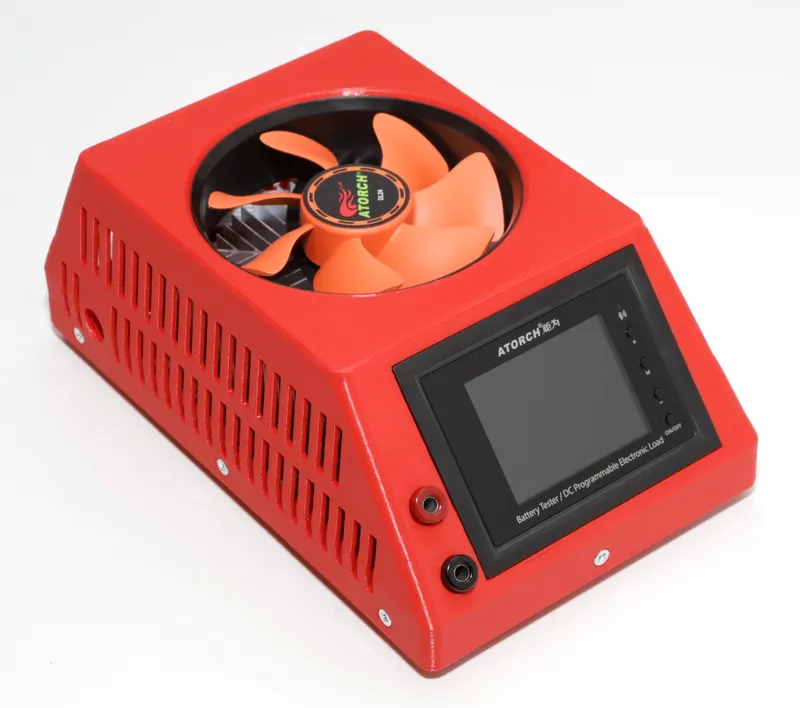

Atorch DL24M Case

A case for the Atorch DL24 with external display (DL24M).

Support my work

For non-Prusa parts and filaments, check out 3DJake (International, UK, Germany, France).
I'll get a small cut of any order you fulfil using these links (at no additional cost for you 😉).

If you want to support my work directly, you can buy me a coffee.

If you want to order a Prusa printer and earn some Prusameters (I will also get some), you can use my referral code "@Whity" at checkout or click one of the following links
(the code only works for the first order of each printer model):
| CORE One | CORE One Kit | MK4 | MK4 Kit | MINI+ | MINI+ Kit | XL | SL1S | SL1S+CW1S |

Also check out my other models.

Printing

I highly recommend to print it in a material which is more temperature resistant than PLA. I used PETG and had no problems so far.

Additional parts

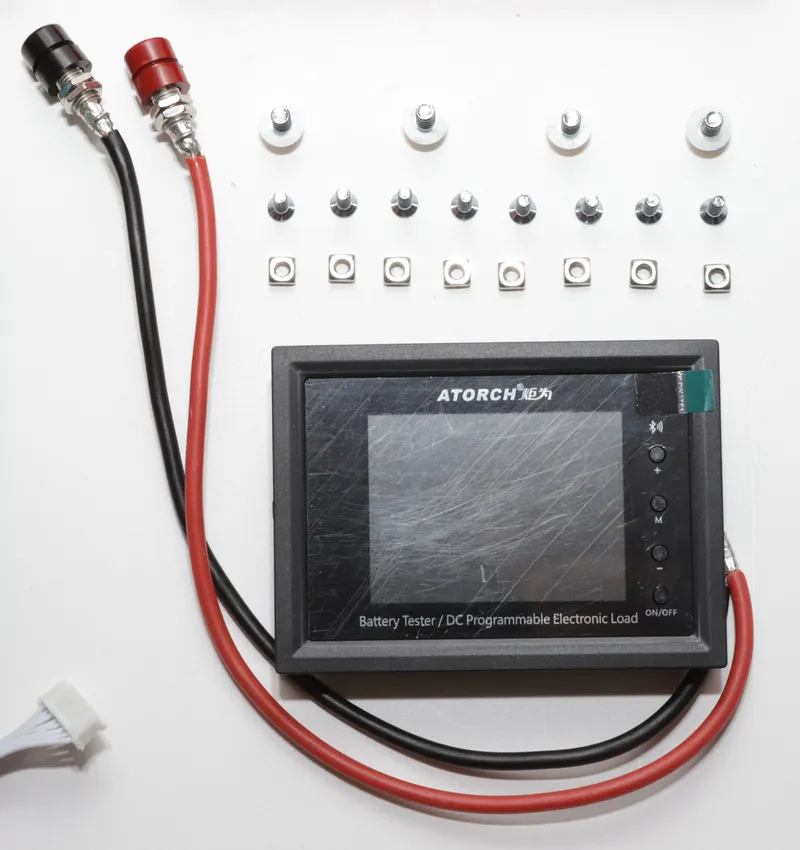

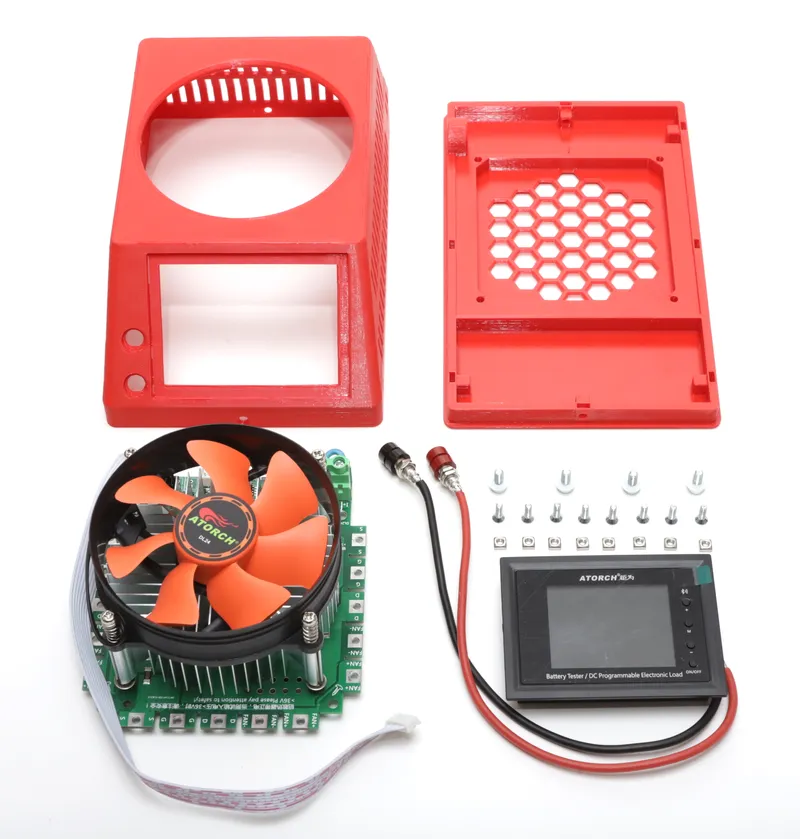

You need these additional parts:

• 2 x 4mm banana plug socket (1 x red / 1 x black) (*1)
• Some wire (which can handle the load)
• 4 x M4x8 screw
• 4 x M4 plastic washer
• 8 x M3x10 countersink screw
• 8 x M3 square nuts
• 4 x Rubber feet
• (1 x 12V Power supply)

Notes:

• *1: Unfortunately I have no link for the banana plug sockets I used, because I had them left from earlier projects. You may have to adjust the holes to match the ones you have (Fusion 360 file is available for download in the files section)

Assembly

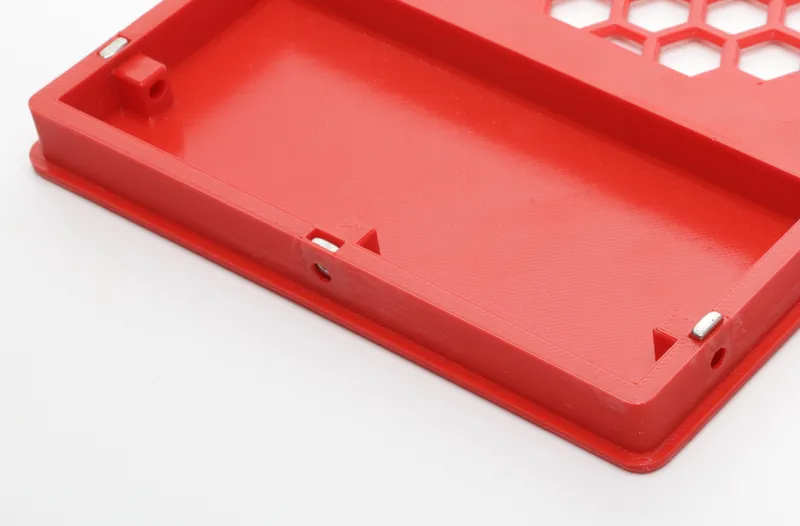

Insert the M3 square nuts:

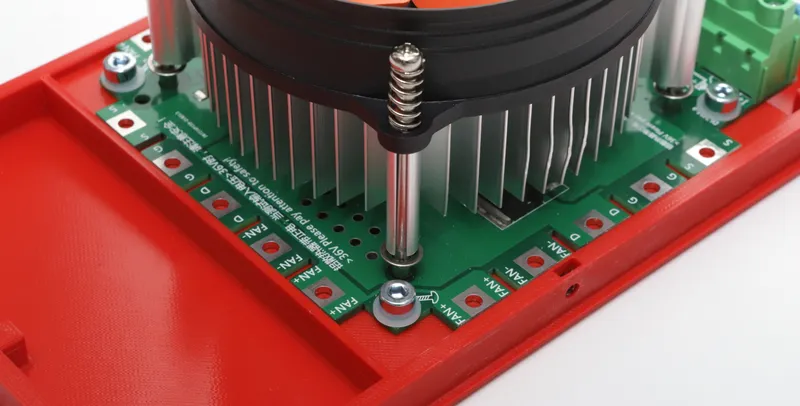

Screw on the main PCB with the M4 screws and plastic washers:

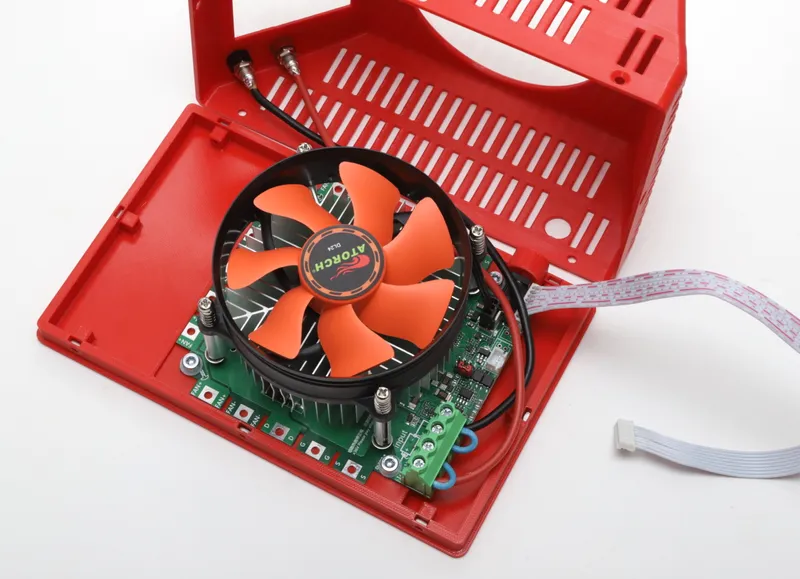

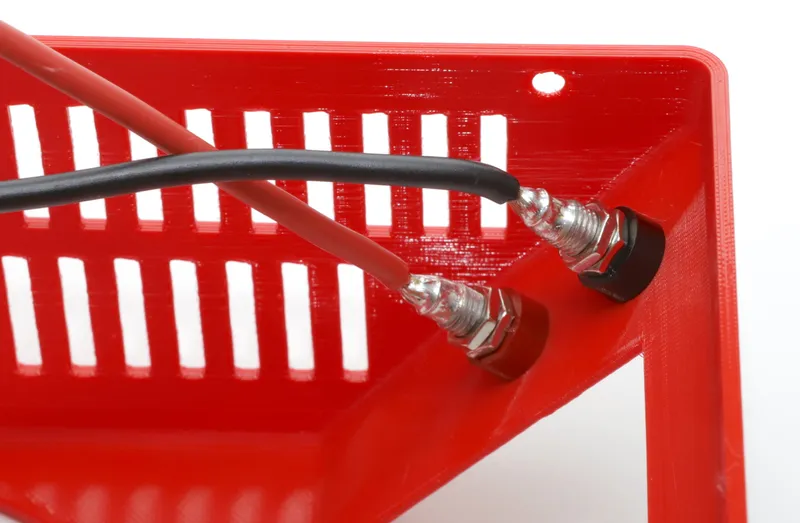

Mount the banana plug sockets:

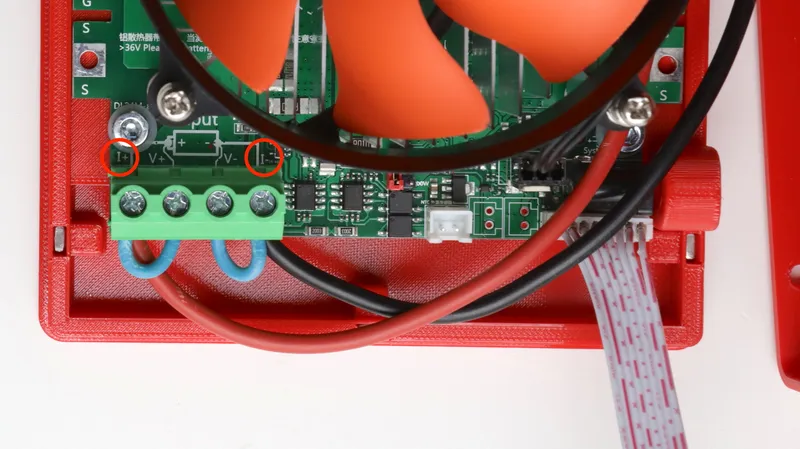

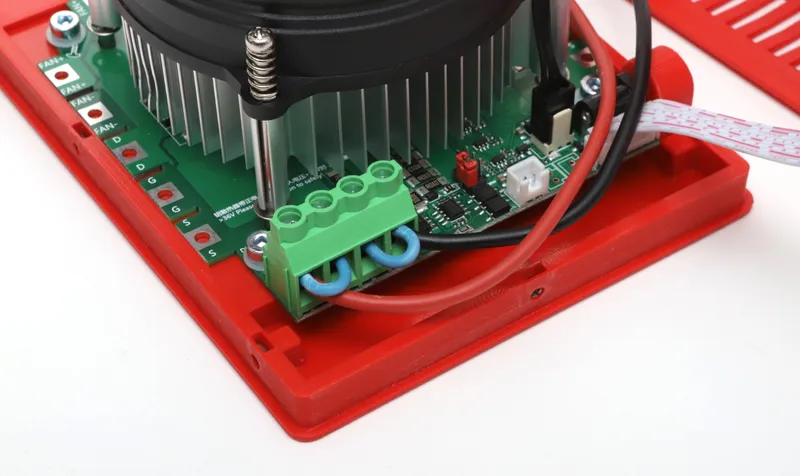

It's important to connect it as show in the manual:

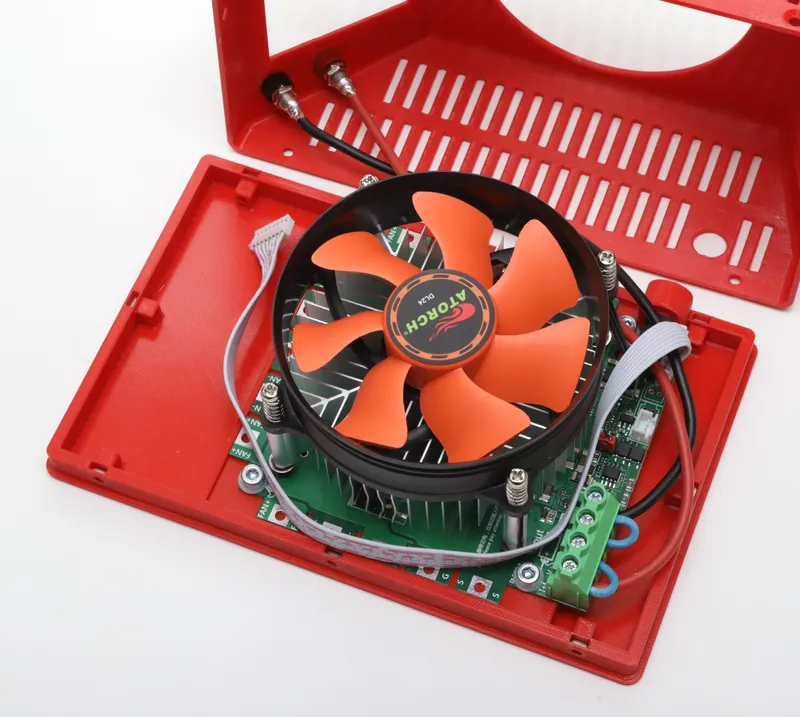

Route the ribbon cable to the front like this:

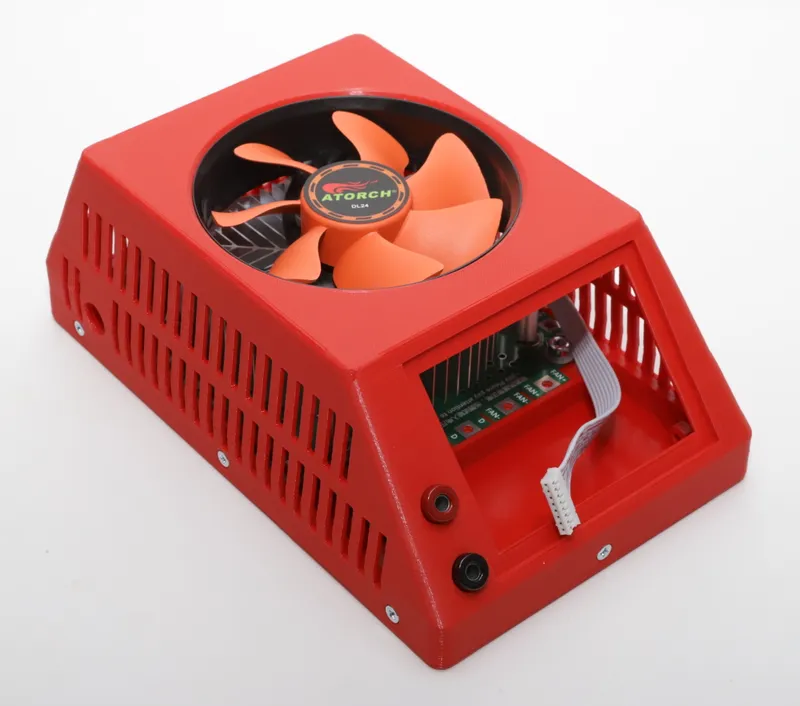

Put on the top part of the case:

Connect and insert the display with self adhesive tape:

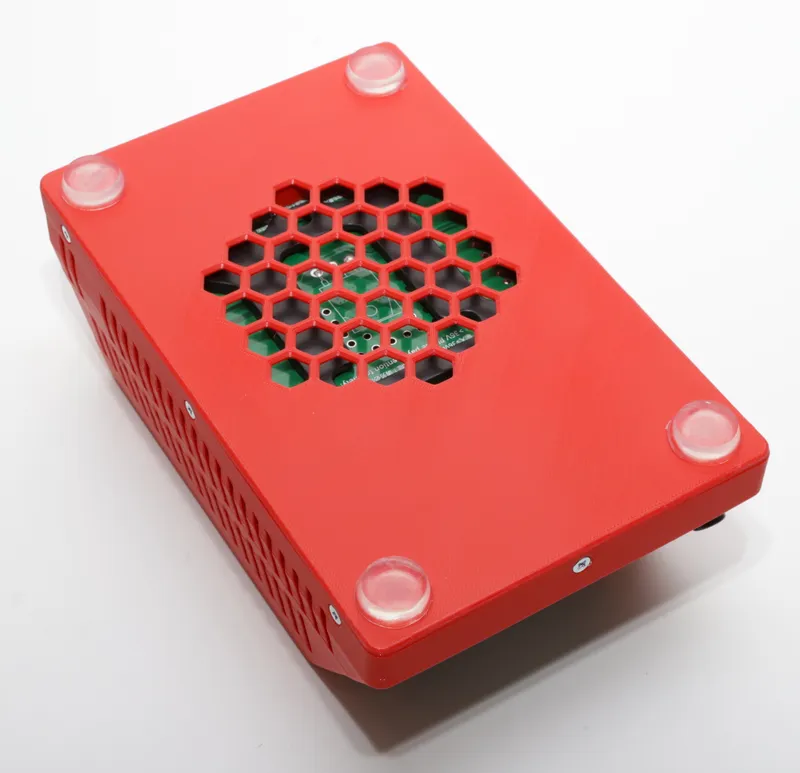

Add the rubber feet:
