LUCKY 13 / MINI 13 Flat Pack Accessory Box

This mini box is designed to store up to 9 hands for LUCKY 13 (or MINI 13) and accessories.
5h 5m
1× print file
0.20 mm
0.40 mm
51.00 g
575
1815
6
12 k
updated April 12, 2023

Description

PDF

This remix of my original Flat Pack Mini Box is customizable within PrusaSlicer and has the following features:

  1. Stores 9 Lucky 13 hands in sockets
  2. UPDATE: alternate version for 9 Mini 13 hands on ball posts
  3. Stores two original Lucky 13 pistols
  4. Stores two Sci-fi Pack pistols
  5. Stores one Sci-fi Pack knife
  6. Stores the Sci-fi Pack drum-clip gun and clip
  7. Print-in-place
  8. Fully-encased or snap-together hinge options
  9. Customizable accessory placement

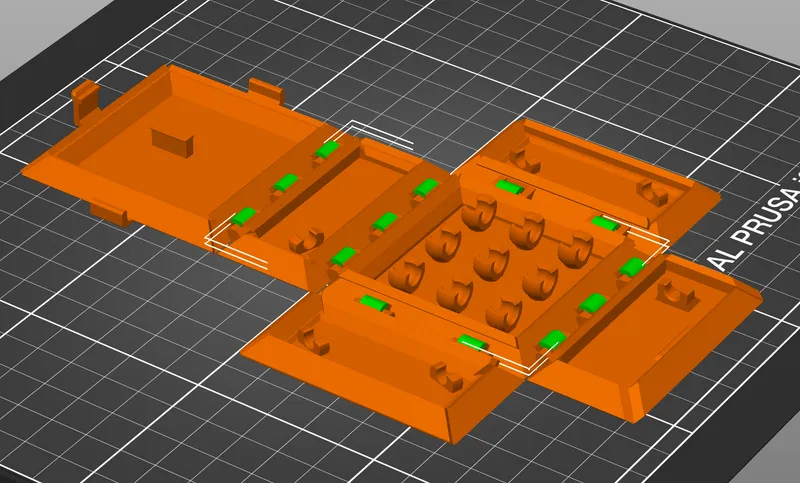

Customizing the Hinge Style

The .3mf file is configured such that you can print this with fully-enclosed hinges, or remove the “Cap” objects within prusaslicer, allowing the sides to be printed independently and snapped together afterwards. This allows for printing on smaller bed sizes, and/or changing the box's accessory options later.

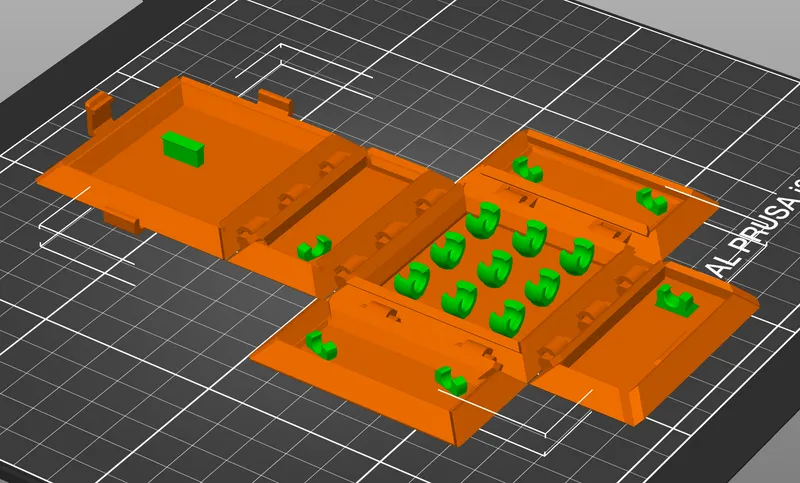

Customizable Accessory Sockets

The .3mf file also has each hand and accessory socket as a separate object such that they can be moved/removed.



Updates!

March 24th 2023: now included is a version for MINI 13! See the “MINI 13" .3mf file in Downloads.



Printing

PETG is the recommended filament. I've had good results with Prusament PETG using the standard 0.20mm QUALITY settings in PrusaSlicer (0.4mm nozzle).

Tags



Model origin

The author remixed this model.

License
